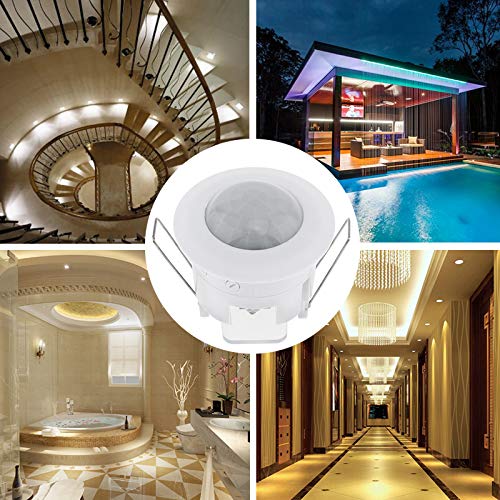

110-240V Infrared Motion Sensor Switch, Recessed Fall PIR Ceiling Motion Sensor Detector Light Switch Adjustable 360 Degree

Installation:

• Turn off the power.

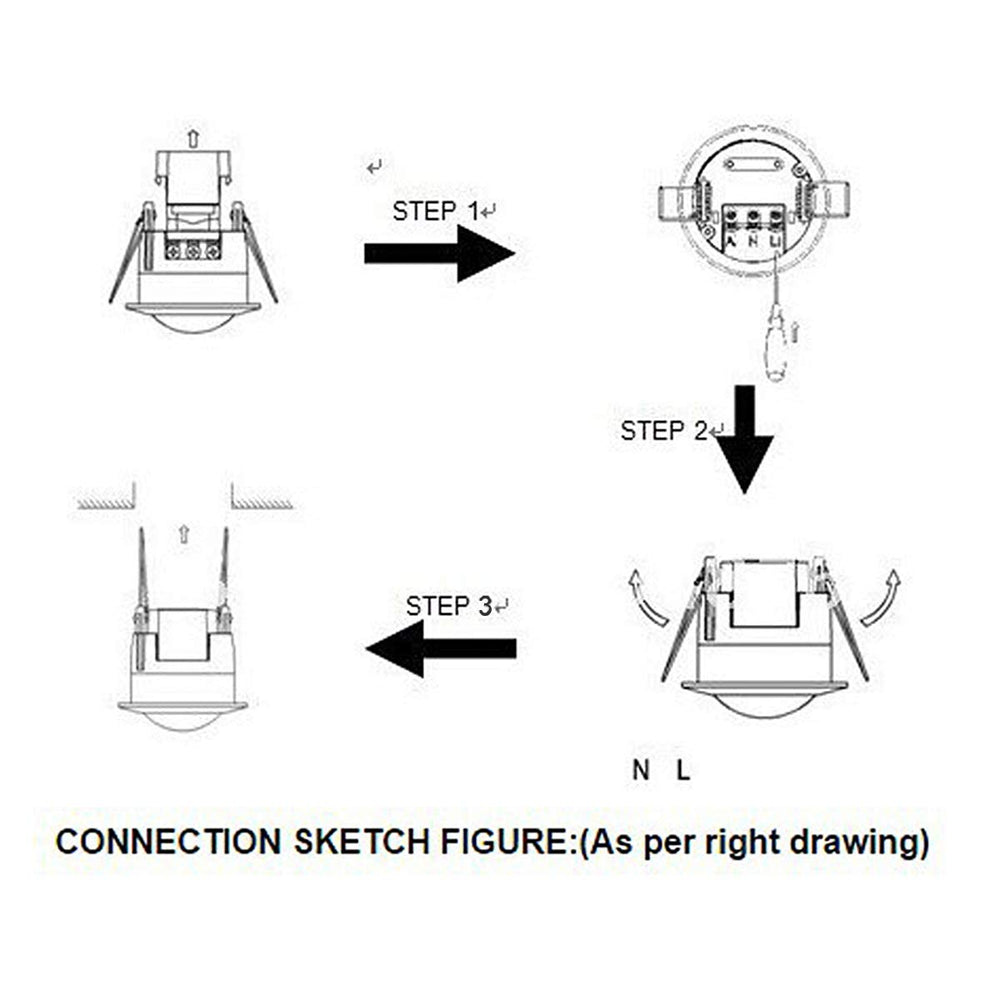

• Moving the transparent vinyl cover what is in the bottom of the sensor.

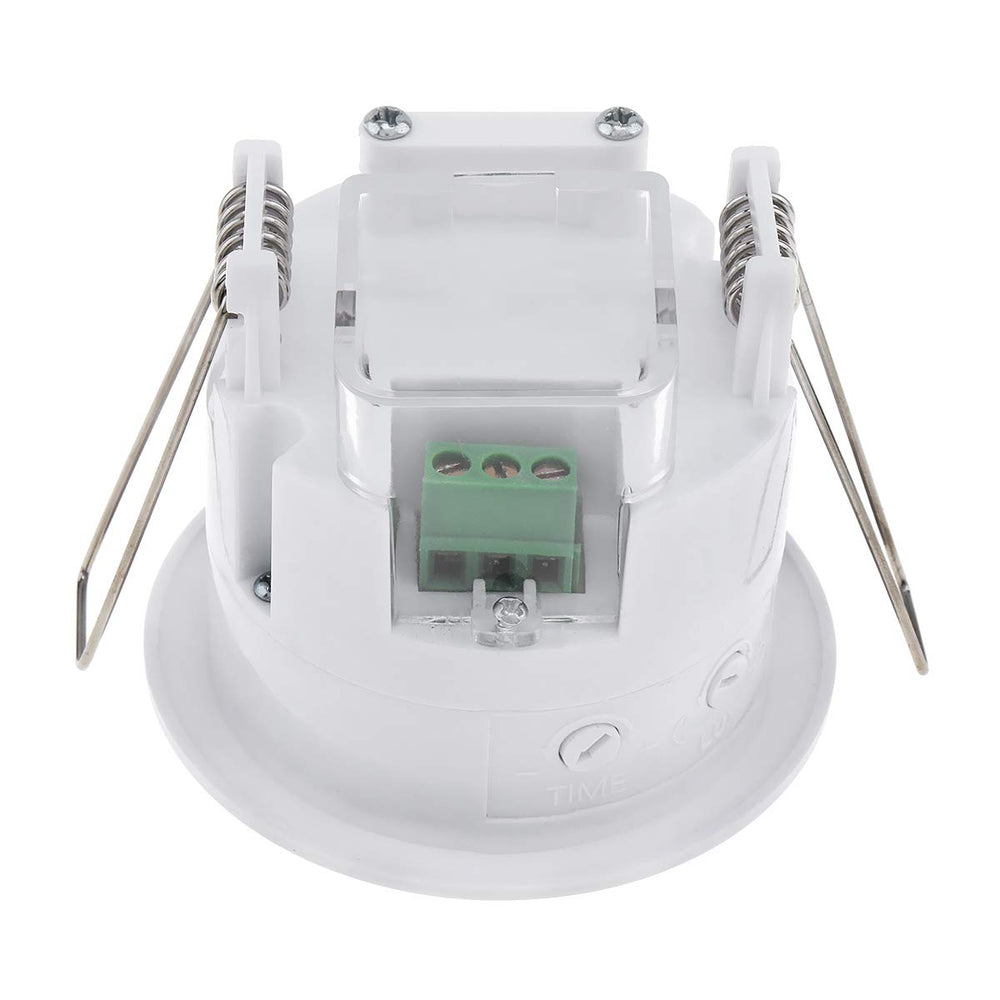

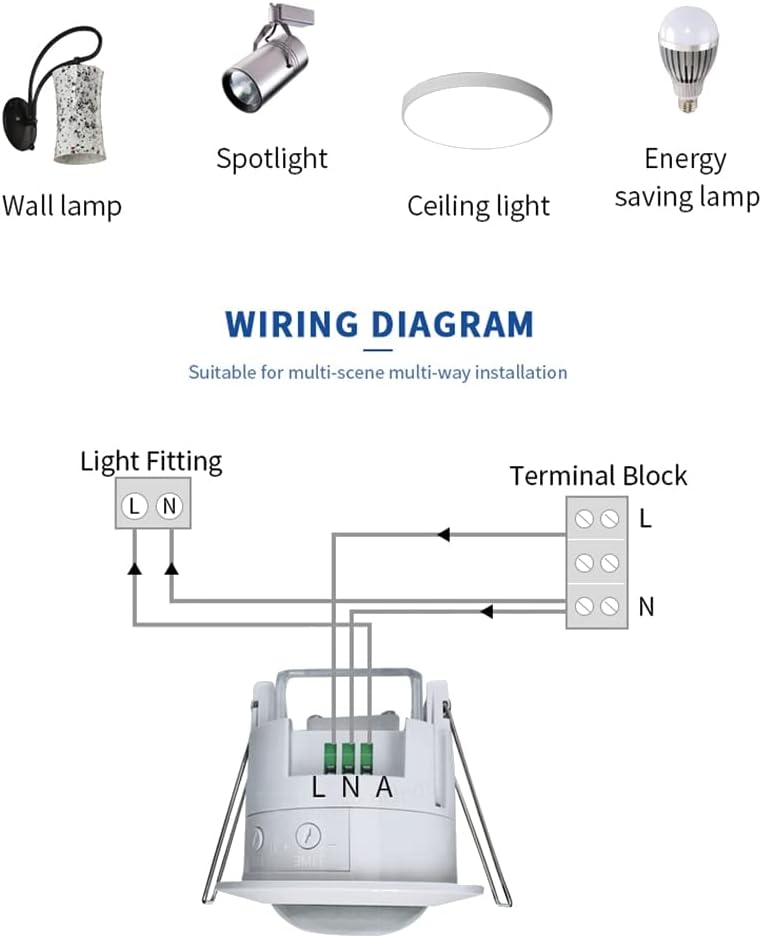

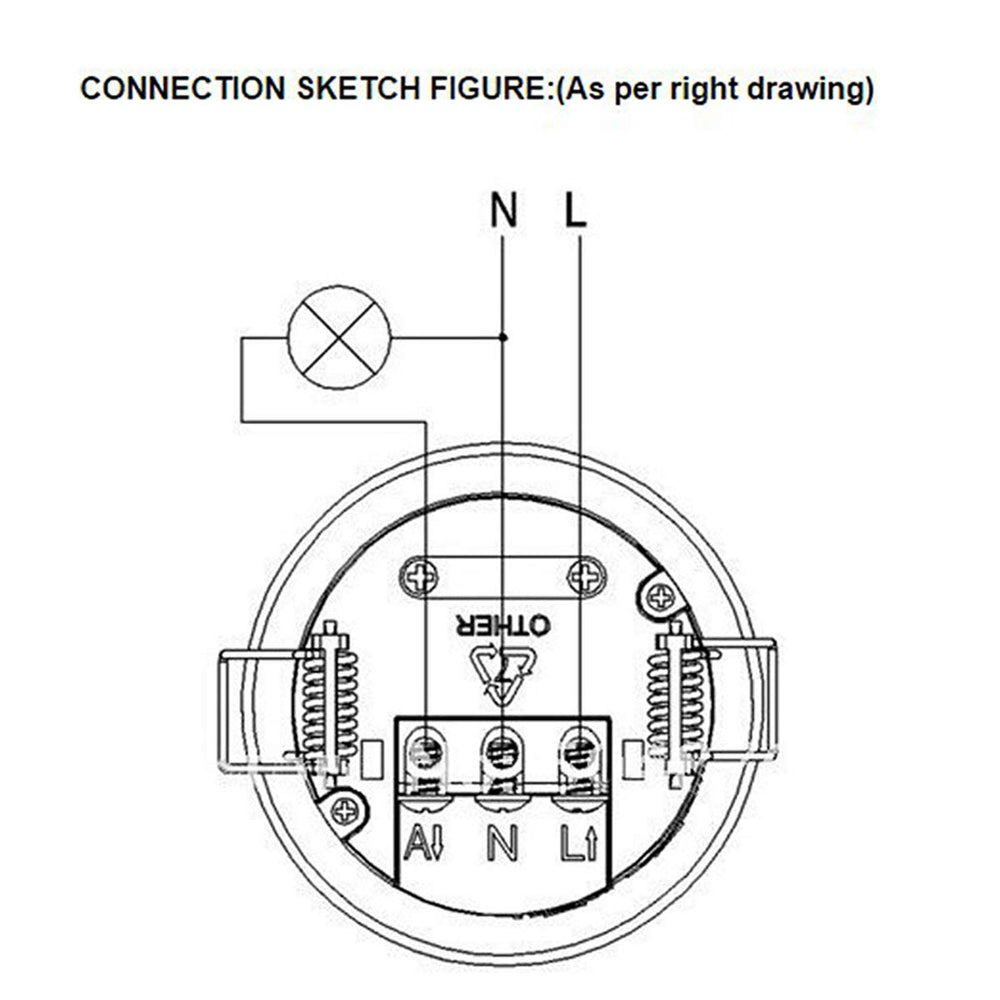

• Loosing the screws in the connection terminal, connecting the power and rated load to connection terminal of sensor according to connection sketch map.
• Tighten the screws; put the transparent vinyl cover into the original station.

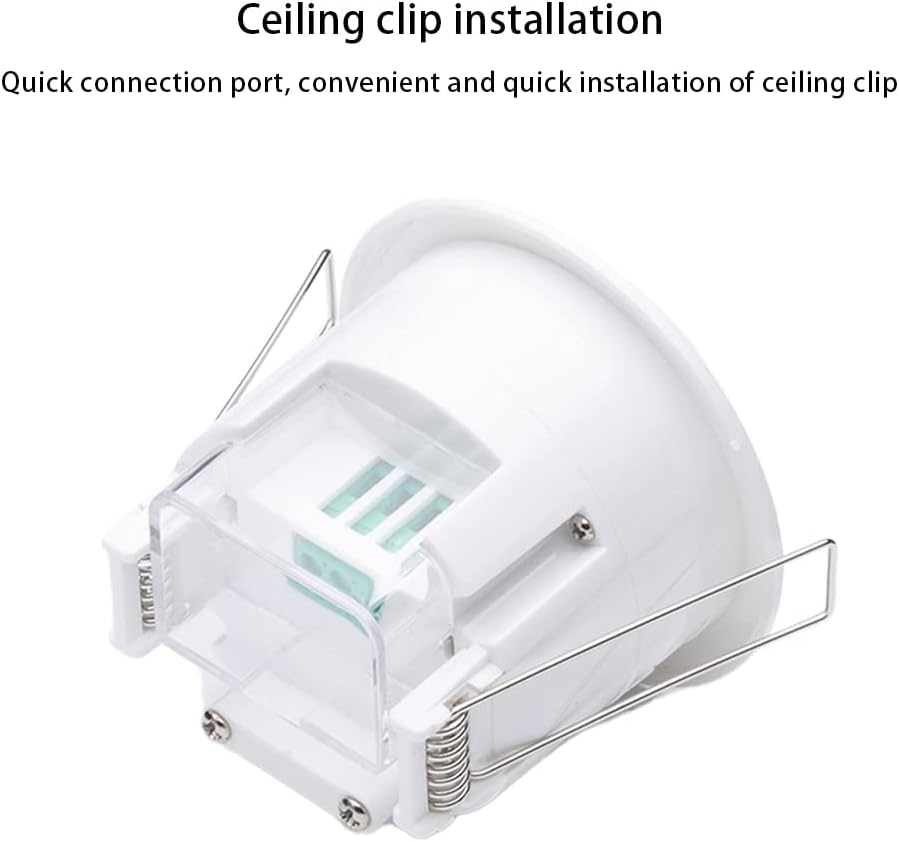

• Folding the metal spring of the sensor to upwards, until they are in "I" position with sensor, then put the sensor into the hole or installation box what is in the ceiling, the size is similar with item. Releasing the spring, the sensor will be set in this installation position.
• After finishing installing, the sensor could be connected the power and it.

Test:

• Turn the TIME knob anti-clockwise on the minimum, turn the LUX knob clockwise on the maximum (sun).
• Turn on the power, the sensor will be electrify and warm-up,30 sec later, the item will be entered into working estate.
• 5~10 seconds after the light goes out for the first time and then sensing, the load should be worked.
• Turn LUX knob anti-clockwise on the minimum (moon). The inductor load should not work after load stop working. If youcover the detection window with the opaque objects (towel etc), the load work .under no induction signal condition, the load should stop working within 5-15sec.

Note:

• When testing in daylight, please turn LUX knob to (SUN) position, otherwise the sensor lamp could not work!

Details:

• Should be installed by electrician or experienced man.
• Avoid installing it on the unrest objects.
• There shouldn't be hindrance and moving object in front of the detection window effecting detection.
• Avoid installing it near air temperature alteration zones such as air condition, central heating, etc.
• Considering your safety, please don't open the cover when you find the hitch after installation.

Some Problem & Solvedway: The load don't work:

• Please check the power and load connect is correct.
• Check if the load is good.
• Check if the working light corresponds to the ambient light.

The sensitivity is poor:

• Please check if there is hinder in front of the detection window to effect receiving the signals.
• Please check if the ambient temperature is too high.
• Please check if the signals source is in the detection fields.
• Please check if the installation height corresponds to the height showed in the instruction.

The sensor can't shut the load automatically:

• Check if there are continual signals in the detection fields.
• Check if the time delay is set to the longest.
• Check if the power corresponds to the instruction.
• Check if the temperature change obviously nears the sensor, such as air condition orcentral heating etc.
