Real Instruments HTC VC-3165 High-Precision Digital Frequency Counter with Dual Channel Input, Wide Frequency Range from 0.01 Hz to 2.4 GHz, Adjustable Gate Time, 8-Digit LED Display, and Stable Operation for Electronic Testing and Laboratory Applications
Real Instruments HTC VC-3165 High-Precision Digital Frequency Counter with Dual Channel Input, Wide Frequency Range from 0.01 Hz to 2.4 GHz, Adjustable Gate Time, 8-Digit LED Display, and Stable Operation for Electronic Testing and Laboratory Applications

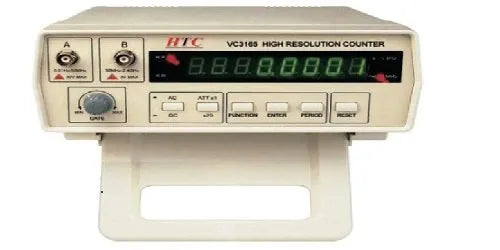

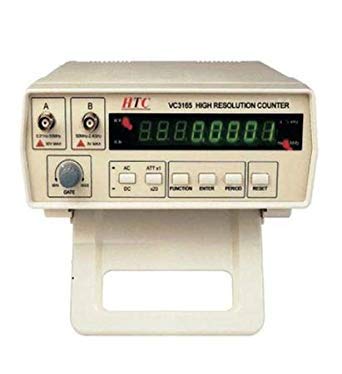

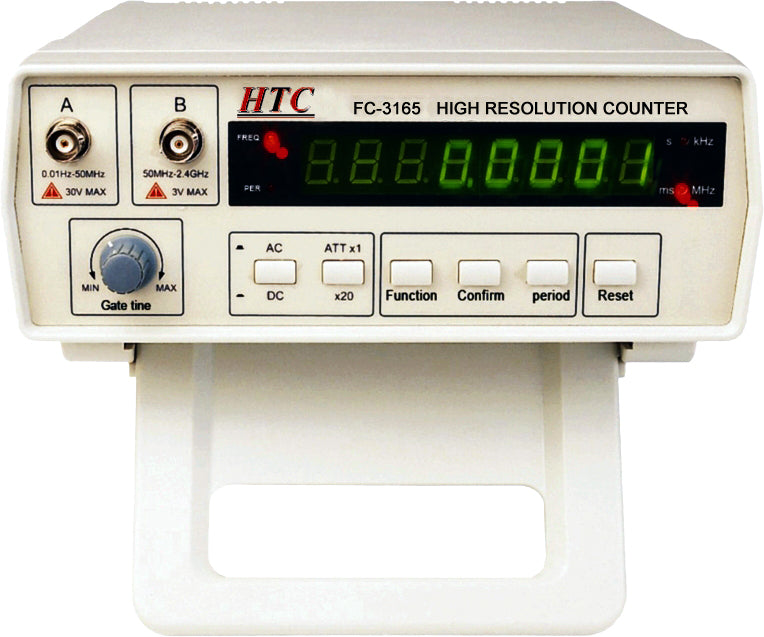

The HTC VC-3165 Frequency Counter is a precision instrument designed to measure frequencies across a broad spectrum, making it suitable for various electronic testing and measurement applications.
Key Specifications:
-
Frequency Range:
- Channel A: 40 MHz to 2.4 GHz
- Channel B: 0.01 Hz to 40 MHz
-
Accuracy: Time base error × Frequency + 1 digit
-
Cyclic Measurement Range: 0.5 ns to 10 s
-
Attenuation: 20 dB
-
Input Impedance:
- Channel A: 50 Ω
- Channel B: 1 MΩ (<35 pF)
-
Sensitivity:
- Channel A: 50 mVrms
- Channel B: 30 mVrms
-
Maximum Input Voltage:
- Channel A: 3 V
- Channel B: 30 V
-
Time Gate: Adjustable from 10 ms to 10 s
-
Display: 8-digit green LED
-
Power Supply: AC 220V, ±10%
-
Dimensions: 270 mm (H) x 215 mm (W) x 100 mm (D)
Features:
-
Dual Channel Input: Allows measurement across two channels, enhancing versatility.
-
High Stability and Selective Range: Ensures precise frequency measurements over a wide range.
-
Operation Mode Memory: Retains settings for consistent operation.
-
Adjustable Range and Gate Time: Provides flexibility in measurement parameters.
Applications:
-
Electronic Testing: Ideal for measuring frequencies in various electronic circuits and systems.
-
Communication Systems: Useful in testing and maintaining radio and telecommunications equipment.
-
Laboratory Research: Suitable for academic and industrial research requiring precise frequency measurements.
