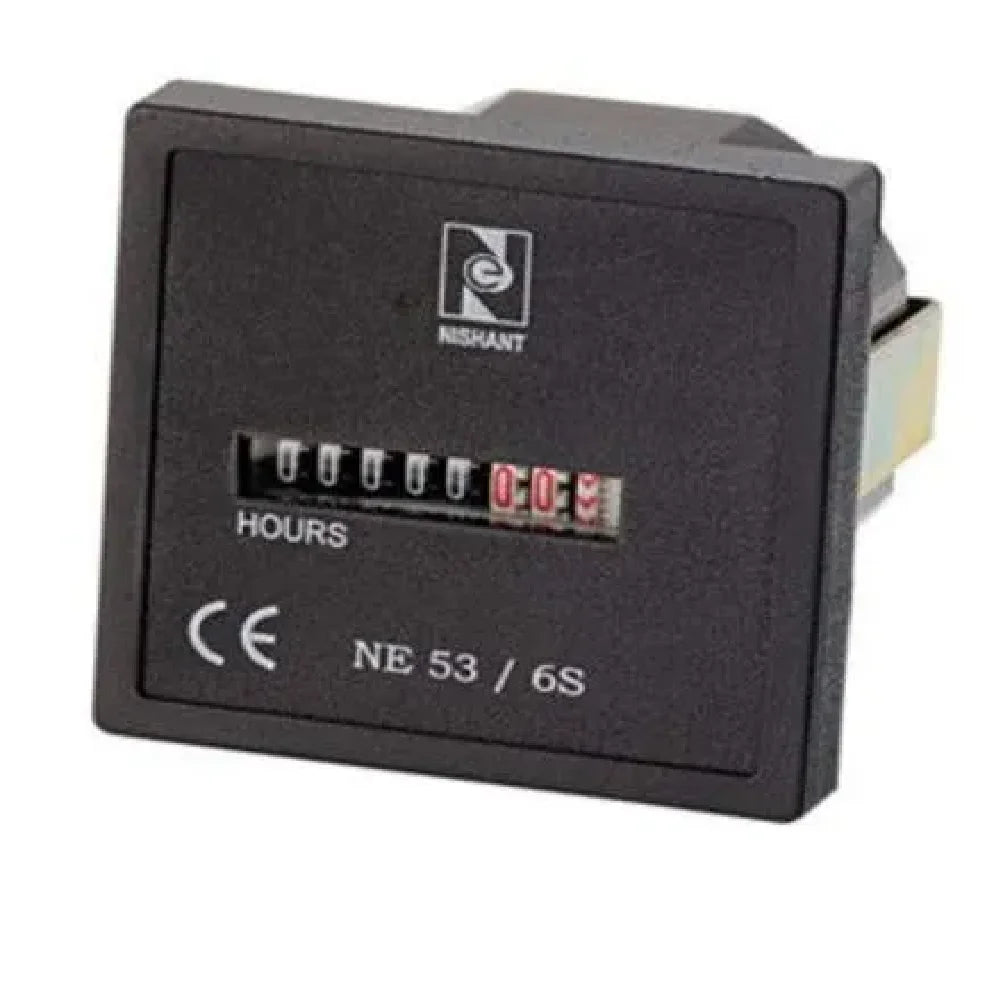

Real Instruments Nishant NE-53/6S Digital Hour Meter with High-Precision Time Recording, 230V AC Operation, Continuous Duty Cycle, Flush Panel Mounting, 99,999.99 Hour Display Capacity, and Robust Design for Industrial Equipment and Machinery Monitoring

The Nishant NE-53/6S Hour Meter is a precision instrument designed to accurately record the cumulative operating time of machinery and equipment. This device is essential for scheduling preventive maintenance, conducting periodic inspections, and managing equipment calibration.

Key Specifications:

• Standard Supply Voltage: 230V AC, 50Hz
• Permissible Voltage Fluctuations: +10% to -15%
• Power Consumption: 2 Watts at 50Hz
• Duty Cycle: Continuous operation
• Voltage Proof Test: 2kV RMS for 1 minute
• Temperature Range: -20°C to 65°C
• Mounting: Flush panel mounting with die-pressed MS bracket and nuts
• Panel Cutout Dimensions: 50 mm x 50 mm
• Front Fascia Dimensions: 60 mm x 60 mm
• Display Capacity: Up to 99,999.99 hours
• Display Format: First five digits in white on black; last two digits in red on white
• Accuracy: Synchronized with mains frequency

Features:

• High Precision: Utilizes a self-starting synchronous motor for accurate time recording.
• Continuous Operation: Designed for uninterrupted monitoring of equipment runtime.
• Easy Integration: Compact design allows for seamless installation in various equipment panels.
• Clear Readability: Distinct color-coded digit display enhances visibility.

Applications:

• Preventive Maintenance: Assists in scheduling maintenance tasks based on actual equipment usage.
• Equipment Monitoring: Tracks operating hours to ensure machinery is used within specified limits.
• Warranty Tracking: Enables manufacturers to monitor equipment usage during warranty periods.
• Operational Efficiency: Helps in analyzing machine utilization to optimize productivity.
