Real Instruments 90 Days Temperature Data Logger Disposable Temperature Recorder USB Single-Use Pdf Temperature Data Logger, TempU02-90

Temperature Data Logger TempU02 (90 Days) Specifications:

• Temperature Measurement Range:

  • -30°C to +70°C (-22°F to +158°F)

• Accuracy:

  • ±0.5°C (-20°C to +40°C)
  • ±1.0°C (outside -20°C to +40°C)

• Resolution:

  • 0.1°C

• Memory Capacity:

  • Up to 32,000 temperature readings

• Logging Duration:

  • Pre-programmed to log data for up to 90 days

• Sampling Interval:

  • Fixed interval, typically set to 10 minutes

• Alarm Settings:

  • Programmable high and low-temperature limits with visual alarm indicators

• Battery:

  • Built-in lithium battery (non-replaceable)
  • Battery life tailored to support 90 days of continuous operation

• Connectivity:

  • Integrated USB 2.0 connector for plug-and-play data transfer

• Report Generation:

  • Automatic PDF report generated upon connection to a computer

• Indicator:

  • LED status indicators for alarms and logging activity

• Operating Conditions:

  • Temperature: -30°C to +70°C (-22°F to +158°F)
  • Humidity: 0% to 85% RH (non-condensing)

• Dimensions:

  • 80mm x 25mm x 12mm (3.15 x 0.98 x 0.47 inches)

• Weight:

  • Approximately 25 grams (0.88 oz)

• Certifications:

  • CE, RoHS compliant

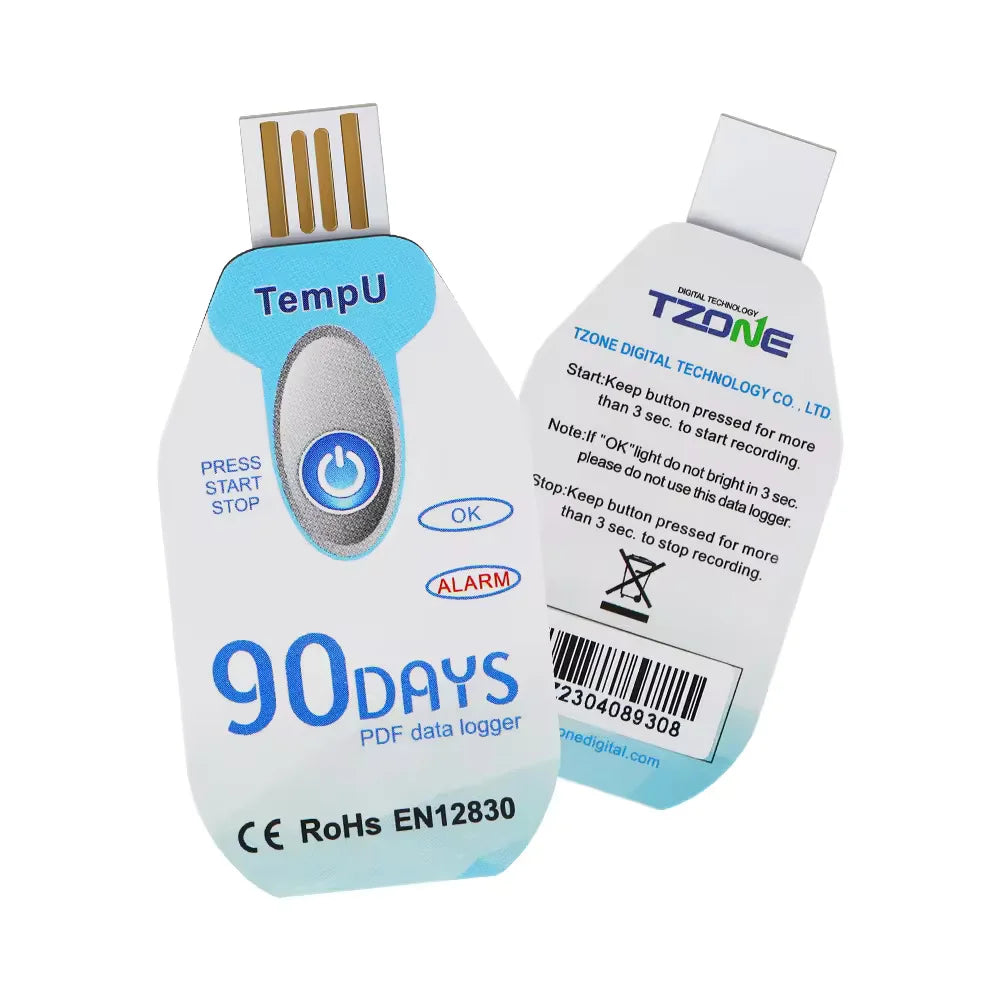

Temperature Data Logger TempU02 (90 Days) Description:

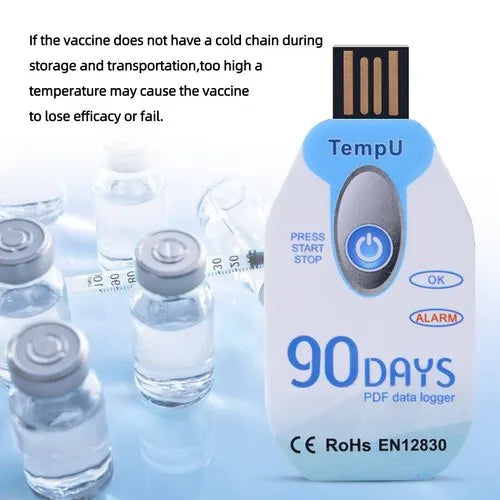

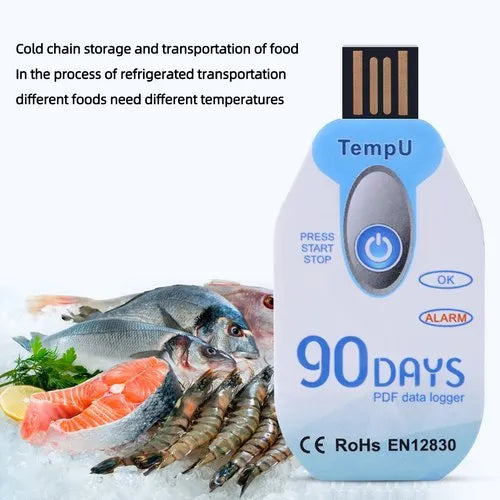

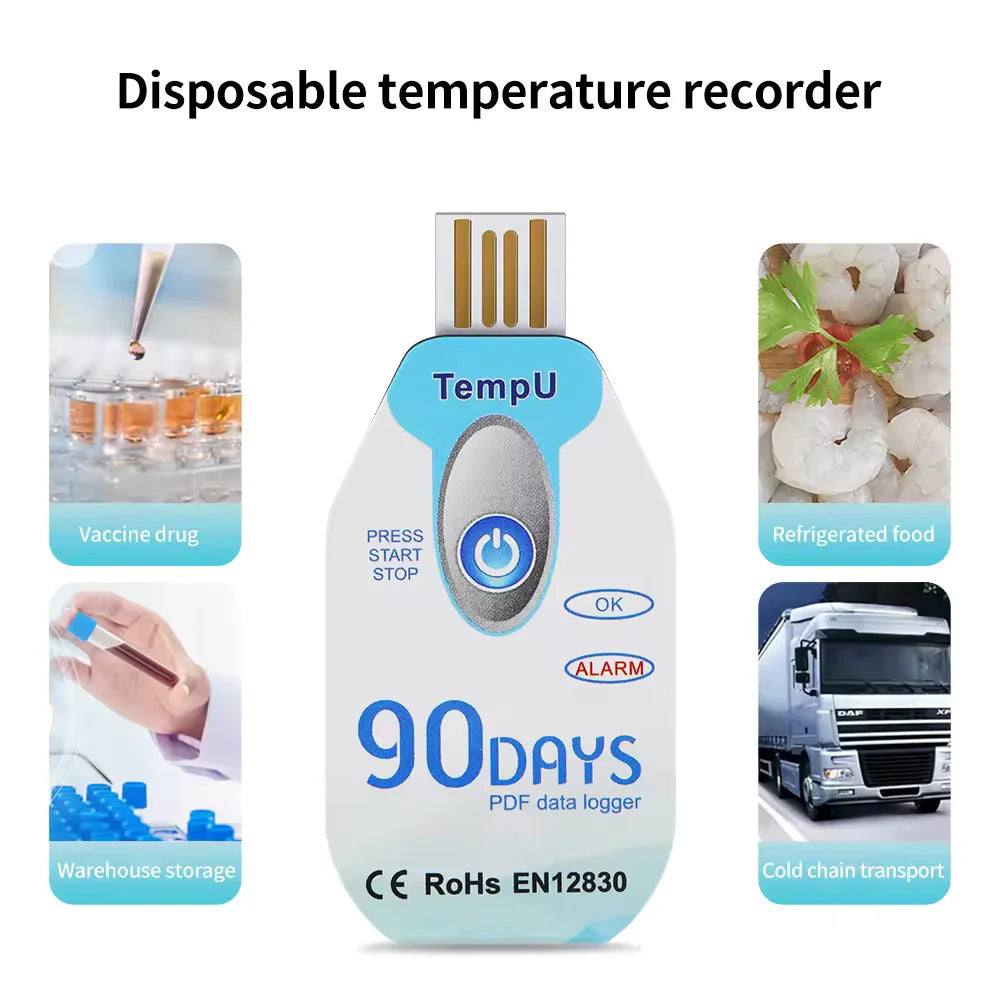

The TempU02 Temperature Data Logger (90 Days) is a compact, easy-to-use device designed to monitor and record temperature levels during transportation and storage of temperature-sensitive goods. Pre-programmed for 90 days of continuous operation, it is ideal for applications in cold chain logistics, medical storage, pharmaceutical transportation, and food safety monitoring.

With a measurement range of -30°C to +70°C and high accuracy, the TempU02 ensures reliable tracking of temperature fluctuations. The device features a built-in USB connector, enabling quick and hassle-free data transfer to a computer. Upon connection, it automatically generates a PDF report without requiring additional software, providing a clear and detailed record of temperature readings, including alarm notifications for excursions beyond set limits.

The LED indicators offer at-a-glance status updates for alarm and logging activity. The non-replaceable lithium battery is optimized to support the device for the entire 90-day logging period. Its lightweight and compact design make it easy to deploy, ensuring seamless integration into packaging or storage units.

Whether you're monitoring compliance in regulated industries or maintaining optimal storage conditions, the TempU02 (90 Days) provides a dependable, user-friendly solution for temperature monitoring and data logging needs.
