Real Instruments AlcoEasy A50 Digital Alcohol Breath Analyzer with Advanced Fuel Cell Sensor Technology, 2.8-Inch Full Graphic TFT Touch Screen Display, Integrated Thermal Printer, 20,000 Test Memory Capacity & Dual Active/Passive Measurement Modes, AT-22

The AlcoEasy A50 is a next-generation handheld breath alcohol analyzer designed for professional use, offering precise and reliable measurements of blood alcohol concentration (BAC). It employs advanced fuel cell sensor technology, ensuring high accuracy and specificity to alcohol.

Key Features:

• Fuel Cell Sensor Technology: Utilizes a fuel cell sensor that reacts specifically to alcohol, minimizing interference from other substances and ensuring accurate test results.

• 2.8-Inch Full Graphic TFT Touch Screen: Equipped with a clear and intuitive touch screen display, facilitating easy operation and clear visualization of data.

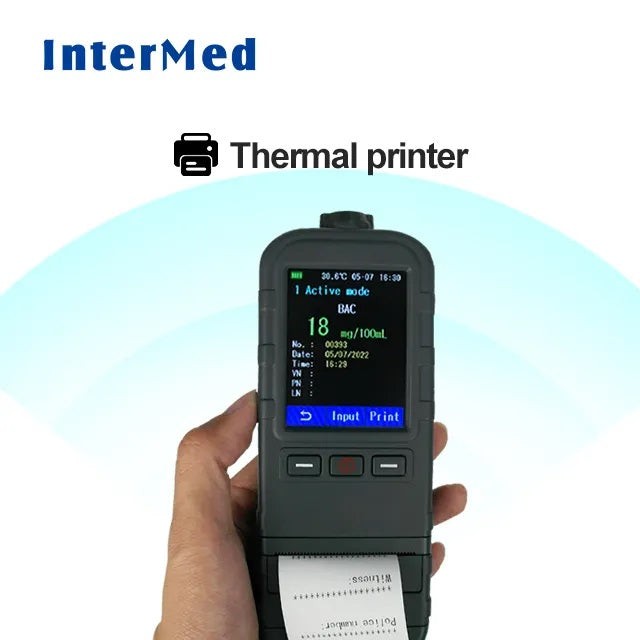

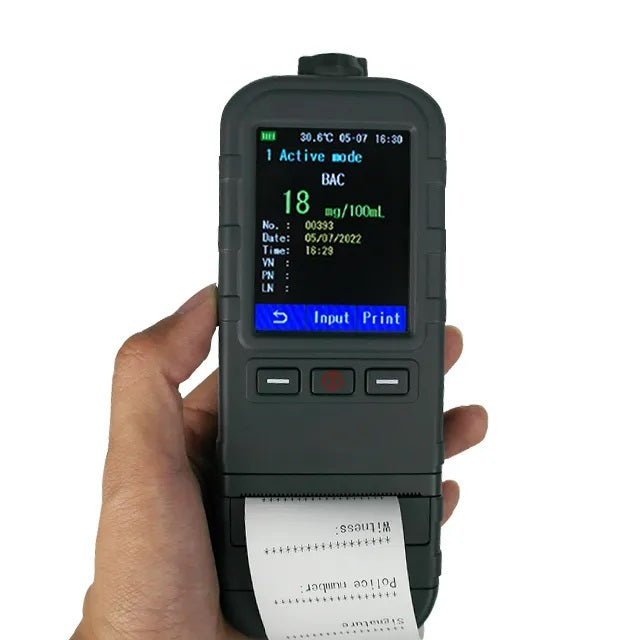

• Inbuilt Thermal Printer: Features an integrated thermal printer, allowing for immediate printing of test results for record-keeping and documentation purposes.

• Data Management: Capable of storing up to 20,000 test results, which can be reviewed on the device or exported to a PC via a USB port for further analysis and record management.

• Dual Measurement Modes: Offers both active and passive measurement modes, accommodating various testing scenarios

Technical Specifications:

• Measurement Range: 0.000 to 4.000 mg/100 ml.

• Measurement Accuracy: ±5 mg/100 ml within the range of 0 to 80 mg/100 ml.

• Measurement Time: Less than 10 seconds.

• Zeroing Time: Less than 5 seconds.

• Blow Volume: 1.0 L or adjustable according to customer requirements.

• Data Storage: Up to 20,000 measured values.

• Real-Time Clock: Yes.

• Battery: Li-ion, 7.4V, 1300mAh, providing extended operational time.

• Calibration Interval: Recommended every 6 months to maintain accuracy.

• Operating Temperature: -5°C to 50°C.

• Storage Temperature: -20°C to 60°C.

• Dimensions: 180 mm (L) x 70 mm (W) x 30 mm (H).

• Weight: 250 grams.

Additional Features:

• Menu Operation: User-friendly menu interface for easy navigation and operation.

• Data Review and Printing: Allows for on-device data review and immediate printing of results via the built-in printer.

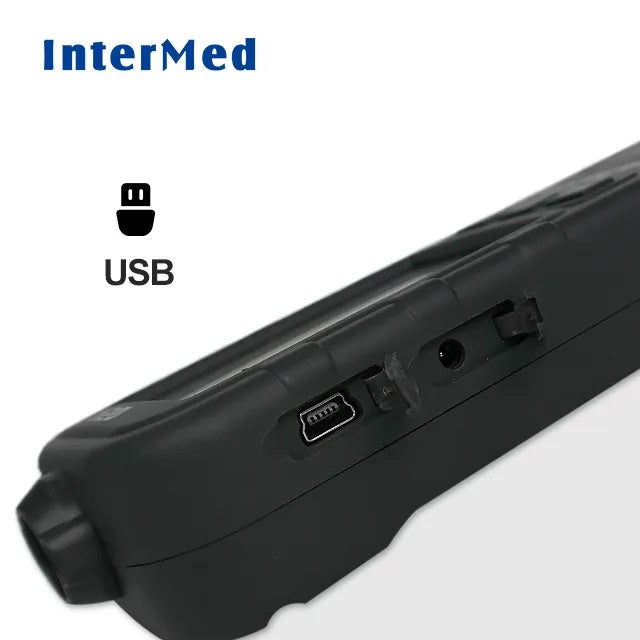

• PC Connectivity: USB port enables data management and device maintenance through PC software.

The AlcoEasy A50 is engineered to meet the rigorous demands of professional alcohol testing, making it an ideal choice for law enforcement agencies, transportation departments, and workplace safety programs. Its combination of advanced sensor technology, user-friendly interface, and robust data management capabilities ensures reliable performance in various testing environments.
