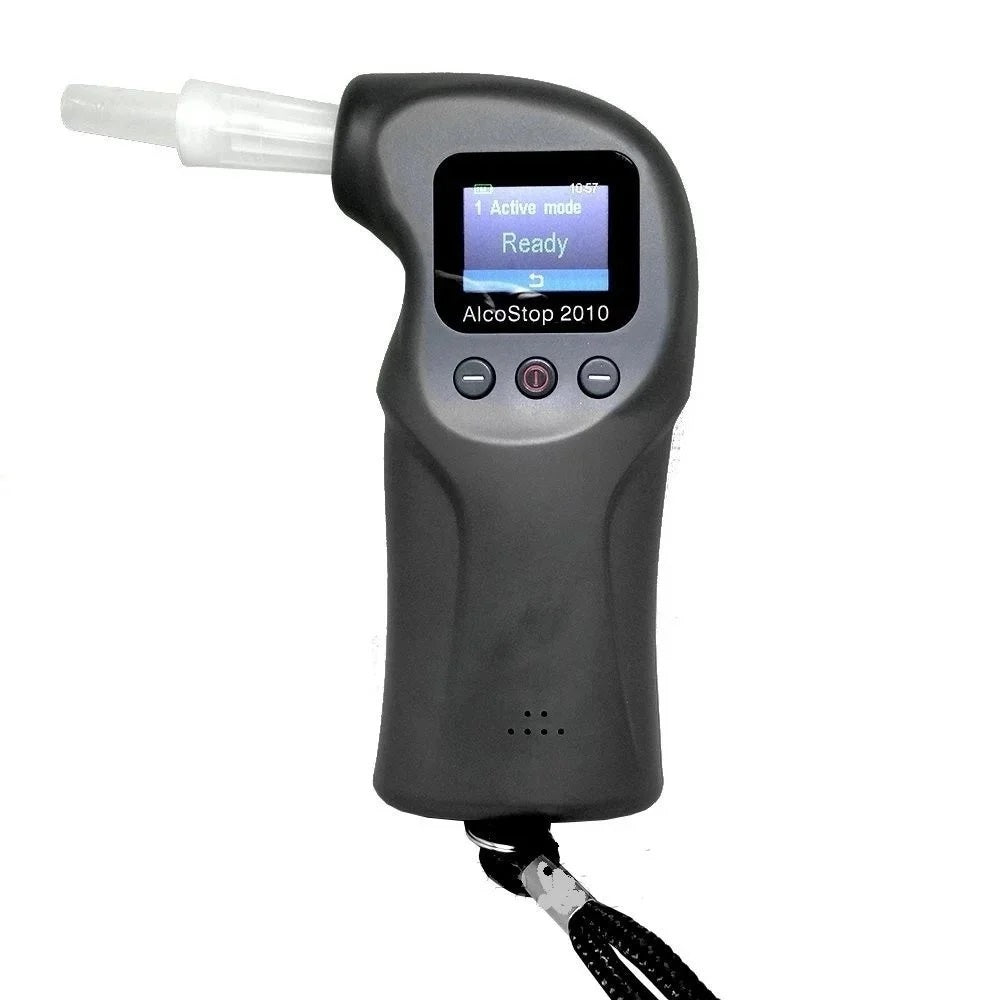

Real Instruments AlcoStop 2010 High Quality Alcohol Screening Device Alcohol Tester, AT-26
Real Instruments AlcoStop 2010 High Quality Alcohol Screening Device Alcohol Tester, AT-26
Regular price
Rs. 24,000.00
Regular price
Sale price
Rs. 24,000.00
Unit price
/
per
Instrument Name |
Breath Analyser
|
Model Name/Number |
AlcoStop 2010
|
Usage/Application |
Police
|
Parameters |
Blood Alcohol Content
|
Automation |
Manual
|
User Input |
Keyboard
|
Brand |
Amrutha
|
Type Of Breath Alcohol Analyzer |
Digital
|
Application |
Law Enforcement Agencies
|
Display |
1.8 inch
|
Operation Mode |
Manual
|
Types Of Breath Alcohol Analyzer |
Fuel-Cells Sensor Models
|
Dimensions |
Approx.128 x 59 x 26.5 mm (L x W x T)
|
Weight |
Approx. 142 gm Including battery
|
Resolution |
0.0001 mg/l
|
Operating Temperature |
10 to 45 Deg C
|
Storage Temperature |
20 to 70 Deg C
|
Batteries |
1000 mAh / 3.7 V Lithium-ion rechargeable battery
|
Technical Data:
Principle of Measurement | Electrochemical Sensor, alcohol- specific | |
Measurement Range(BrAC) | 0.000mg/L1.500 mg/L | |
Resolution | 0.0001 mg/L | |
Accuracy: | Ethanol Vapor Concentration / (mg/L) | Deviation |
Max. Measure error, | C<0.400 | ±0.020 mg/L |
0.400≤C<1.000 | ±5% | |
in relation to ethanol standard | C≥1.000 | ±20% |
Repeatability of Indicating Value | Ethanol Vapor Concentration / ( mg/L) | Deviation |
C<0.400 | 0.007 mg/L | |
0.400≤C<1.000 | 1.75 | |
C≥1.000 | 6 | |
Calibration | Every 6 Months | |
Optimum Storage Condition | Temperature20???±5???Humidity<80%RHPressure86 kpa106 kpa | |
No vapor or electromagnetic disturbances in the environment are influencing the normal working conditions of the device | ||
Memory Capacity | Stores 4000 measured values with date and time (data can be downloaded to a PC or printer) | |
Printer | Micro Thermal Printer | |
Operation Voltage | State of charging | State of operation |
USB port, 5V | DC 3.6V8.4 V |
