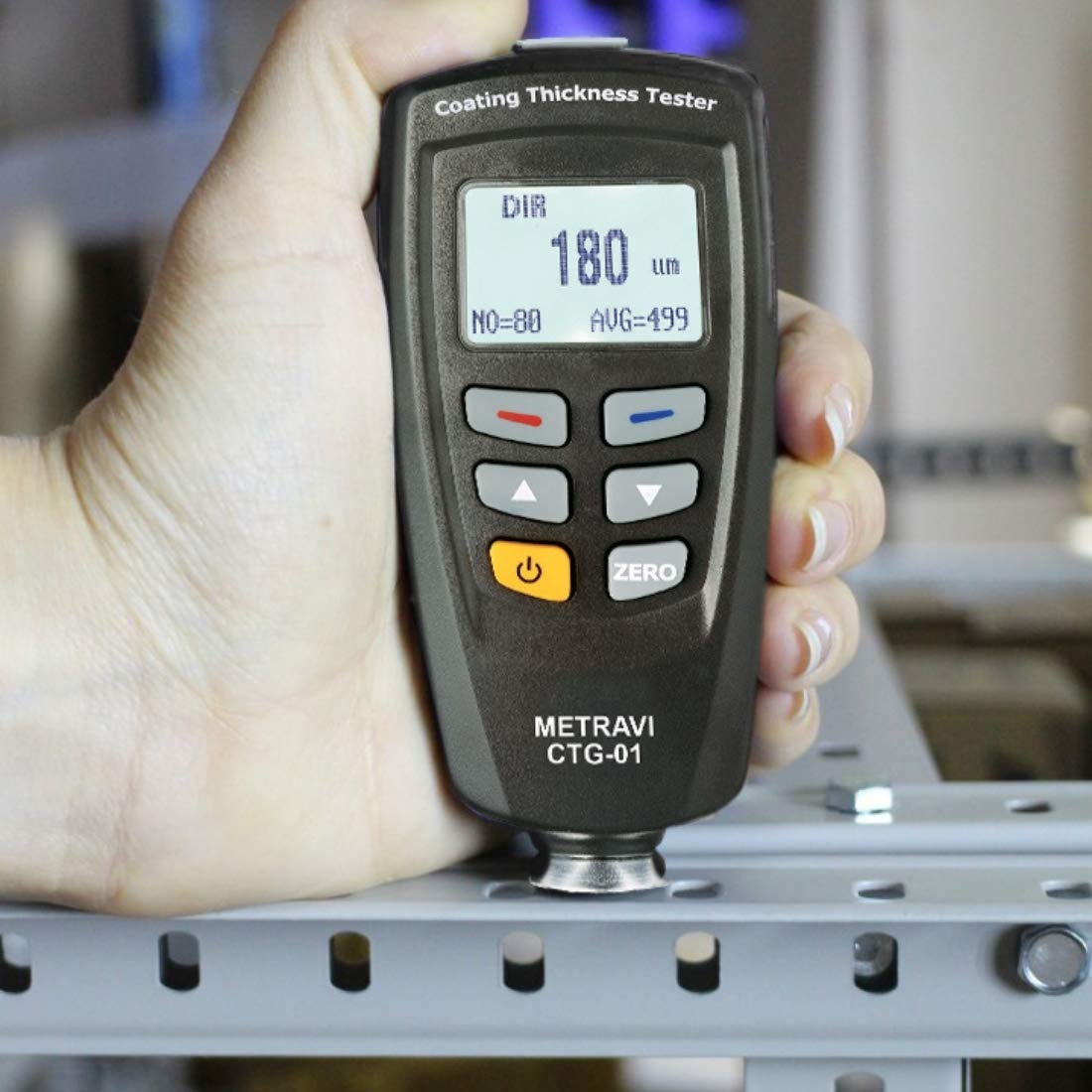

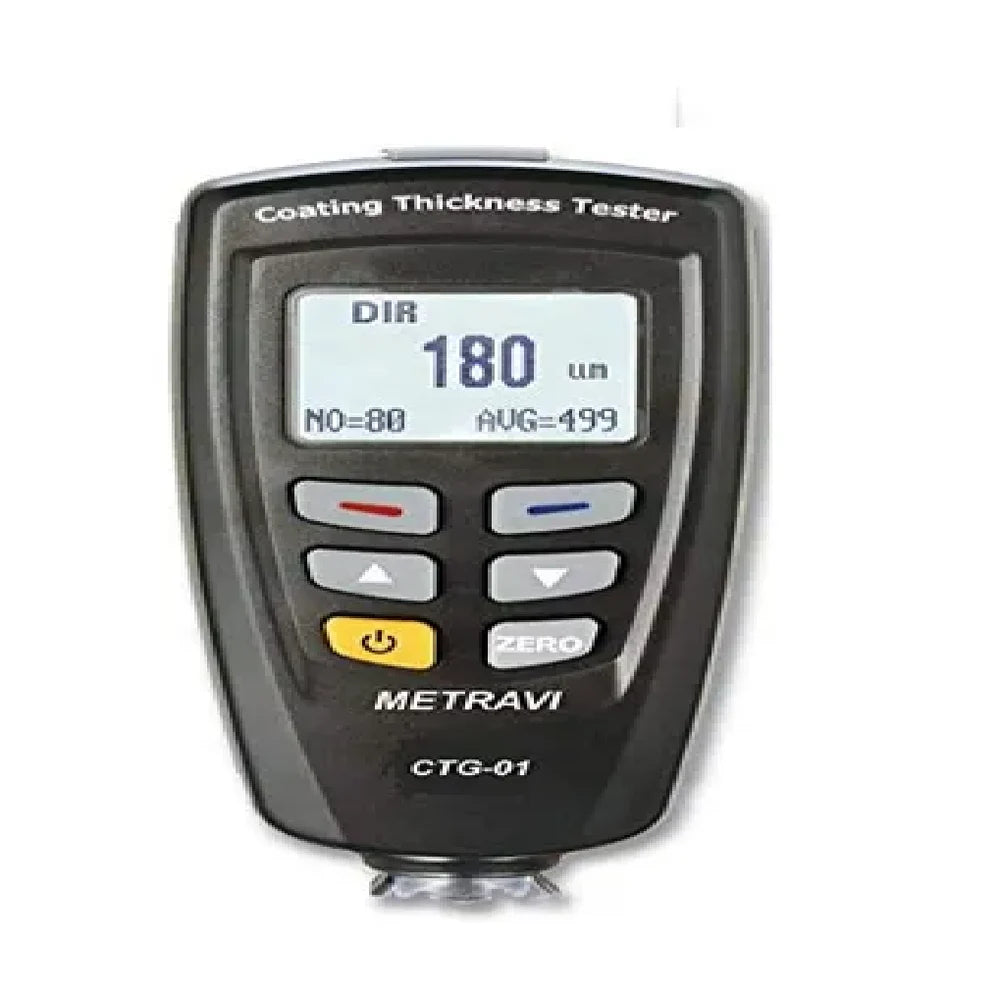

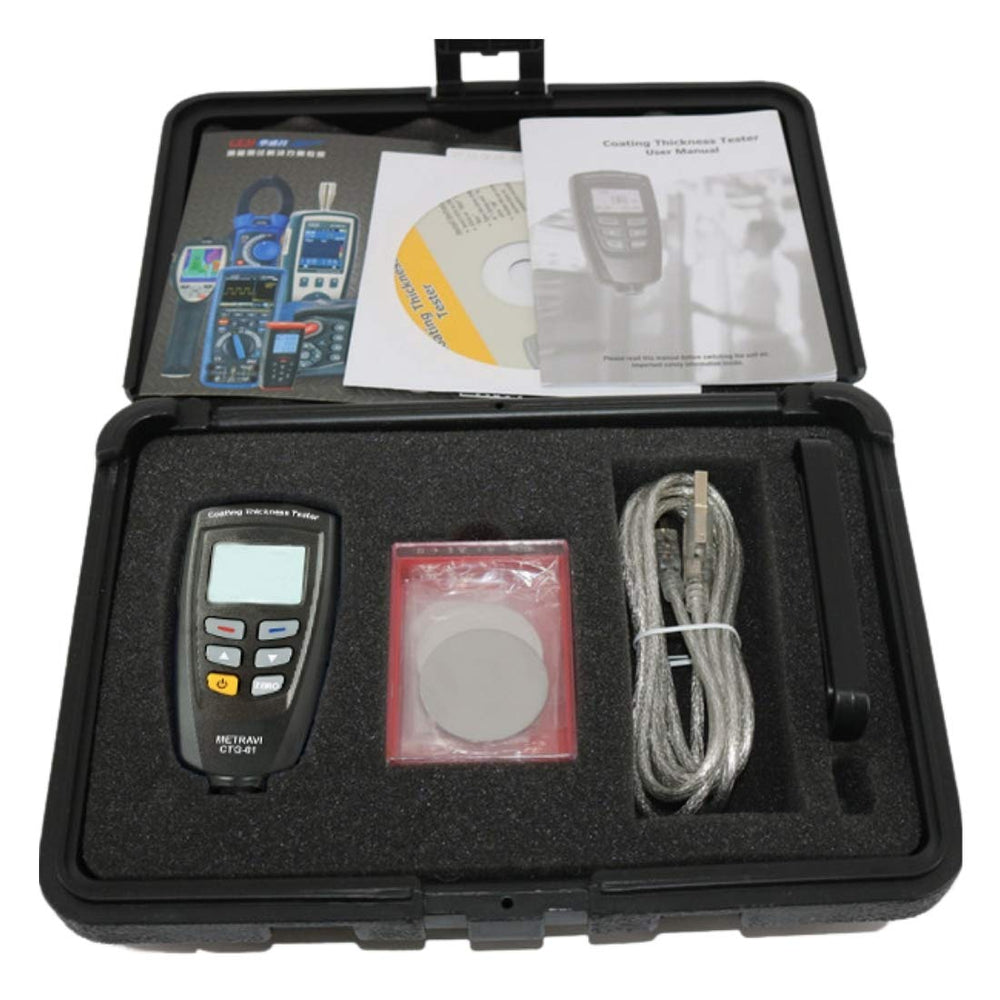

Real Instruments Metravi Coating Thickness Gauge CTG-01 with Dual Technology for Magnetic Induction and Eddy Current Measurements, 0-1250 µm Range, High Accuracy, Backlit LCD Display, Multi-Point Calibration for Ferrous and Non-Ferrous Substrates

The Metravi Coating Thickness Gauge CTG-01 is a versatile and user-friendly device designed to measure the thickness of non-magnetic coatings on ferrous and non-ferrous substrates. It is widely used in industries such as automotive, manufacturing, and construction for quality control and inspection tasks. Below are its specifications and description:

Specifications:

• Measurement Range: 0 µm to 1250 µm (0 mil to 49.2 mil)
• Accuracy: ±(3% + 1 µm)
• Resolution: 1 µm
• Measurement Method:
  • Magnetic Induction for ferrous substrates
  • Eddy Current for non-ferrous substrates
• Substrate Compatibility:
  • Ferrous materials (e.g., steel, iron)
  • Non-ferrous materials (e.g., aluminum, copper)
• Display: LCD with backlight for clear readings
• Probe Type: Built-in or detachable probe options available
• Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
• Power Source: 2 x AAA batteries
• Battery Life: Approx. 100 hours of continuous use
• Dimensions: 120mm x 65mm x 30mm
• Weight: Approx. 150 grams (with batteries)
• Calibration: Zero and multi-point calibration options
• Additional Features:
  • Auto power-off to save battery
  • Data hold function for saving readings
  • Min/Max thickness tracking
  • Metric and imperial unit conversion
  • Low battery indication

Description:

The Metravi Coating Thickness Gauge CTG-01 is an efficient and accurate tool for measuring the thickness of coatings such as paint, varnish, or plating on various substrates. Its measurement range of 0 µm to 1250 µm makes it suitable for a wide range of industrial applications, from automotive inspections to manufacturing quality control.

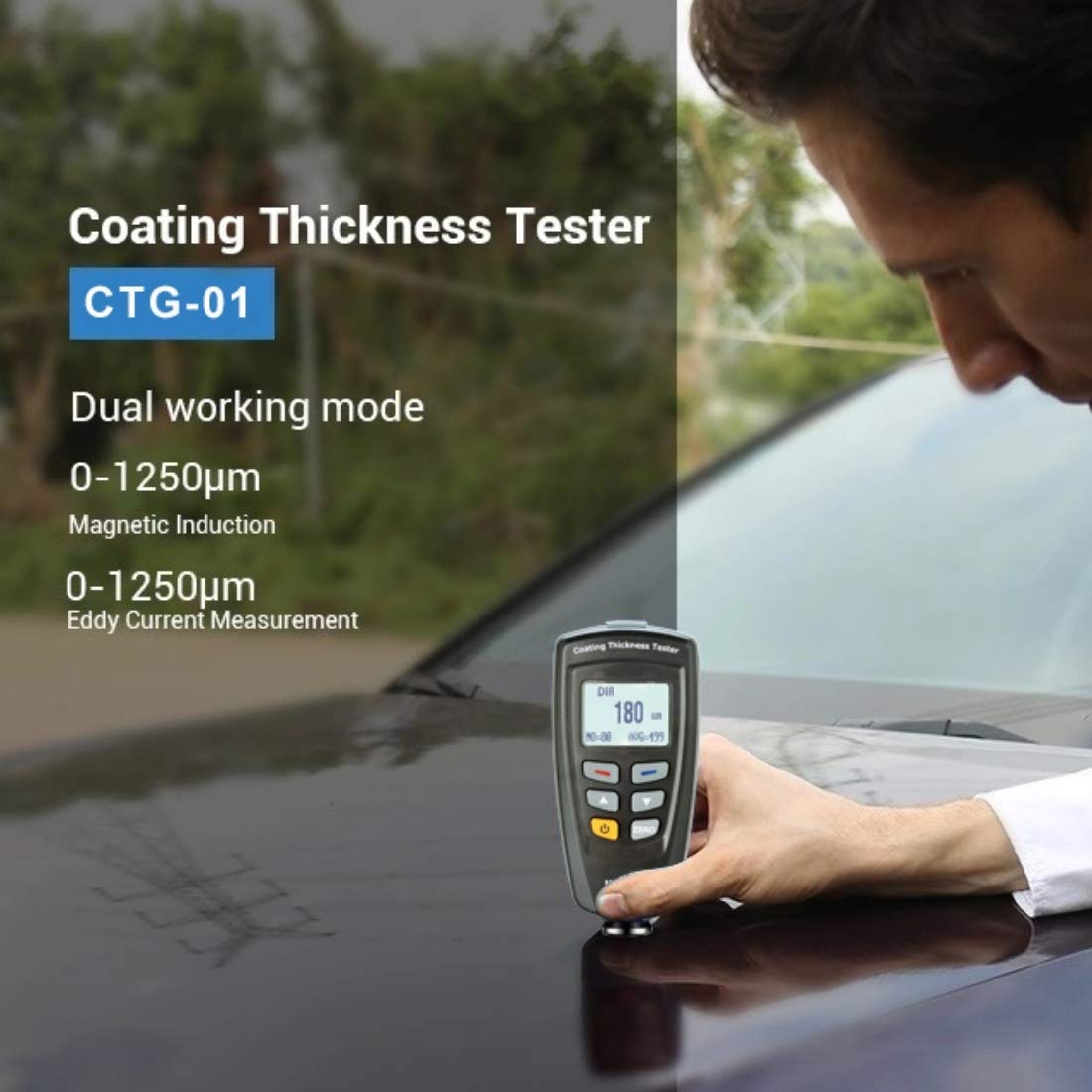

The gauge uses magnetic induction to measure coatings on ferrous substrates like steel and eddy current technology for non-ferrous materials such as aluminum. This dual-method capability ensures accurate measurements across different material types. The device provides precise readings with a high accuracy of ±(3% + 1 µm) and a resolution of 1 µm, making it ideal for critical inspections.

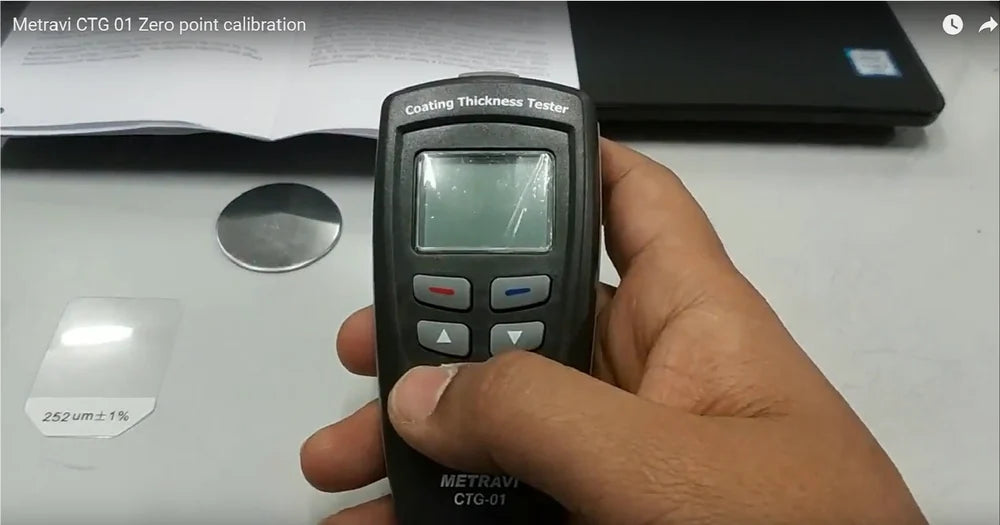

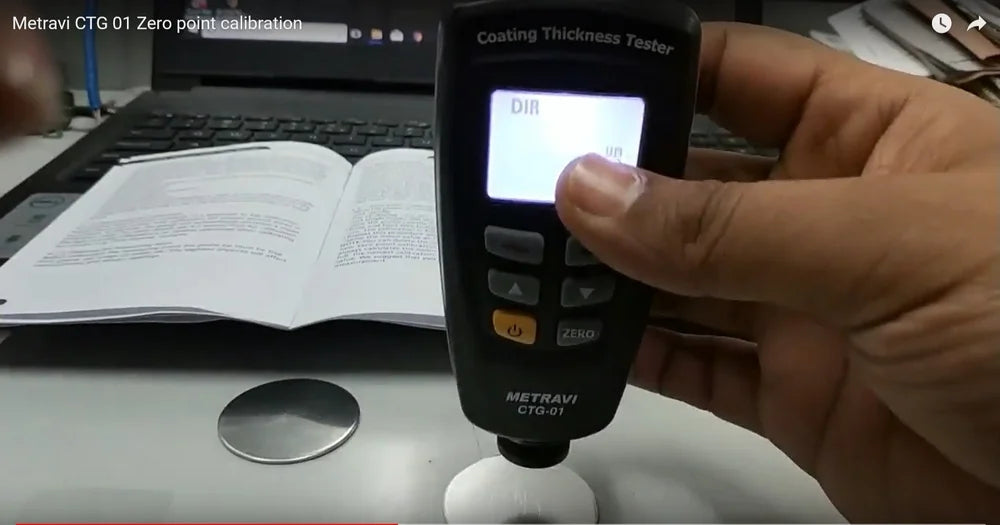

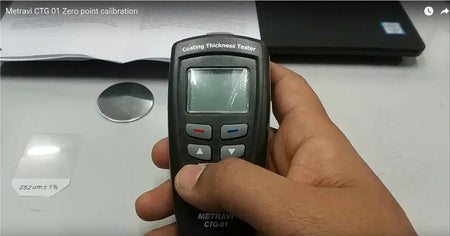

The LCD display with backlight ensures visibility in various lighting conditions, and the user-friendly interface simplifies operation. The device supports zero and multi-point calibration, allowing the user to fine-tune the gauge for specific applications. It also features a data hold function for retaining measurements and the ability to track Min/Max thickness values during inspections.

Compact and lightweight, the CTG-01 is powered by 2 AAA batteries, offering up to 100 hours of continuous use. The auto power-off feature conserves battery life, and a low battery indicator alerts users when a replacement is needed. Its rugged construction ensures durability, making it suitable for use in demanding environments.

The Metravi CTG-01 Coating Thickness Gauge is an essential tool for professionals needing precise and efficient coating measurements. Whether checking the thickness of paint on automotive components or ensuring uniform plating in manufacturing, this gauge delivers reliable performance and ease of use.
