Real Instruments HTC Digital Lux Meter Model LX-102 for Accurate Illuminance Measurement Range of 0 to 200,000 Lux, High Resolution, LCD Display, Data Hold Function, Auto Power-Off for Use in Lighting Design, Quality Control & Environmental Monitoring

Out of stock
SKU: LX-102
Rs. 2,400.00 inc. VAT

Use this text to encourage communication or promote sharing on social networks.

You can also add links

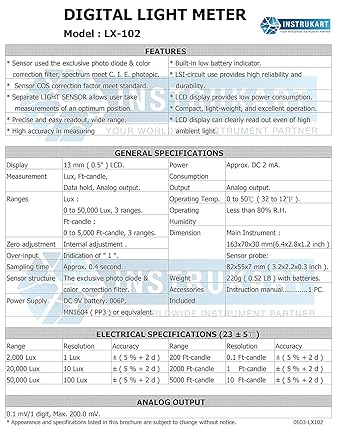

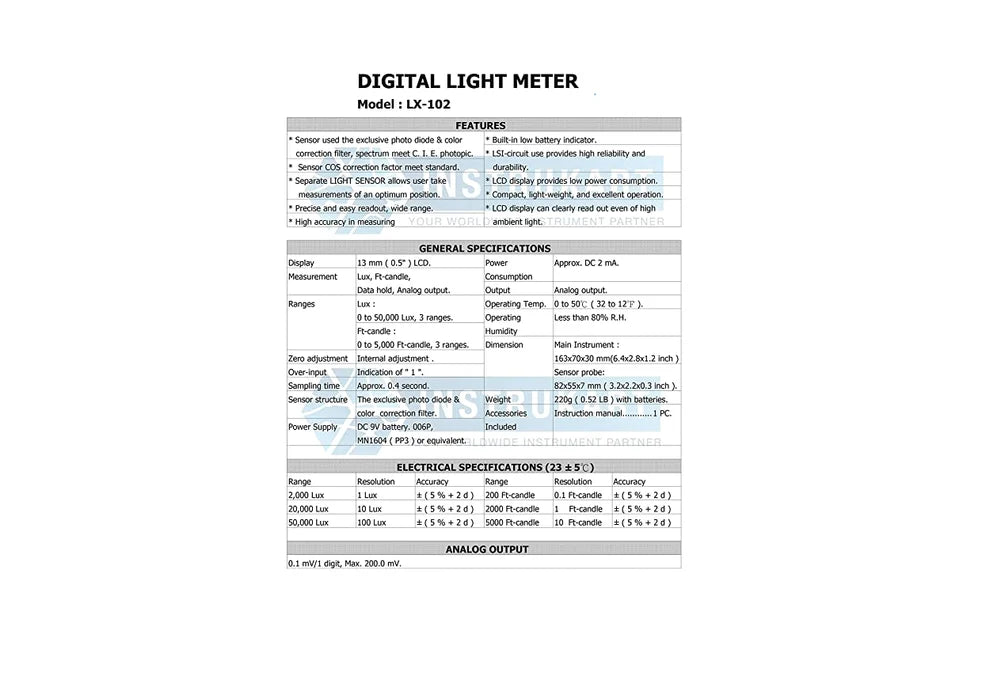

  • Features: High Accuracy, Precise, Easy Readout and wide range | Exclusive photo diode & color, correction filter | Built-in low battery indicator | spectrum meet C. I. E. photopic | Sensor COS correction factor | Separate LIGHT SENSOR | LSI-circuit use provides high reliability and Durability
  • Measuring Ranges: 0 to 50,000 Lux / 0 to 5,000 Ft-candle, 3 ranges | Range/Resolution/Accuracy (Lux): 2,000 Lux/1 Lux/±(5% +2d); 20,000 Lux/10 Lux/±(5% +2d)/50,000 Lux/100 Lux ±(5% +2d) | Range/Resolution/Accuracy (Ft-Candle)
  • Display Specifications: 13 mm ( 0.5" ) LCD | Measuring Parameters: Lux, Ft-candle, Data hold, Analog output | Zero adjustment: Internal adjustment | Over-input: Indication of " 1 " | Sampling time: Approx. 0.4 second | Sensor structure The exclusive photo diode & Colour correction filter
  • Power Supply: DC 9V battery. 006P MN1604 ( PP3 ) or equivalent | Power Consumption: Approx. DC 2 mA | Analog Output: 0.1 mV/1 digit, Max. 200.0 mV | Dimension: Main Instrument: 163x70x30 mm(6.4x2.8x1.2 inch), Sensor probe: 82x55x7 mm (3.2x2.2x0.3 inch)

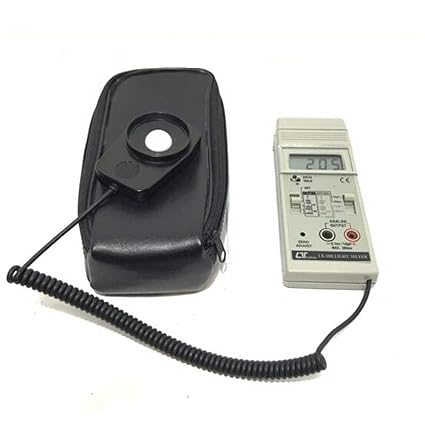

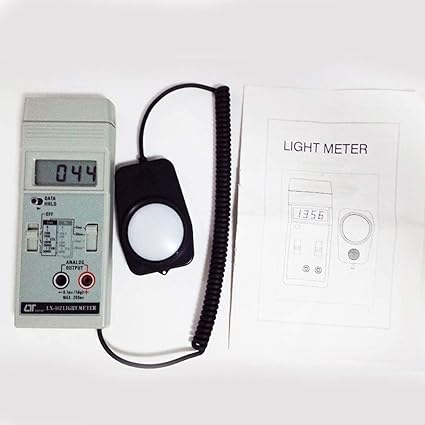

  • Supply Scope: 1 Unit of Light Meter, Sensor Probe, Instruction Manual and Factory Calibration Certificate | Applications: Photography, Videography, Greenhouse, Labs, Stadiums, Clean rooms, theatres, school, college, offices and Factories

Key Features:

  • Measurement Range: 0 to 200,000 lux (0 to 20,000 foot-candles)
  • Resolution: 0.1 lux
  • Accuracy: ±5% of reading ± 10% full scale
  • Display: Large LCD with backlight for easy reading in low-light conditions
  • Sensor: Silicon photoelectric diode
  • Power Supply: 9V battery (6F22)
  • Dimensions: 100 x 60 x 27 mm (photo detector), 130 x 95 x 30 mm (main unit)

Additional Features:

  • Data Hold: Allows for freezing the current reading on the display
  • Auto Power Off (APO): Conserves battery life by automatically shutting down after a period of inactivity
  • Peak Hold (LX-102A model): Captures and displays the highest light level detected
