Real Instruments Din Rail Mountable Over Voltage And Under Voltage Protector Current Limit Protection Voltmeter Ammeter KWH With Over Current Protection (60A 230V)
Real Instruments Din Rail Mountable Over Voltage And Under Voltage Protector Current Limit Protection Voltmeter Ammeter KWH With Over Current Protection (60A 230V)
Regular price
Rs. 1,849.00
Regular price
Sale price
Rs. 1,849.00
Unit price
/
per

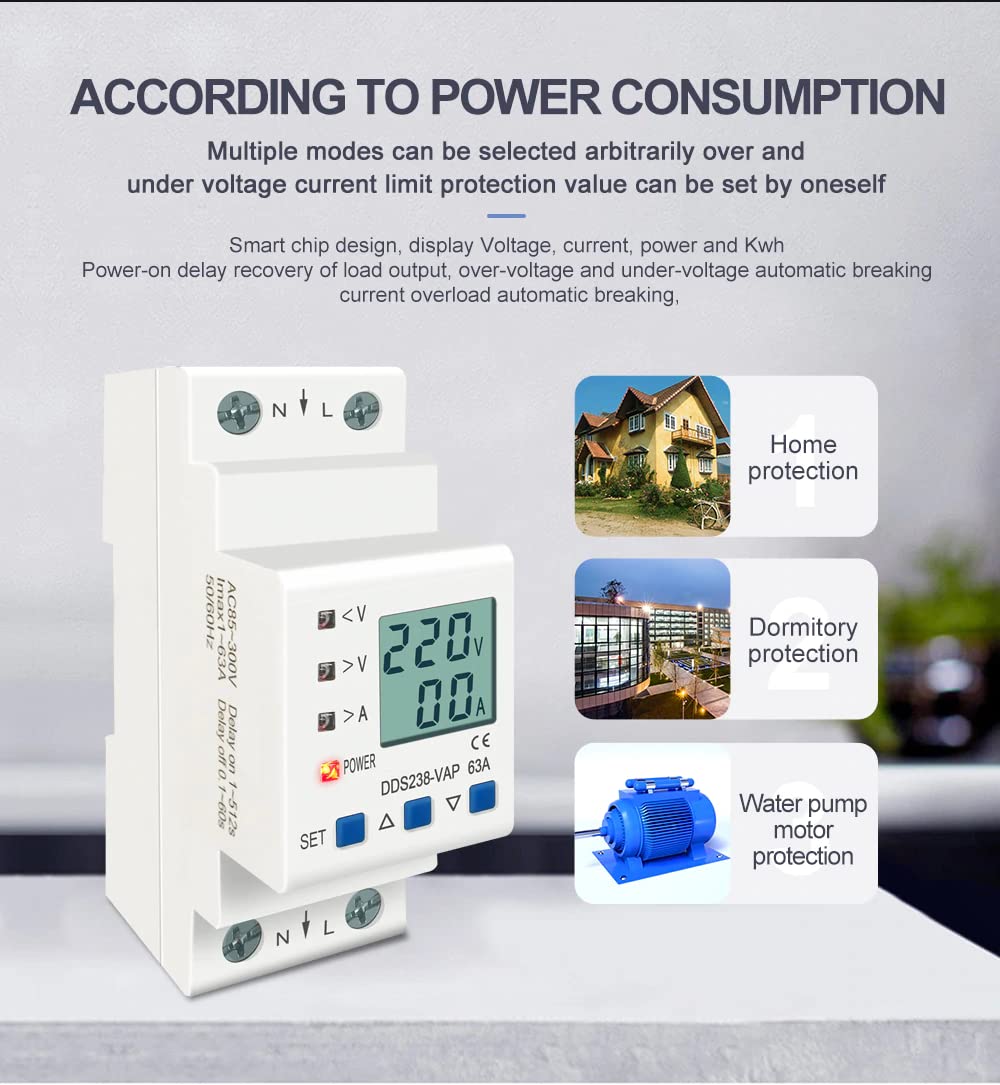

- β γπ½ππππππ π·ππππππππγππIt provides various protections to complete house Over Under Voltage Protector and Overload / Current Protection with wide adjustable range (refer manual for complete details)
- β γπΉππππγππ Over-voltage protection: 85-300 V (default 270 V); Under-voltage Protection: - 85-300 V (default 170 in);Over-current Protection: - 1-63A (default 40A); Power on Delay After Power Off: - Default 2 sec, Recovery Time / Recovery voltage gap is adjustable
- β γ2 ππ 1γππ Voltage protector with energy meter is all that is required; With over voltage under voltage protection, the device measures instantaneous RMS Energy as well as Historical Energy readings upto 0-9999 kWh

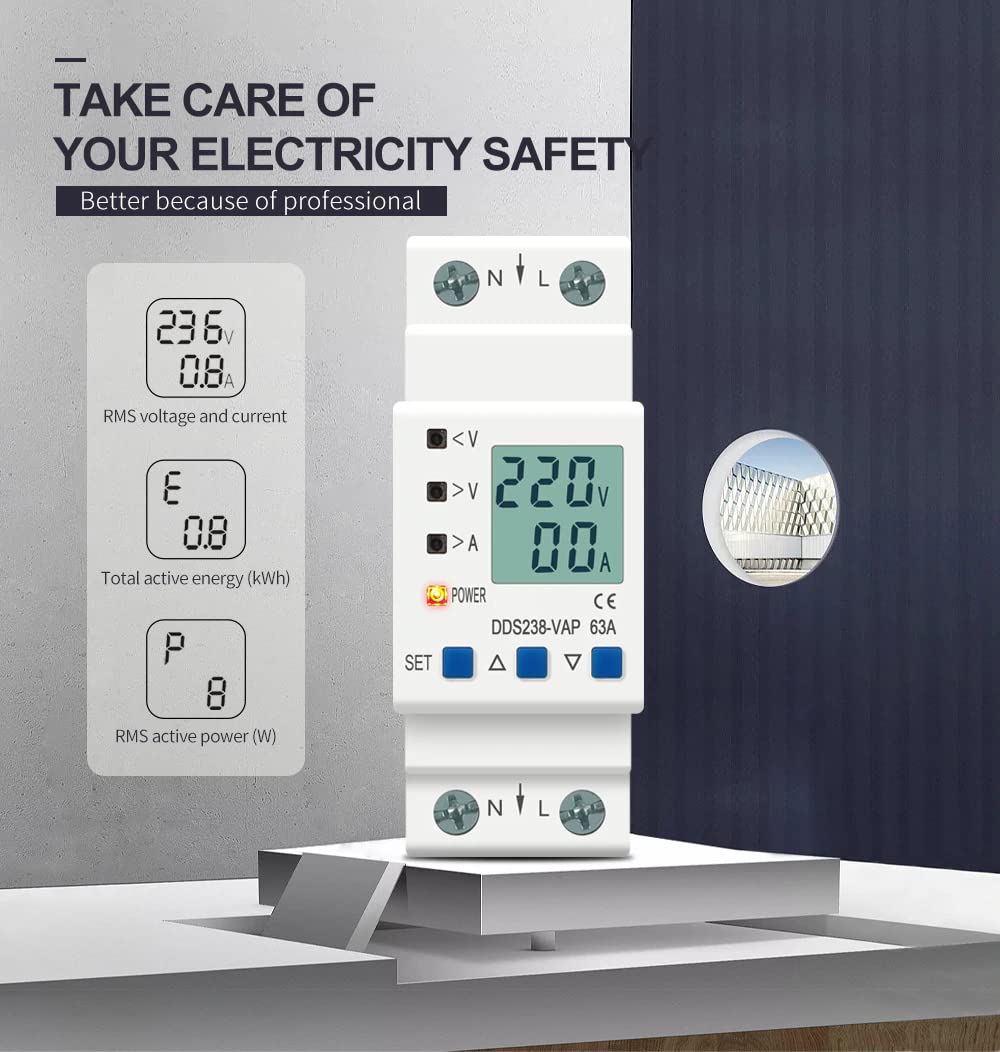

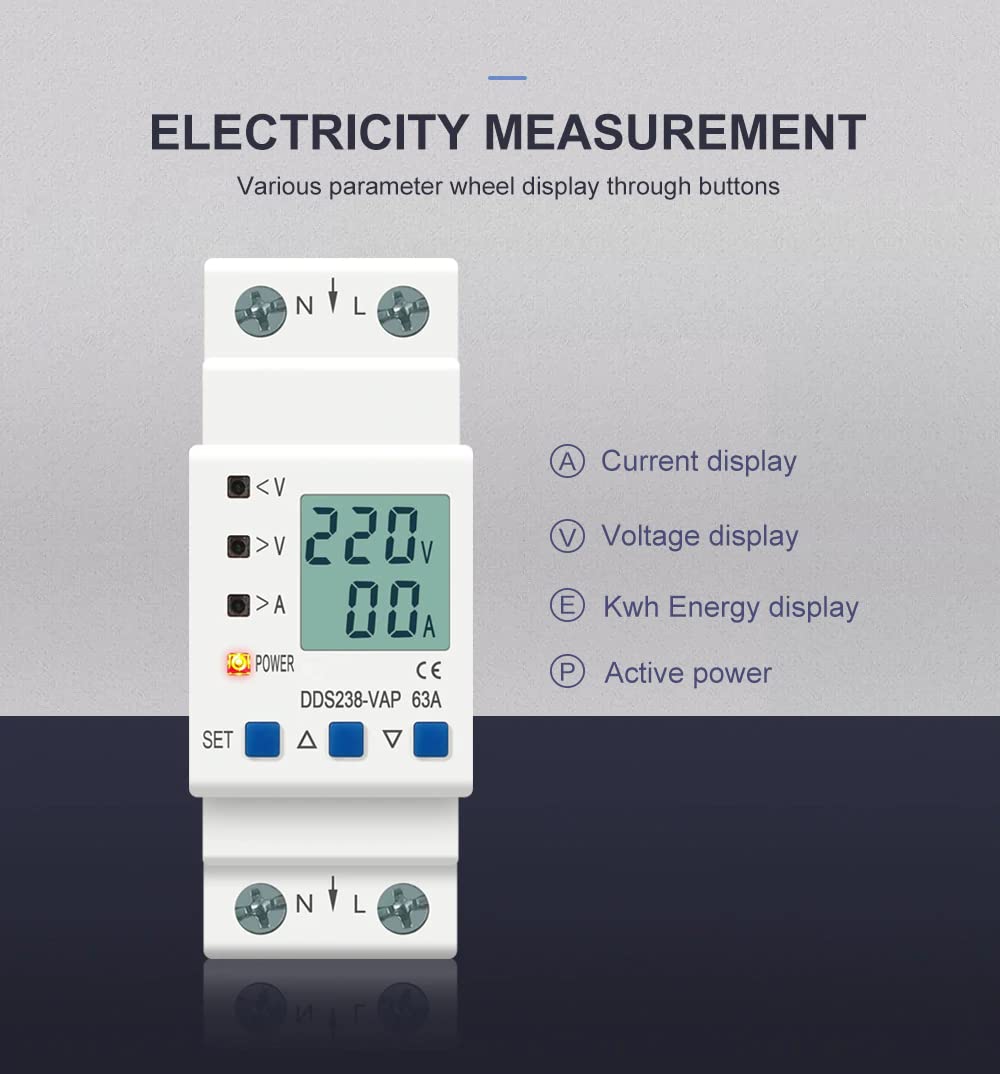

- β γπ«ππππππγππ LCD Screen displays the Total Energy (kWh), Real-time current (a), voltage (V), Active power (W)
- β γπΉππππππππ π»πππ / π«ππππ πΆπ π»πππγππ 3s-300s (Default: 30s), Volt Meter Function, Ammeter Function, In Case That The Line Subjects To Unstable Voltage Or Sudden Power Off And Power On Due To Loosened Connection And Other Fault, The Product Will Disconnect The Line.
- β γππππππππγππ The voltage protector supports overvoltage protection, undervoltage protection and voltage display, also support voltage measurement.
- β γπ¨π ππππππππγππ Both overvoltage and undervoltage protection values and recovery values are adjustable, and overvoltage and undervoltage protection action time is also adjustable.
- β γπ¬πππ π»π πππγππ The fault recovery delay time and powerβon delay time are adjustable, and the powerβon delay time is also adjustable.
