Real Instruments Elitech RC-5 High-Precision Temperature and Humidity Data Logger with Wide Measurement Range, USB Connectivity, Large Data Storage Capacity, LCD Display, Long Battery Life for Cold Chain, Food, Medical & Industrial Monitoring Applications

Elitech RC-5 Temperature and Humidity Data Logger Specifications:

Temperature Measurement

• Range: -30°C to +70°C (-22°F to +158°F)
• Accuracy: ±0.5°C (-20°C to +40°C); ±1.0°C (outside -20°C to +40°C)
• Resolution: 0.1°C

Humidity Measurement

• Range: 0% RH to 100% RH
• Accuracy: ±3% RH (20% to 80% RH); ±5% RH (outside 20% to 80% RH)
• Resolution: 0.1% RH

Memory Capacity

• Stores up to 32,000 data points

Sampling Interval

• User-configurable from 10 seconds to 24 hours

Alarm Settings

• Programmable high/low temperature and humidity limits
• Visual alarm indicators

Power Supply

• CR2032 replaceable lithium battery
• Battery life: Up to 6 months (depending on usage)

Display

• LCD screen for real-time display of temperature, humidity, logging status, and battery level

Connectivity

• USB interface for direct data transfer to a PC
• No additional cables required

Report Generation

• Automatic PDF and Excel report generation when connected to a computer

Operating Conditions

• Temperature: -30°C to +70°C (-22°F to +158°F)
• Humidity: 0% RH to 85% RH (non-condensing)

Dimensions

• 80mm x 25mm x 12mm (3.15 x 0.98 x 0.47 inches)

Weight

• Approximately 50 grams (1.76 oz)

Certifications

• CE, RoHS compliant

Elitech RC-5 Temperature and Humidity Data Logger Description:

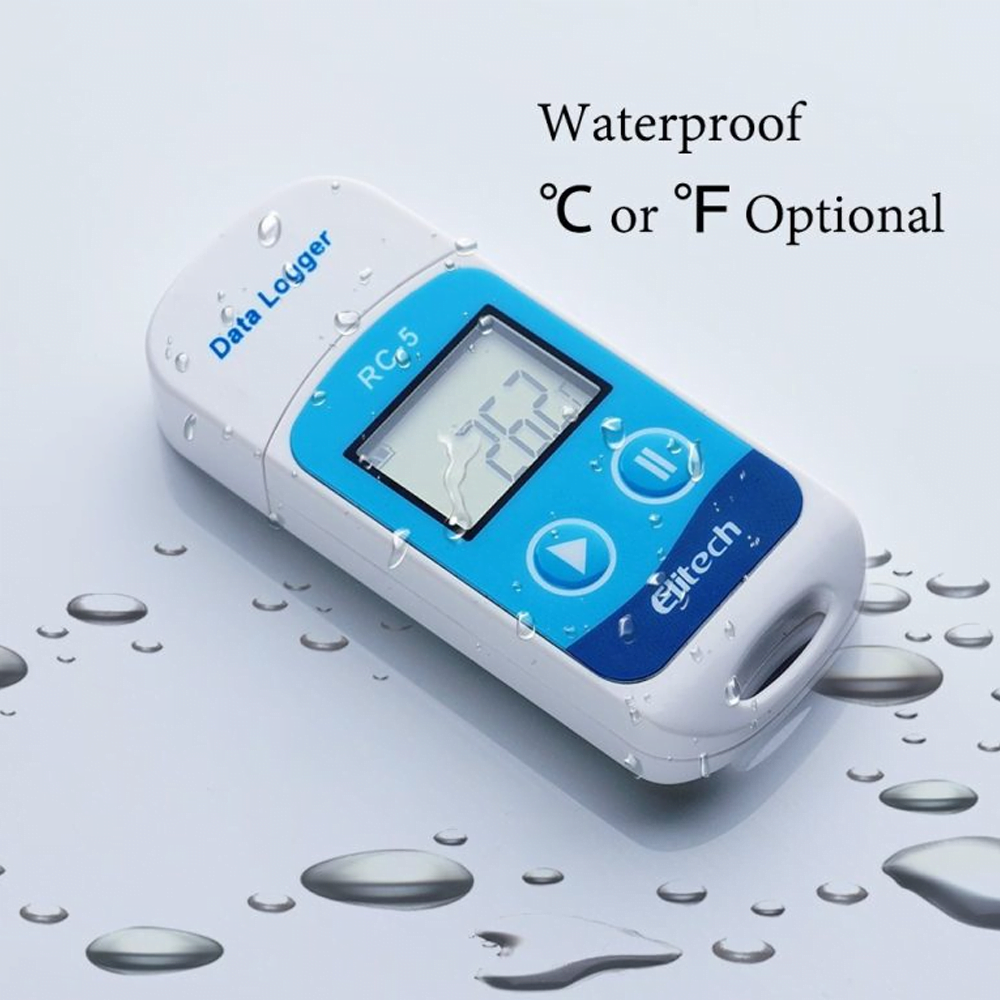

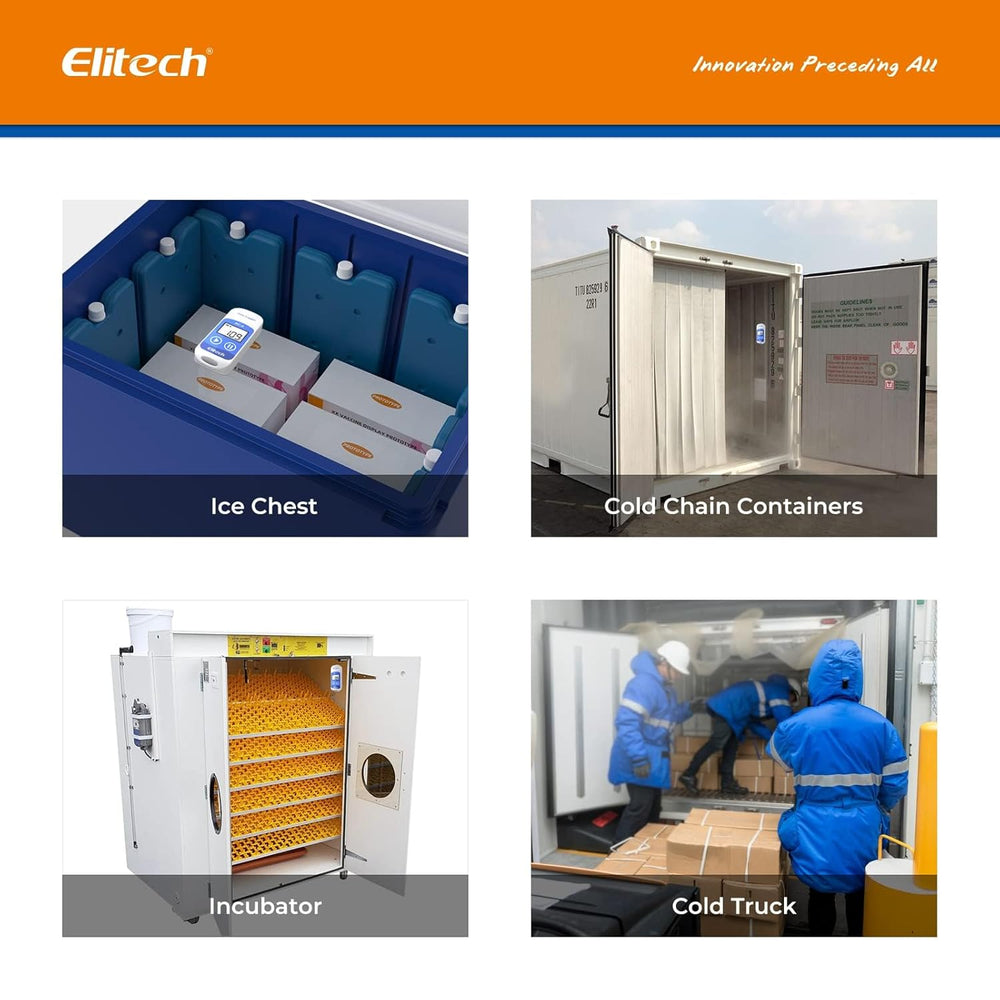

The Elitech RC-5 Temperature and Humidity Data Logger is a compact and reliable solution for monitoring and recording environmental conditions. With a temperature range of -30°C to +70°C and humidity monitoring from 0% to 100% RH, this data logger is ideal for applications in cold chain logistics, medical storage, pharmaceutical transportation, and food safety monitoring.

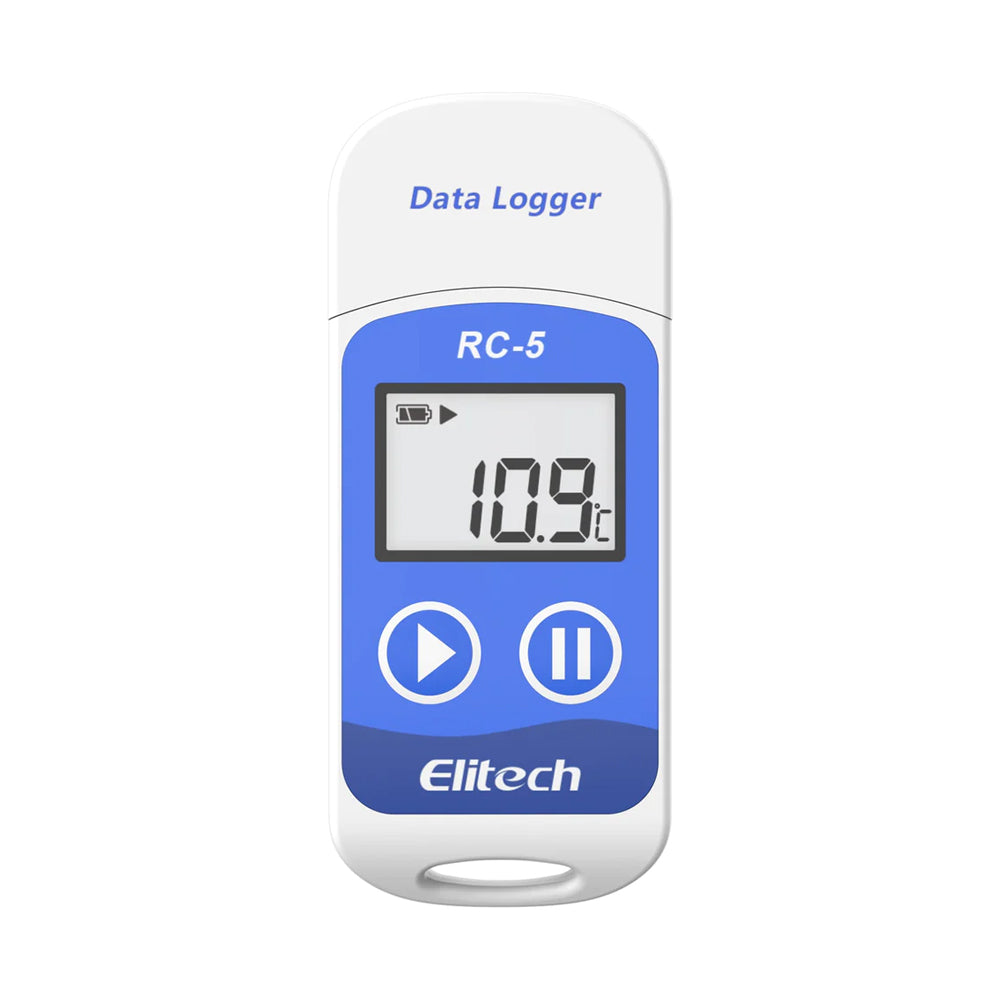

The RC-5 features an LCD display for real-time monitoring of temperature, humidity, logging status, and battery level. With a large memory capacity of 32,000 readings and customizable sampling intervals, it provides precise and comprehensive data tracking.

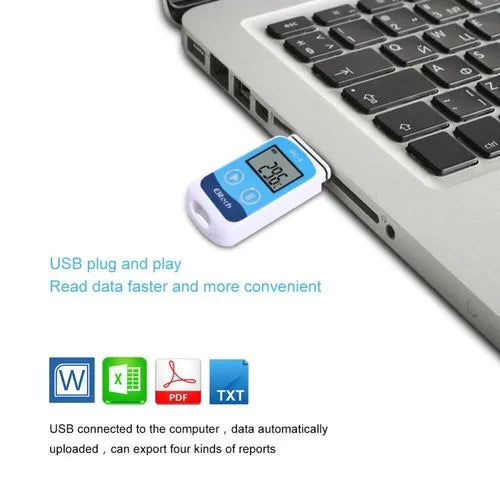

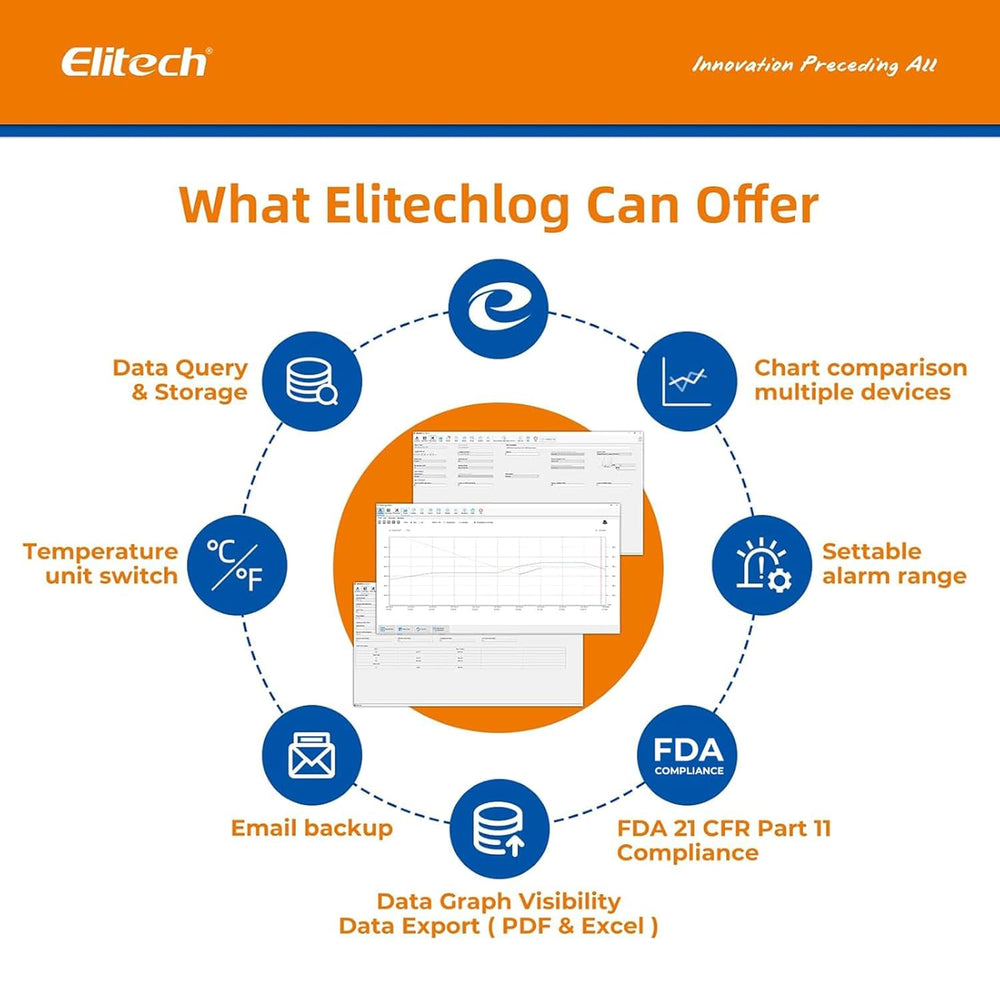

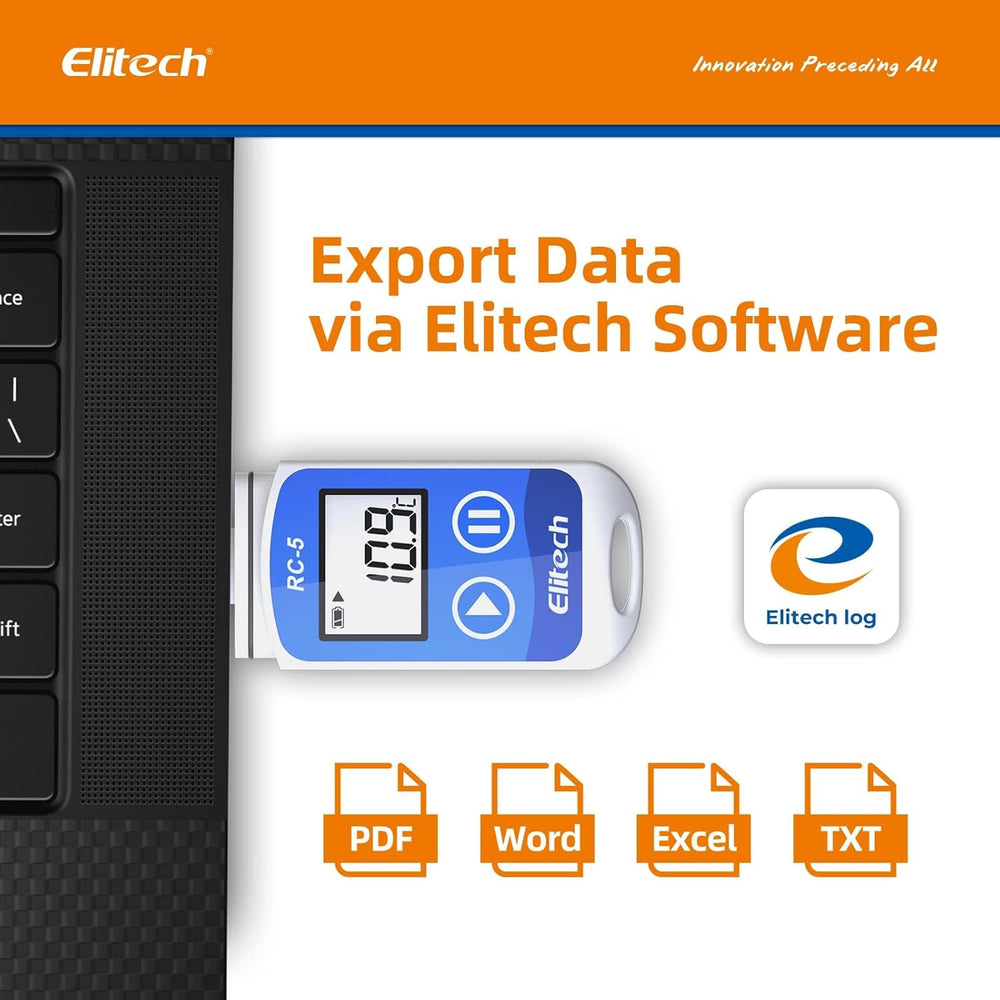

Equipped with a built-in USB interface, the RC-5 eliminates the need for additional cables, enabling seamless data transfer to a computer. The device automatically generates PDF and Excel reports, simplifying compliance with regulatory requirements and ensuring easy documentation.

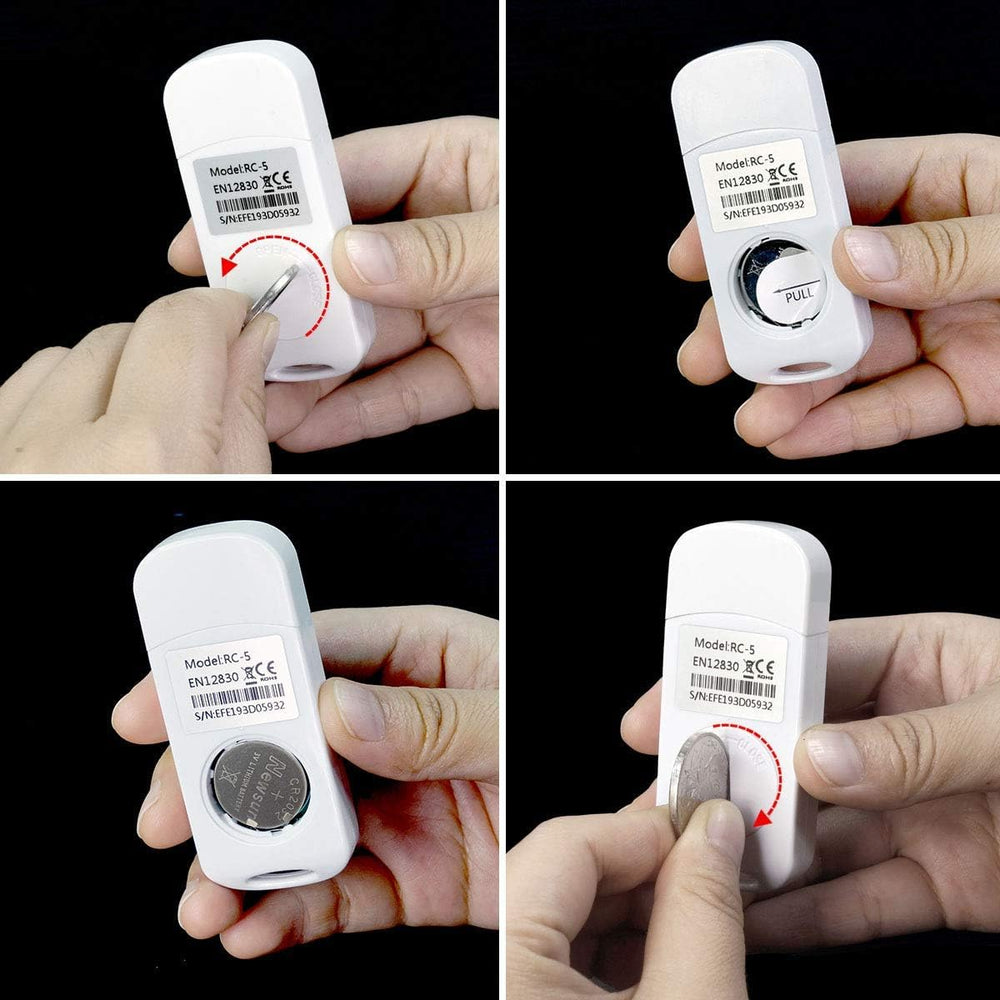

The CR2032 replaceable battery ensures long-term operation, with a life of up to 6 months under normal usage. Its compact design makes it easy to deploy in storage units, transport vehicles, or laboratories.

Whether for maintaining quality control in sensitive industries or monitoring environmental conditions in real time, the Elitech RC-5 offers a reliable, user-friendly, and cost-effective solution.
