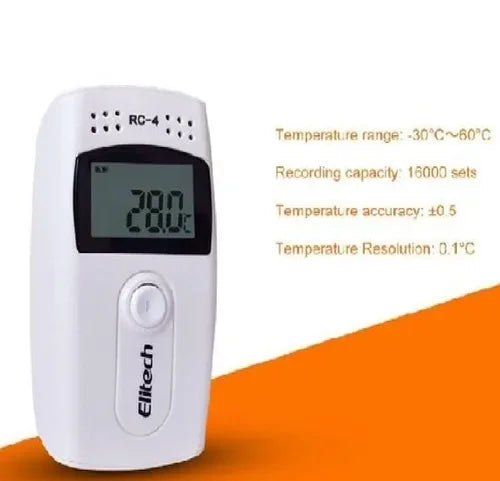

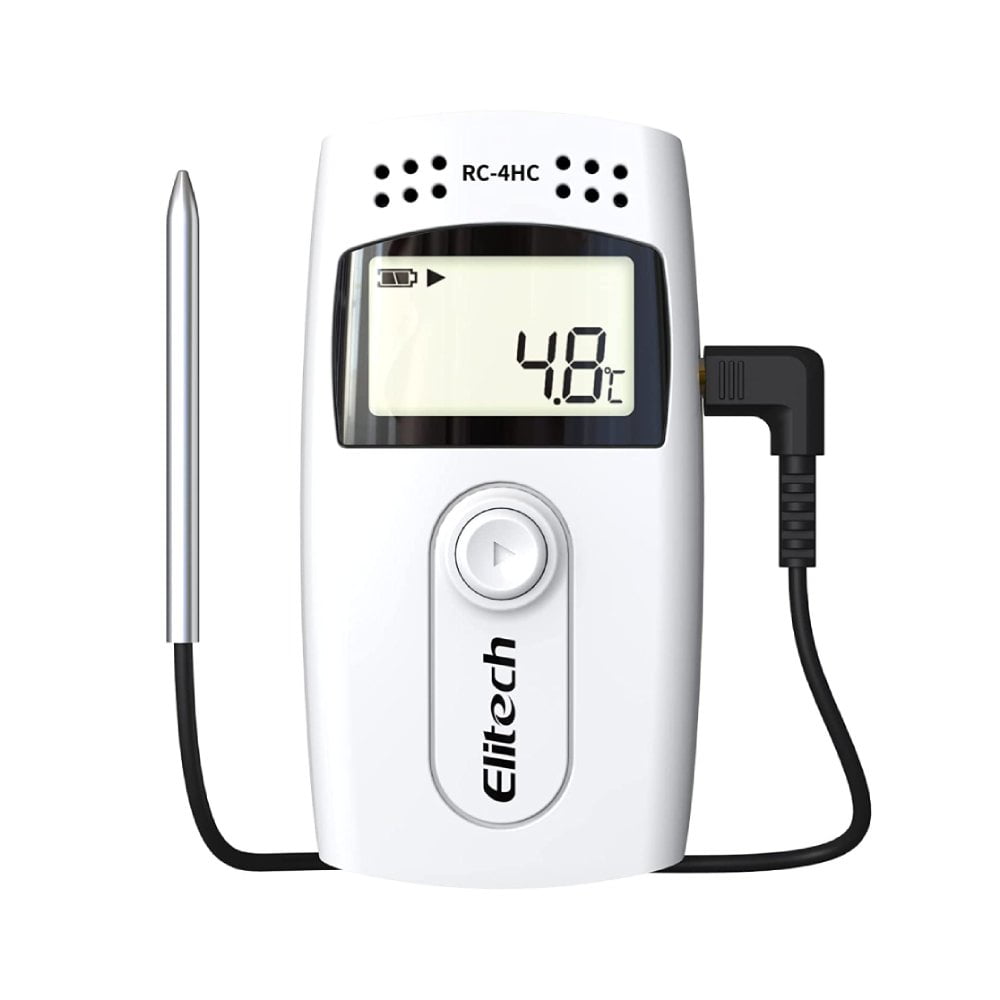

Real Instruments Elitech RC-4 High-Precision Temperature Data Logger with Wide Measurement Range, Large Memory Capacity, USB Connectivity, LCD Display, Replaceable Battery & Automatic PDF/Excel Report Generation for Cold Chain, Medical, Food & Industrial

Elitech RC-4 Temperature Data Logger Specifications:

Temperature Measurement

• Range: -30°C to +70°C (-22°F to +158°F)
• Accuracy: ±0.5°C (-20°C to +40°C); ±1.0°C (outside -20°C to +40°C)
• Resolution: 0.1°C

Memory Capacity

• Stores up to 16,000 temperature readings

Sampling Interval

• User-configurable from 10 seconds to 24 hours

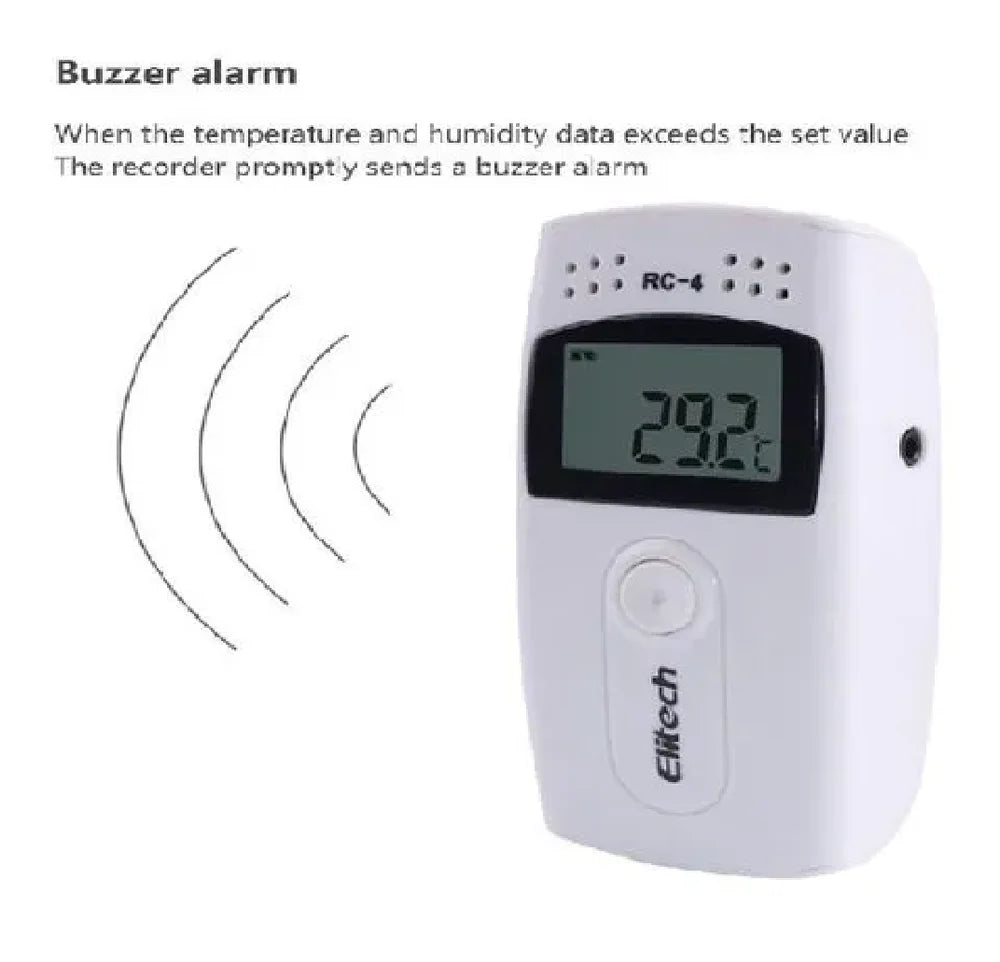

Alarm Settings

• Programmable high/low temperature limits
• Visual alarm indicators

Power Supply

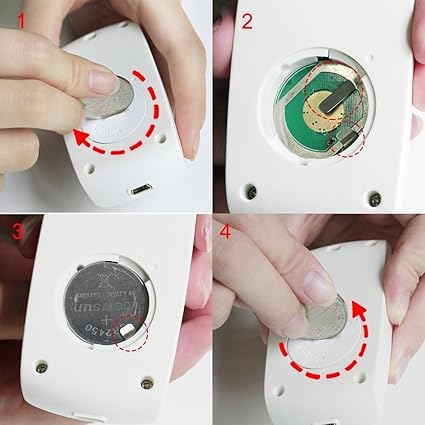

• CR2450 replaceable lithium battery
• Battery life: Up to 6 months (depending on usage)

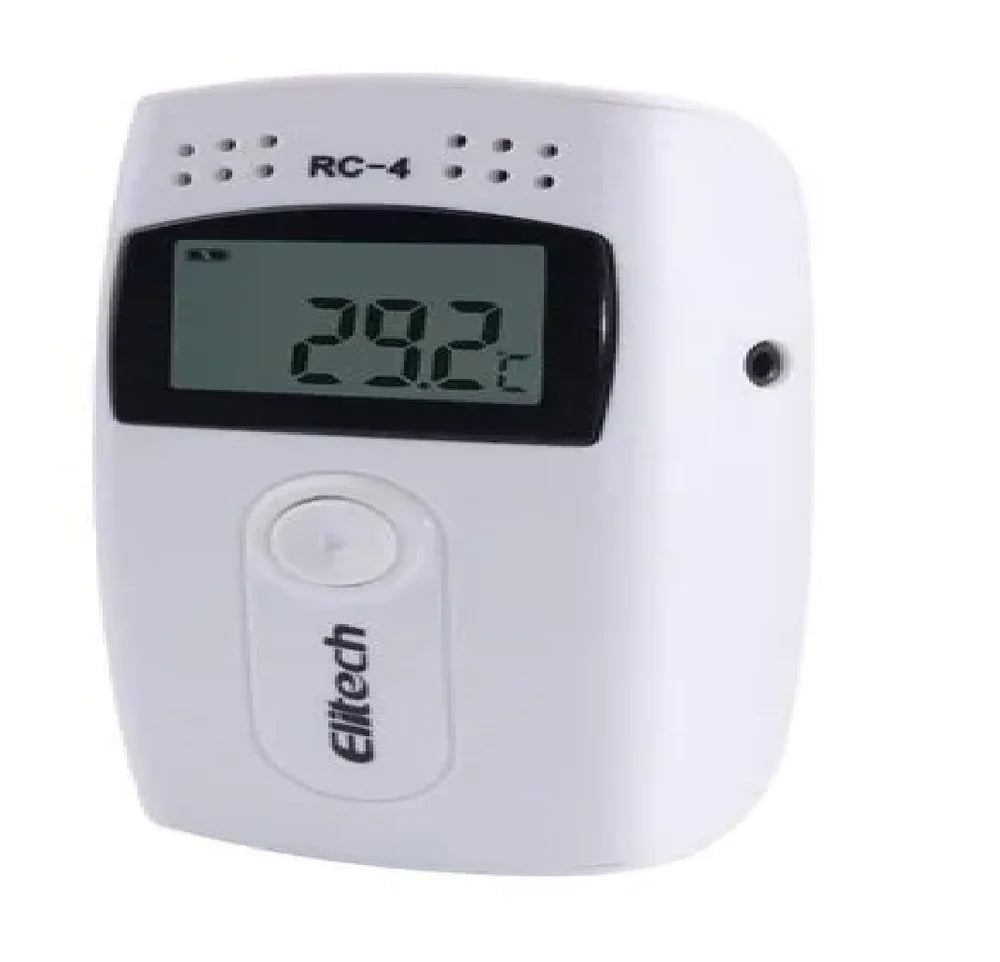

Display

• LCD screen showing current temperature, logging status, and alarm indicators

Connectivity

• USB interface for data transfer to PC or laptop
• No additional cables needed

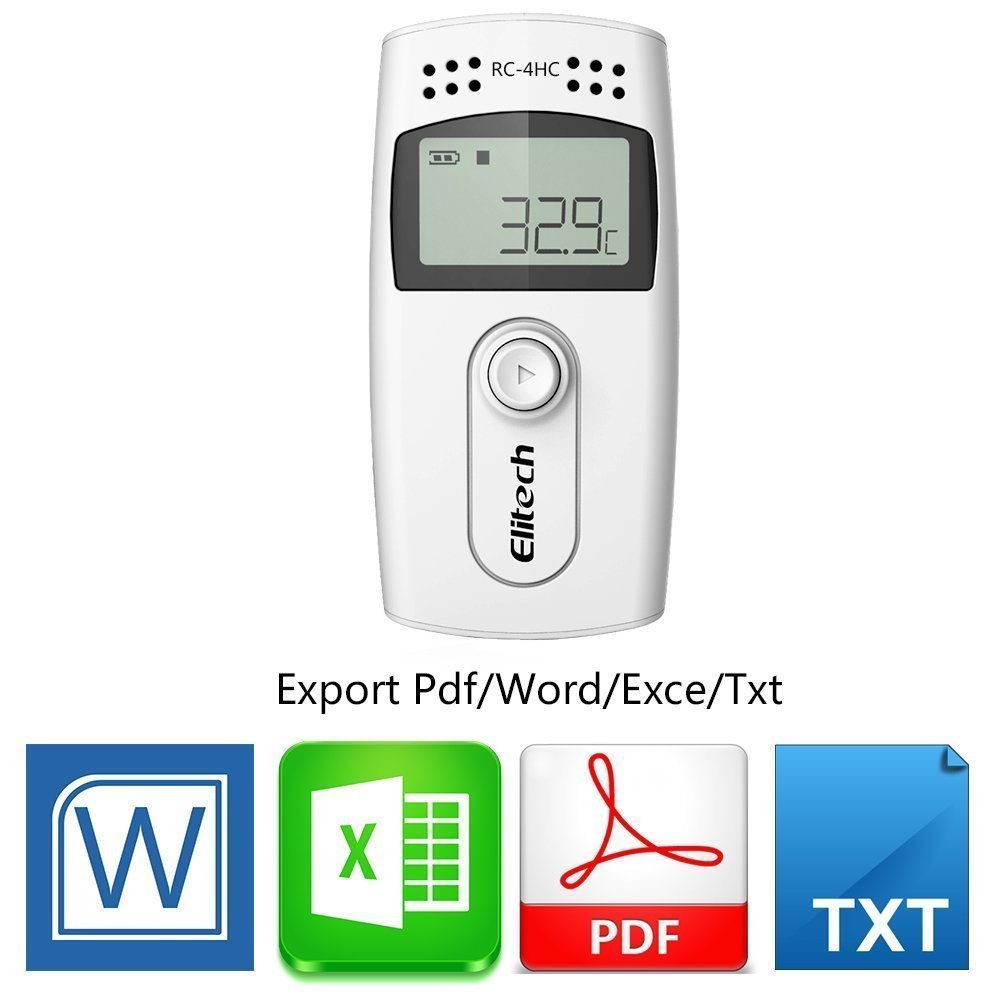

Report Generation

• Automatically generates PDF and Excel reports upon connection to a computer

Operating Conditions

• Temperature: -30°C to +70°C (-22°F to +158°F)
• Humidity: 0% RH to 85% RH (non-condensing)

Dimensions

• 86mm x 40mm x 14mm (3.39 x 1.57 x 0.55 inches)

Weight

• Approximately 65 grams (2.29 oz)

Certifications

• CE, RoHS compliant

Elitech RC-4 Temperature Data Logger Description:

The Elitech RC-4 Temperature Data Logger is a reliable and compact solution designed to monitor and record temperature variations with high accuracy. With a measurement range of -30°C to +70°C, it is ideal for applications such as cold chain logistics, medical and pharmaceutical storage, food transportation, and industrial environmental monitoring.

Featuring a large LCD screen, the RC-4 provides real-time display of temperature, logging status, and alarm indicators. The memory capacity of 16,000 readings ensures extensive data recording over long periods, while customizable sampling intervals allow precise monitoring tailored to specific needs.

The RC-4 includes a built-in USB interface for direct data transfer to a computer, eliminating the need for additional cables or software installation. Automatic PDF and Excel report generation simplifies record-keeping and compliance with regulatory requirements.

The device is powered by a CR2450 replaceable battery, offering up to 6 months of operation per charge under typical usage conditions. Its compact and lightweight design ensures easy deployment in various environments.

Whether for tracking temperature during transport or ensuring optimal storage conditions, the Elitech RC-4 Temperature Data Logger delivers dependable performance and user-friendly operation.
