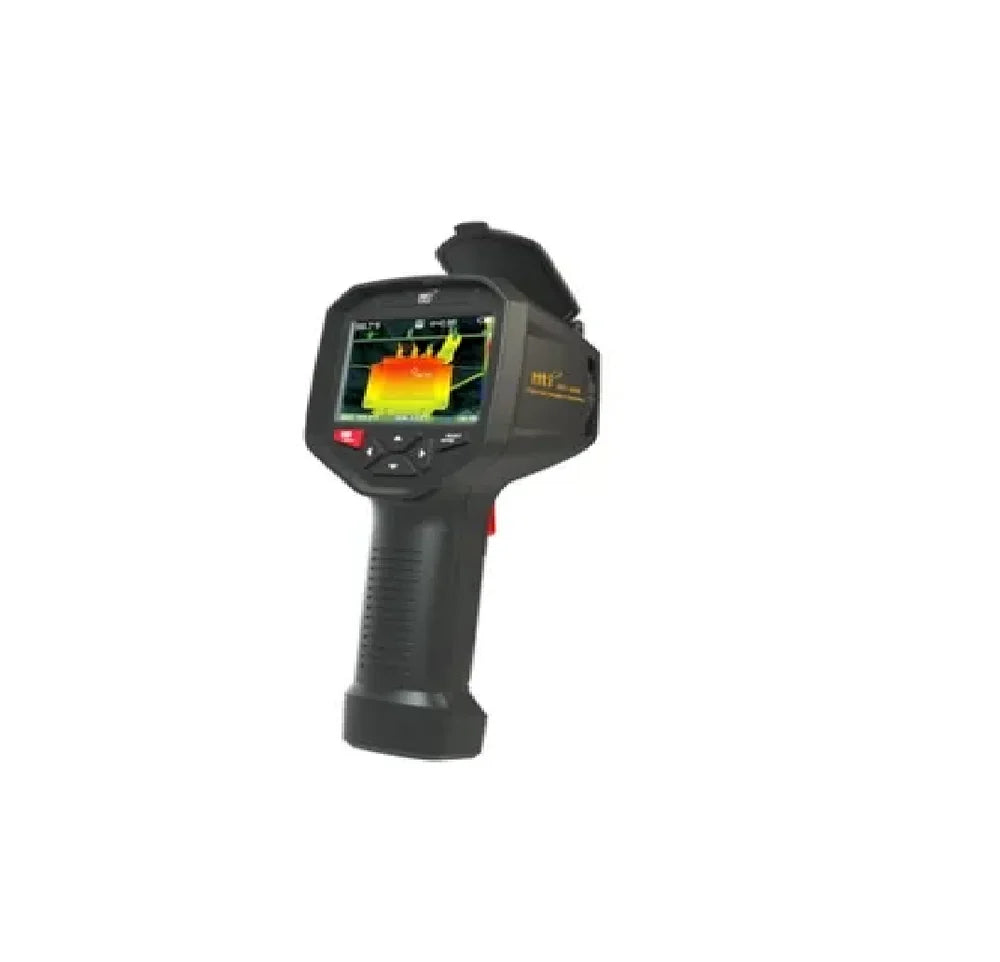

Infrared Thermal Imaging Camera – This IR camera features a 3.5” full-view TFT screen that provides high-definition color clarity with maximum and minimum temperature ranges, current emissivity and other vital and measurable thermal data.

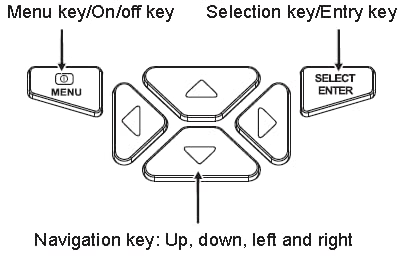

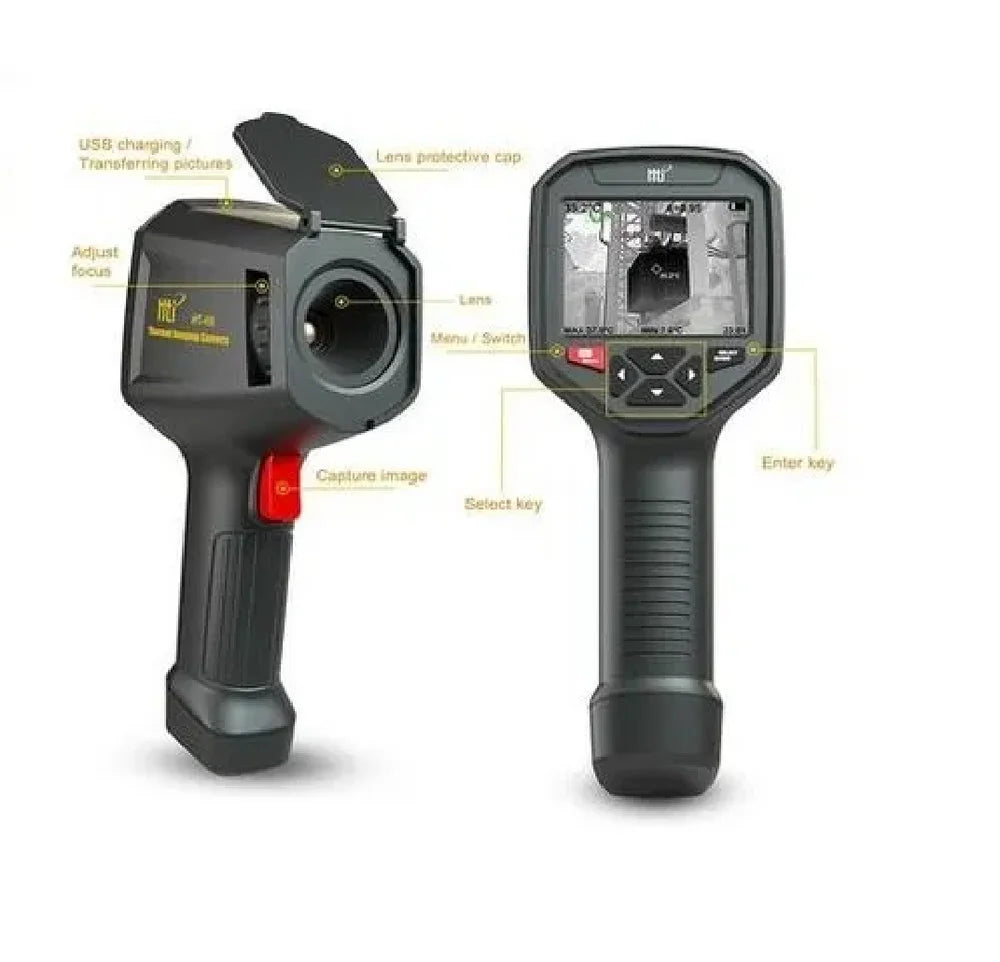

Quick-Access Selection Key – The all-in-one design features an easy-to-grip handle and a key operation system right below the screen to help you capture images, select color palettes, measure temperature range conversion, and manage captured images.
Residential and Industrial Use – With a measurement accuracy of ±3% this thermal imaging gun can be used in a variety of applications including HVAC heating and air, general electrician work, weather measurements, science and farming, and more.

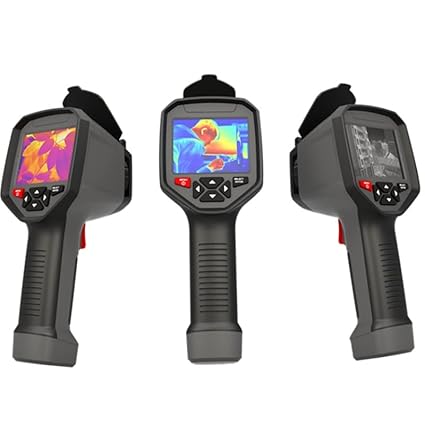

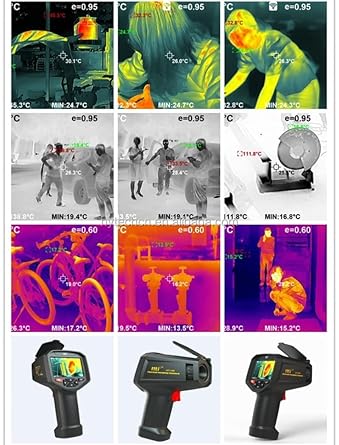

Superior Color Clarity and Accuracy – The HT-series Hti thermal imaging camera lets you quickly swap between rainbow, iron oxide red, cold color, white heat and black heat to give you more accurate data and thermal information.
Specification:
Infrared image resolution 384×288 Connect wifi to the live image on the phone. Field angle/shortest focus length 28.4×21.4/0.19m Display screen 3.5 full angle TFT display screen Display screen resolution 640*480 visible image resolution 300,000 pixel Thermal sensitivity 0.06 Temperature measurement range 20 to 550 4F to 1022F Measurement accuracy2% digital/2 Emissivity Adjustable from 0.01 to 1.0 Frame rate of thermal images 25Hz Wavelength coverage 8-14um Focus mode Focal length adjustment Color palette Rainbow, iron oxide red, cold color, black & white, white & black View option The integration of thermal image with 25% step length and visible image. Storage medium -in 3G (above 20 thousand image stored) File format JPG USB Micro USB 2.0 Power supply Built-in chargeable 26650 battery Automatic power-off time Selectable: 5 minutes/20 minutes/ not power off automatically Product size(length × width × height 97mm×129mm×256mm Work temperature 0 to 45 Storage temperature 20 to 60 Relative humidity 85%RH
