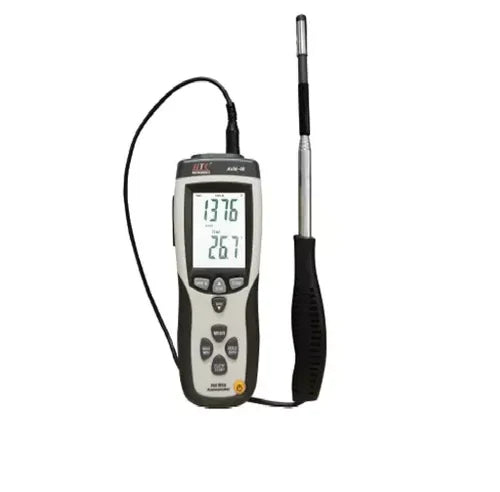

HTC AVM-08 Digital Hot Wire Anemometer with Telescopic Probe, Backlit LCD Display, Multi-Unit Wind Speed & Airflow Measurement in m/s, km/h, ft/min, mph & knots, Temperature Sensing, Max/Min Recording, Data Hold Function, Auto Power Off

The HTC AVM-08 Hot Wire Anemometer is a highly precise instrument designed for measuring low air velocities and airflow in various industrial, HVAC, and environmental applications. Utilizing hot wire technology, this anemometer provides high sensitivity and accuracy, making it ideal for duct airflow measurements, laboratory research, clean room monitoring, and ventilation system analysis. The AVM-08 features a telescopic probe, allowing users to measure airflow in hard-to-reach areas. It also offers wind speed and air temperature measurement, max/min recording, data hold, and a large LCD display for easy readability.

Key Features:

✔ Hot Wire Sensor Technology: Provides highly accurate measurements, even at low air velocities.
✔ Telescopic Probe: Allows for extended reach in ducts and ventilation systems.
✔ Multiple Measurement Units: Displays wind speed in m/s, km/h, ft/min, mph, and knots.
✔ Airflow Calculation: Measures CFM (Cubic Feet per Minute) and CMM (Cubic Meters per Minute).
✔ Temperature Measurement: Integrated sensor for ambient air temperature readings.
✔ Large LCD Display: Clear and backlit screen for visibility in all lighting conditions.
✔ Max/Min Recording: Stores the highest and lowest wind speed values for analysis.
✔ Data Hold Function: Freezes current readings for convenient reference.
✔ Auto Power Off: Conserves battery life when not in use.
✔ Battery-Powered: Uses a 9V battery for long-lasting performance.

Specifications:

🔹 Wind Speed Measurement Range:

• 0.2 – 25.0 m/s
• 0.7 – 90.0 km/h
• 40 – 4900 ft/min
• 0.5 – 55.8 mph
• 0.4 – 48.5 knots
  🔹 Resolution:
• 0.01 m/s (for precise low air velocity measurement)
• 0.1 km/h, 1 ft/min, 0.1 mph, 0.1 knots
  🔹 Accuracy: ±(3% ± 0.1) m/s
  🔹 Airflow Measurement: Available in CFM (Cubic Feet per Minute) and CMM (Cubic Meters per Minute)
  🔹 Temperature Measurement Range: 0°C to 50°C (32°F to 122°F)
  🔹 Temperature Resolution: 0.1°C / 0.1°F
  🔹 Display Type: Large LCD with backlight
  🔹 Probe Type: Hot wire sensor with telescopic extension
  🔹 Power Supply: 9V battery
  🔹 Auto Power Off: Yes
  🔹 Operating Temperature: 0°C – 50°C (32°F – 122°F)
  🔹 Storage Temperature: -10°C – 60°C (14°F – 140°F)
  🔹 Dimensions: Approx. 200 x 85 x 40 mm
  🔹 Weight: Approx. 300g

Applications:

✅ HVAC System Testing: Accurately measures air velocity and flow in ventilation and duct systems.
✅ Industrial Use: Essential for clean rooms, factories, and airflow monitoring in controlled environments.
✅ Environmental Monitoring: Used by meteorologists and environmental researchers for wind studies.
✅ Aerospace & Automotive: Measures airflow for aerodynamic testing and performance analysis.
✅ Indoor Air Quality Testing: Helps optimize airflow in offices, laboratories, and production areas.
✅ Agriculture & Greenhouses: Ensures proper ventilation and air circulation for crop health.

Advantages of the HTC AVM-08 Hot Wire Anemometer:

✔ High Sensitivity for Low Air Velocities: Perfect for precise measurements in delicate environments.
✔ Extensible Telescopic Probe: Ideal for reaching confined or high locations in ductwork.
✔ Multifunctional: Measures wind speed, airflow, and temperature in a single device.
✔ User-Friendly Interface: Simple controls and a clear, backlit LCD screen for easy operation.
✔ Durable & Portable: Compact and lightweight design for easy handling.
✔ Battery-Efficient: Long operational time with an auto shut-off feature to conserve power.

The HTC AVM-08 Hot Wire Anemometer is an essential tool for HVAC professionals, engineers, environmental researchers, and industrial workers who require high-precision air velocity measurements.
