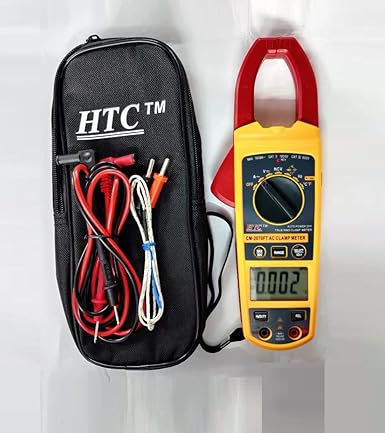

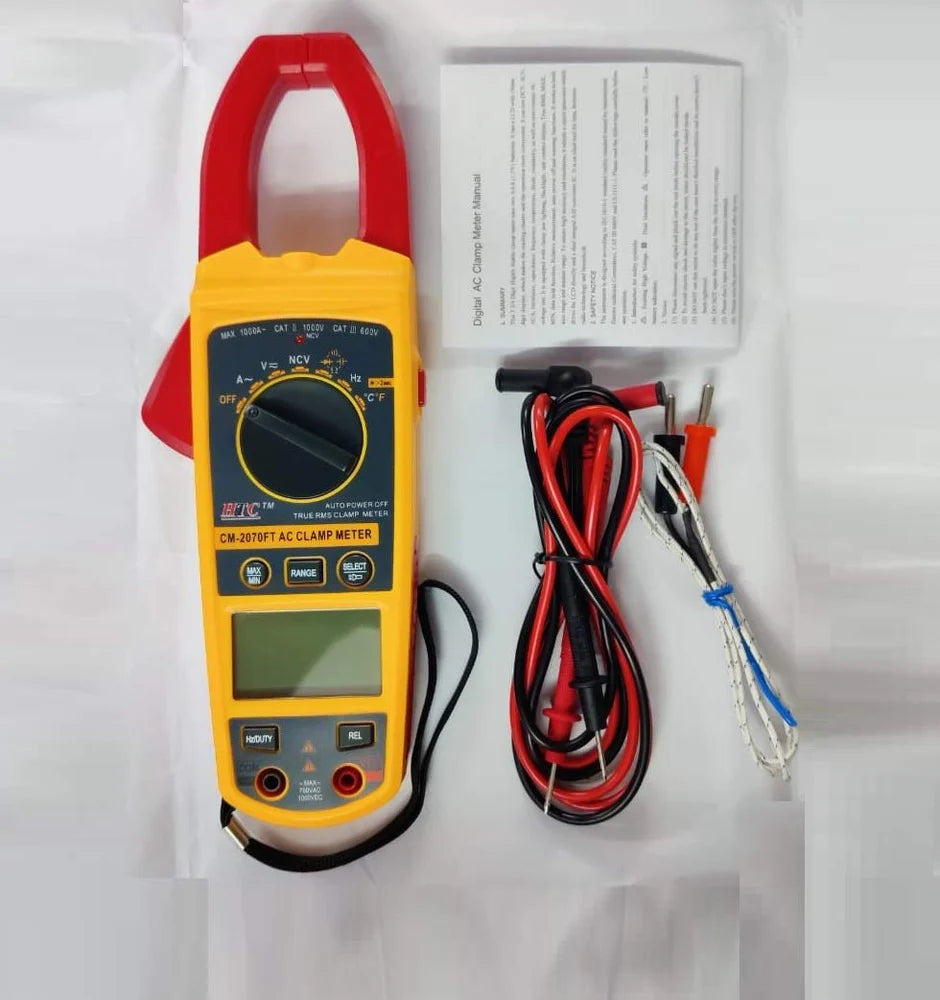

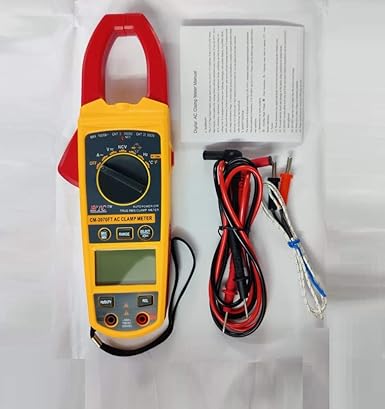

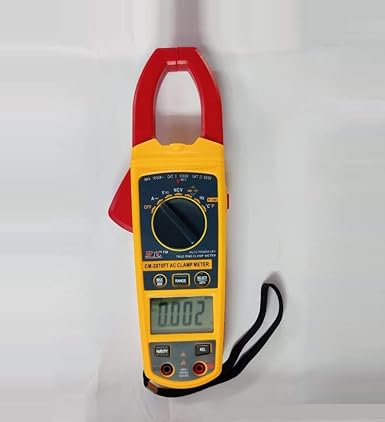

Real Instruments HTC Instrument CM-2070FT Digital Auto Range AC Clamp Meter 1000 Amp with High-Accuracy Current & Voltage Measurement, Advanced Auto-Ranging Function, Wide Measurement Range, Large LCD Display for Electrical, HVAC & Industrial Applications

The HTC 2070 Clamp Meter is a high-performance, digital clamp meter designed for precise measurement of AC/DC current, voltage, and resistance in various electrical and industrial applications. This versatile tool features an auto-ranging function, allowing for automatic adjustment of the measurement range, and a large LCD display for clear readings. With its clamp-on design, it is capable of measuring current without the need to break the circuit, making it ideal for safe and easy measurements in tight spaces. The HTC 2070 is designed for professionals working in electrical troubleshooting, HVAC systems, industrial maintenance, and automotive testing.

Key Features:

✔ Measurement Range:

• AC/DC Current: 0 to 200 A
• AC/DC Voltage: 0 to 600 V
• Resistance: 0 to 20 MΩ
  ✔ Auto-Ranging Function: Automatically selects the correct range for easier and more accurate measurements.
  ✔ Large LCD Display: Easy-to-read screen with backlight for clear visibility in low light.
  ✔ Data Hold Function: Freeze the current measurement on the display for easy reference.
  ✔ Continuity Testing: Provides an audible beep when continuity is detected, ensuring accurate circuit checks.
  ✔ Overload Protection: Prevents damage to the meter when the input exceeds the maximum rating.
  ✔ Compact and Lightweight: Ergonomically designed for comfortable use and portability.
  ✔ Clamp-On Measurement: Allows for current measurement without the need to disconnect the circuit.
  ✔ AC/DC Voltage Measurement: Measures both alternating and direct voltage with high accuracy.
  ✔ Built-In Jaw Opening: Wide enough to measure larger conductors or cables.
  ✔ Safety Rated: Designed to meet CAT III 600V safety standards for reliable and secure operation.
  ✔ Low Battery Indicator: Alerts the user when the battery needs replacing.

Specifications:

🔹 AC/DC Current Measurement:

• Range: 0 – 200 A
• Resolution: 0.1 A
• Accuracy: ±1.5% ±5 digits (AC), ±2.0% ±5 digits (DC)

🔹 AC/DC Voltage Measurement:

• Range: 0 – 600 V
• Resolution: 0.1 V
• Accuracy: ±1.0% ±3 digits (AC), ±1.0% ±2 digits (DC)

🔹 Resistance Measurement:

• Range: 0 – 20 MΩ
• Resolution: 0.01 Ω
• Accuracy: ±1.5% ±3 digits

🔹 Display Type: Large LCD display with backlight
🔹 Safety Category: CAT III 600V
🔹 Jaw Opening: 30 mm
🔹 Data Hold Function: Yes
🔹 Continuity Test: Audible beep
🔹 Overload Protection: Yes
🔹 Power Supply: 2 x AAA batteries (included)
🔹 Operating Temperature: 0°C – 40°C (32°F – 104°F)
🔹 Storage Temperature: -10°C – 50°C (14°F – 122°F)
🔹 Dimensions: 245 mm x 78 mm x 37 mm
🔹 Weight: Approx. 300g

Applications:

✅ Electrical Troubleshooting: Ideal for electricians to check wiring and diagnose faults in circuits.
✅ HVAC Systems: Measures electrical parameters in heating, ventilation, and air conditioning systems.
✅ Industrial Maintenance: Useful for maintaining industrial equipment and monitoring electrical parameters.
✅ Automotive Testing: Helps diagnose electrical issues in vehicles.
✅ Home Appliances & Circuitry: Safe for measuring electrical components in household appliances.

Advantages of the HTC 2070 Clamp Meter:

✔ Ease of Use: The auto-ranging feature simplifies operation for users, reducing the need to manually select ranges.
✔ Wide Measurement Range: Suitable for a variety of electrical applications with current, voltage, and resistance measurements.
✔ Safety Certified: CAT III 600V safety rating for use in industrial environments.
✔ Compact & Portable: Lightweight design ensures convenience and portability on the job.
✔ Accurate & Reliable: Provides precise readings for both AC and DC parameters.

The HTC 2070 Clamp Meter is an essential tool for professionals in the electrical, HVAC, and industrial fields, offering convenience, accuracy, and safety in one versatile device.
