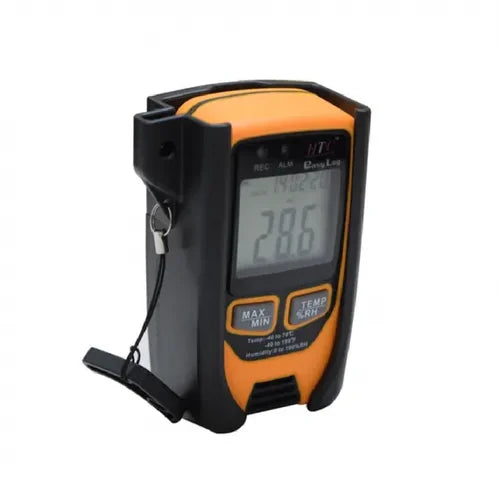

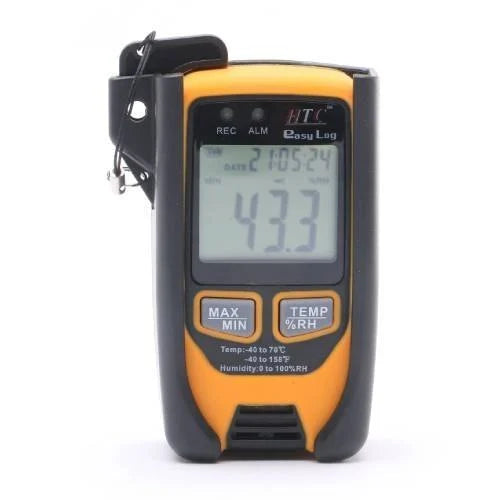

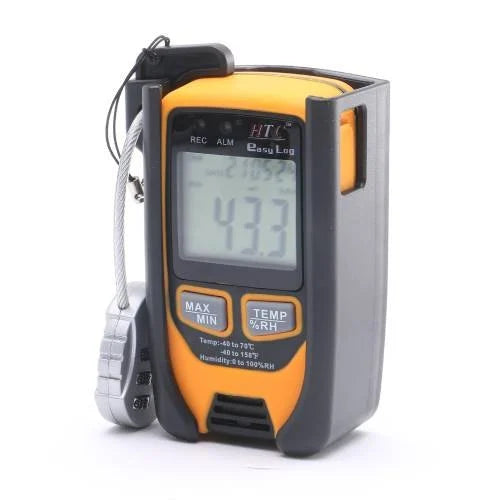

Real Instruments HTC Easy Log High-Precision Temperature and Humidity Data Logger with Wide Measurement Range, Large Memory Capacity, Customizable Sampling Intervals, USB Connectivity, LED Indicators, Replaceable Battery, and Automatic Report Generation

HTC Easy Log Temperature and Humidity Data Logger Specifications:

Temperature Measurement

• Range: -40°C to +85°C (-40°F to +185°F)
• Accuracy: ±0.5°C (-20°C to +40°C); ±1.0°C (outside -20°C to +40°C)
• Resolution: 0.1°C

Humidity Measurement

• Range: 0% RH to 100% RH
• Accuracy: ±3% RH (20% to 80% RH); ±5% RH (outside 20% to 80% RH)
• Resolution: 0.1% RH

Memory Capacity

• Stores up to 16,000 temperature and humidity readings

Sampling Interval

• User-configurable from 1 minute to 24 hours

Alarm Settings

• Programmable high/low limits for both temperature and humidity
• Visual and audible alarm indicators

Power Supply

• Replaceable lithium battery (CR2032)
• Battery life: Up to 12 months (depending on usage)

Connectivity

• USB interface for data transfer to a PC or laptop
• No additional software required

Report Generation

• Automatic report generation in PDF and Excel format upon connection to a computer

Display

• Simple LED indicators showing current temperature and humidity status

Operating Conditions

• Temperature: -40°C to +85°C (-40°F to +185°F)
• Humidity: 0% RH to 85% RH (non-condensing)

Dimensions

• 90mm x 40mm x 15mm (3.54 x 1.57 x 0.59 inches)

Weight

• Approximately 50 grams (1.76 oz)

Certifications

• CE, RoHS compliant

HTC Easy Log Temperature and Humidity Data Logger Description:

The HTC Easy Log Temperature and Humidity Data Logger is a reliable, user-friendly device for monitoring and recording temperature and humidity levels across a wide range of applications. Designed for use in cold chain logistics, medical storage, food transportation, and industrial environments, it provides accurate and consistent readings within a temperature range of -40°C to +85°C and humidity levels from 0% to 100% RH.

The Easy Log is equipped with a simple LED display to show real-time temperature and humidity readings, along with a set of visual and audible alarms that trigger when preset limits are exceeded. The 16,000 data point memory ensures that large amounts of data can be logged over extended periods, with sampling intervals that can be tailored to fit specific needs.

Data transfer is seamless with the USB connectivity feature, allowing the logger to plug directly into a PC or laptop. No extra software is required, and automatic PDF or Excel report generation simplifies data analysis and ensures compliance with industry standards.

The replaceable CR2032 lithium battery offers up to 12 months of operation, making the HTC Easy Log a reliable tool for long-term monitoring. With its compact size and robust design, it is easily deployable in various environments that require continuous tracking of temperature and humidity.

For precise, easy-to-use, and cost-effective environmental monitoring, the HTC Easy Log Temperature and Humidity Data Logger is an excellent choice.
