Real Instruments HTC PM-6102 Digital Manometer - Ultra-Precision Pressure Measurement Instrument with Multi-Unit Compatibility, Backlit LCD Display, Compact Ergonomic Design, and Enhanced Accuracy for Monitoring up to 2 PSI

Real Instruments HTC PM-6102 Digital Manometer - Ultra-Precision Pressure Measurement Instrument with Multi-Unit Compatibility, Backlit LCD Display, Compact Ergonomic Design, and Enhanced Accuracy for Monitoring up to 2 PSI

Regular price Rs. 2,861.00
Regular price Sale price Rs. 2,861.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

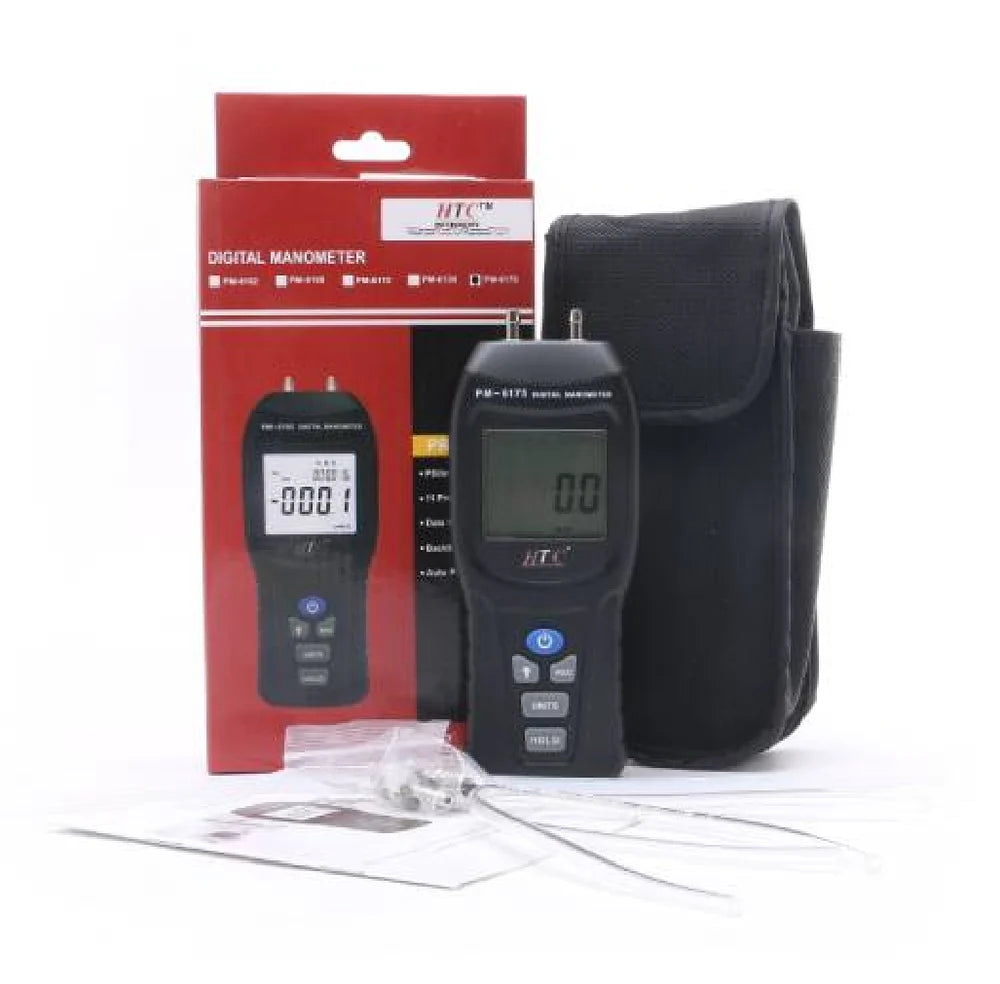

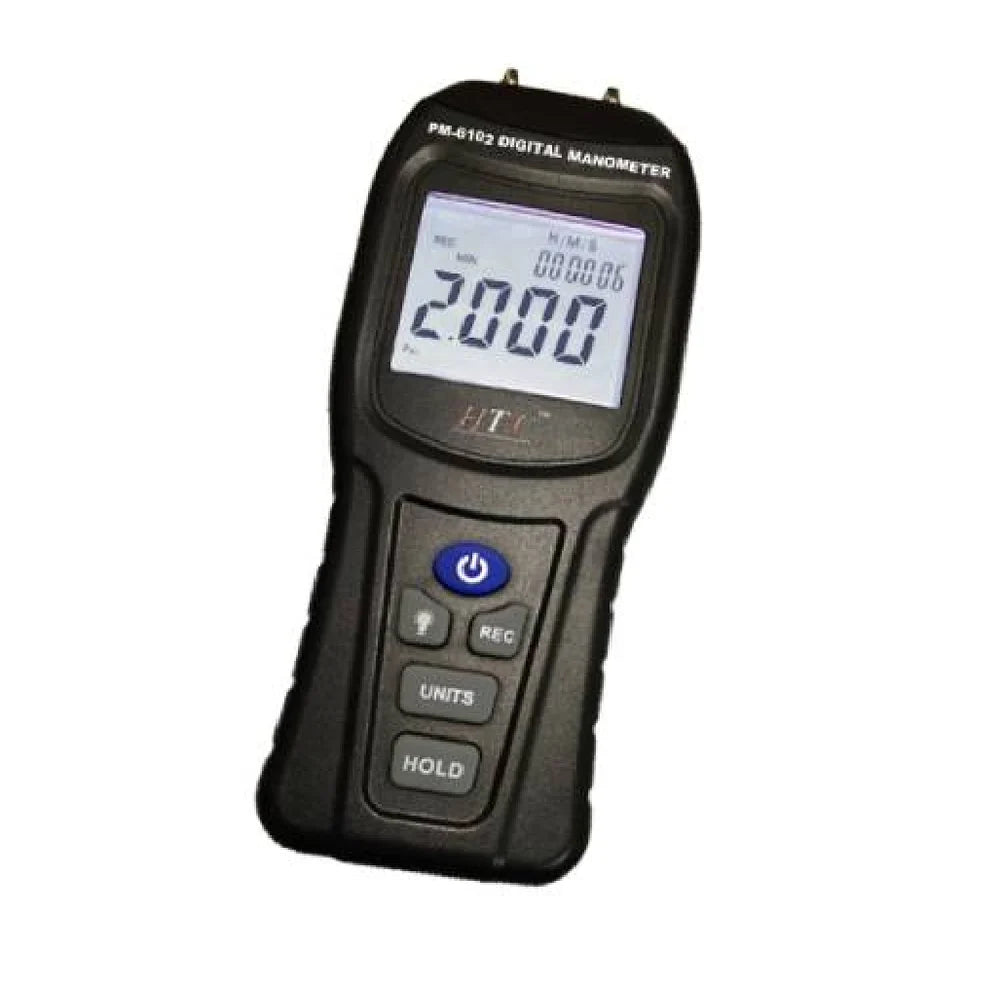

The HTC PM-6102 Digital Manometer is a precision instrument designed for accurate pressure measurements up to 2 PSI. It offers versatility with 11 selectable pressure units, including psi, inches of water (inH₂O), and millibar (mbar). The device features a backlit LCD display for clear readings in low-light conditions and includes an auto power-off (APO) function to conserve battery life. It operates on a 9V (6F22) battery and comes with standard accessories such as a soft carrying case, soft tubes, a manual, and metal gas mouths. The manometer's dimensions are 140mm (H) x 20mm (W) x 50mm (D).



Specifications:

  • Pressure Ranges and Resolutions:

    • inH₂O: ±55.40 with 0.01 resolution
    • psi: ±2.000 with 0.001 resolution
    • mbar: ±137.8 with 0.1 resolution
    • kPa: ±13.79 with 0.01 resolution
    • inHg: ±0.407 with 0.001 resolution
    • mmHg: ±103.4 with 0.1 resolution
    • oz/in²: ±32.00 with 0.01 resolution
    • ftH₂O: ±4.612 with 0.001 resolution
    • cmH₂O: ±140.6 with 0.1 resolution
    • kg/cm²: ±0.140 with 0.001 resolution
    • bar: ±0.137 with 0.001 resolution
  • Accuracy: ±0.3% of Full Scale (FS)

  • Linearity/Hysteresis: ±0.1% FS

  • Repeatability: ±0.25% FS

  • Pressure Connector: 1/8" (3.18mm) quick connector

  • Over Range Indication: ERR1 or ERR2

  • Operating Temperature: 0°C to 40°C

  • Storage Temperature: -10°C to 60°C

  • Power Supply: 9V (6F22) battery
