Real Instruments HTC PM-6105 Digital Manometer - High-Precision Pressure Measurement Device with Multi-Unit Capability, Backlit LCD Display, Compact Design, and Enhanced Portability for Accurate Monitoring up to 5 PSI
Real Instruments HTC PM-6105 Digital Manometer - High-Precision Pressure Measurement Device with Multi-Unit Capability, Backlit LCD Display, Compact Design, and Enhanced Portability for Accurate Monitoring up to 5 PSI

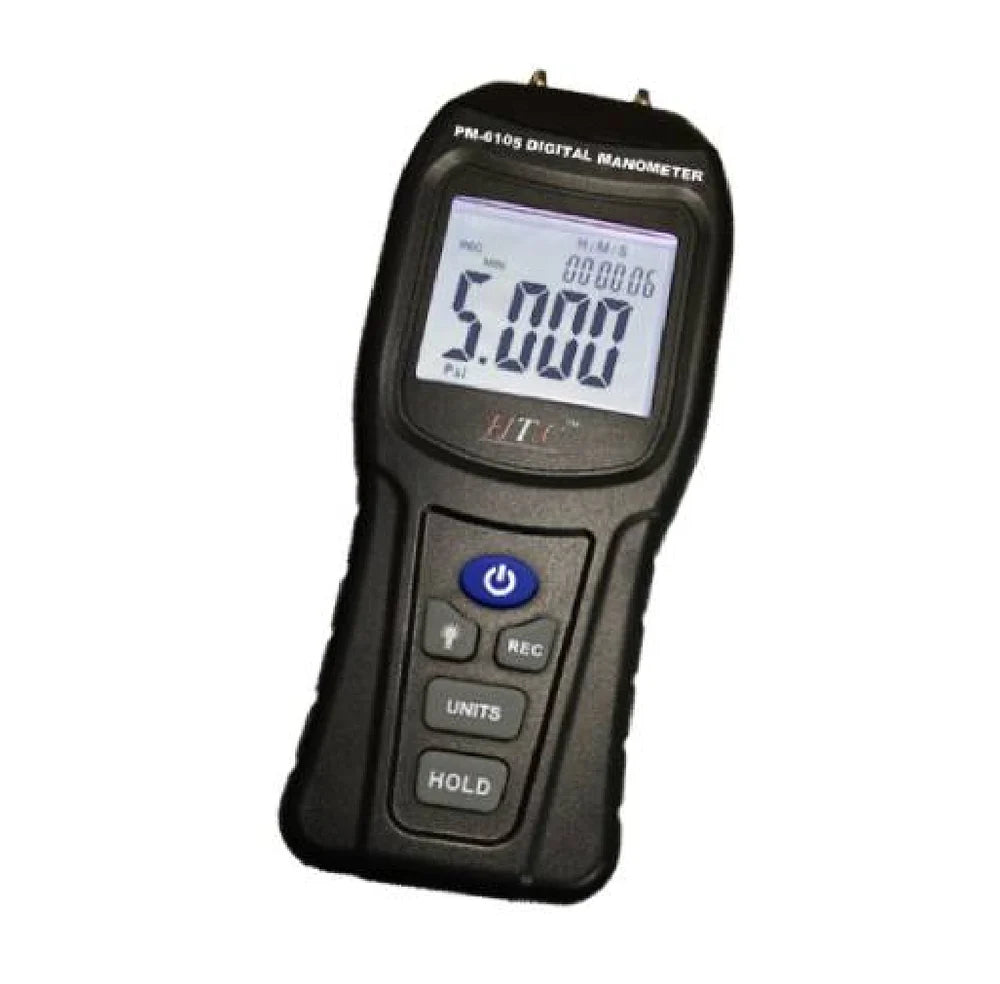

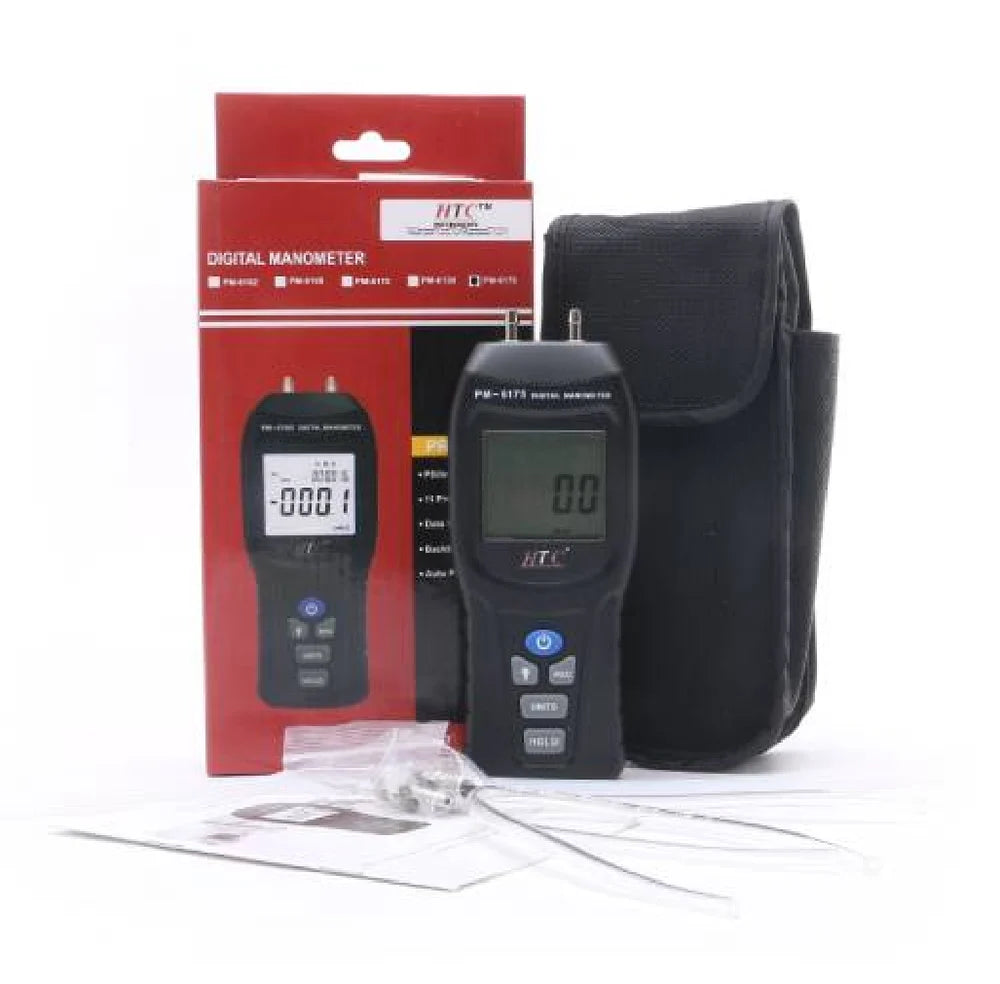

The HTC PM-6105 Digital Manometer is a precision instrument designed for accurate pressure measurements up to 5 PSI. It offers versatility with 11 selectable pressure units, including psi, inches of water (inH₂O), and millibar (mbar). The device features a backlit LCD display for clear readings in low-light conditions and includes an auto power-off (APO) function to conserve battery life. It operates on a 9V (6F22) battery and comes with standard accessories such as a soft carrying case, soft tubes, a manual, and metal gas mouths. The manometer's dimensions are 140mm (H) x 20mm (W) x 50mm (D).
Specifications:
-
Pressure Ranges and Resolutions:
- inH₂O: ±138 with 0.1 resolution
- psi: ±5.000 with 0.001 resolution
- mbar: ±344.7 with 0.1 resolution
- kPa: ±34.47 with 0.01 resolution
- inHg: ±1.018 with 0.001 resolution
- mmHg: ±258.5 with 0.1 resolution
- oz/in²: ±80 with 1 resolution
- ftH₂O: ±11.53 with 0.01 resolution
- cmH₂O: ±351.5 with 0.1 resolution
- kg/cm²: ±0.351 with 0.001 resolution
- bar: ±2.068 with 0.001 resolution
-
Accuracy: ±0.3% of Full Scale (FS)
-
Linearity/Hysteresis: ±0.1% FS
-
Repeatability: ±0.25% FS
-
Pressure Connector: 1/8" (3.18mm) quick connector
-
Over Range Indication: ERR1 or ERR2
-
Operating Temperature: 0°C to 40°C
-
Storage Temperature: -10°C to 60°C
-
Power Supply: 9V (6F22) battery
