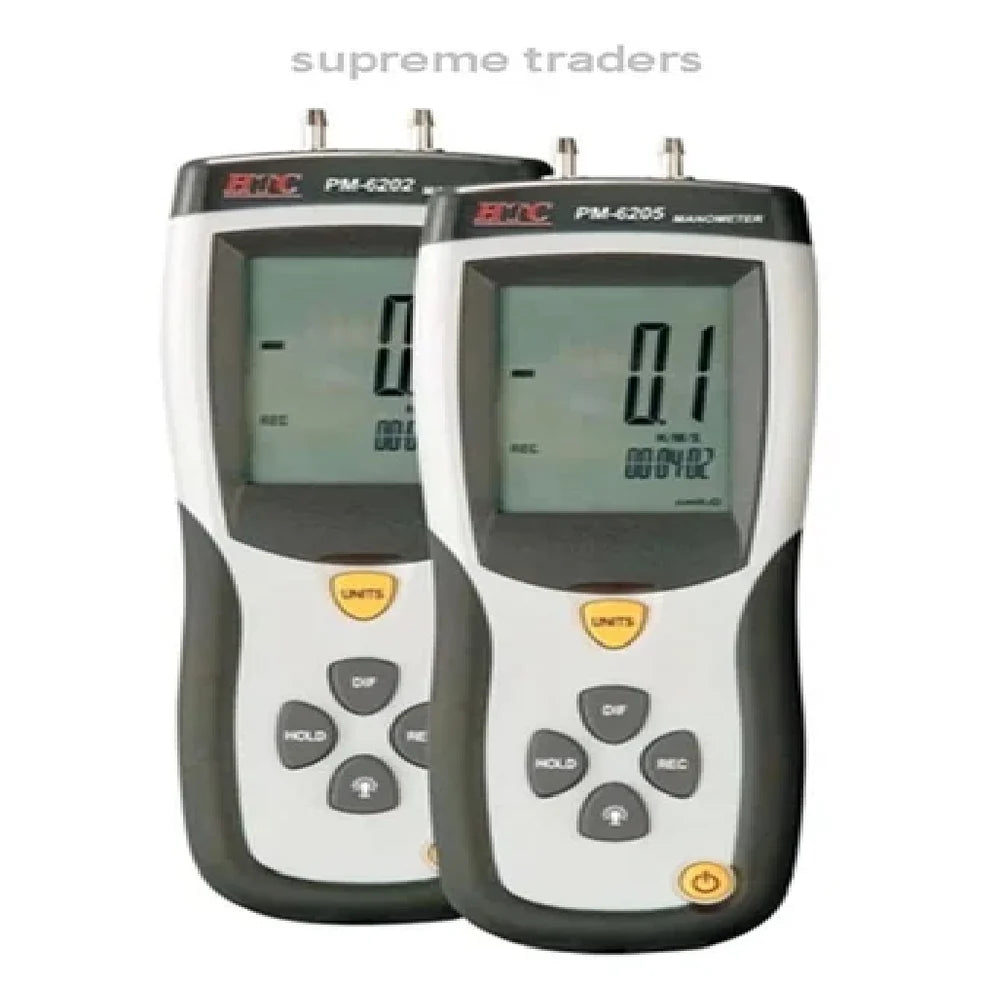

The HTC PM-6205 Digital Manometer is a precision instrument designed for accurate pressure measurements across various units.

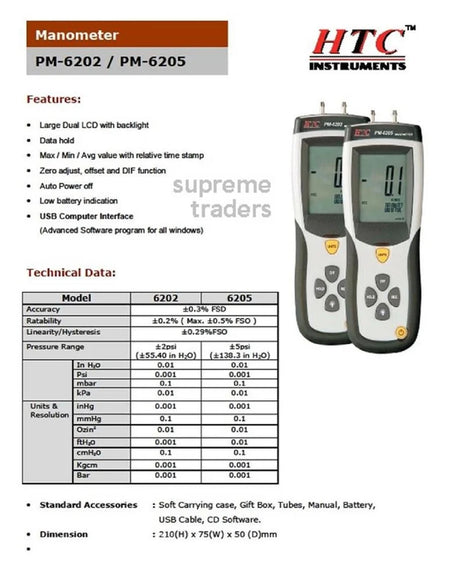

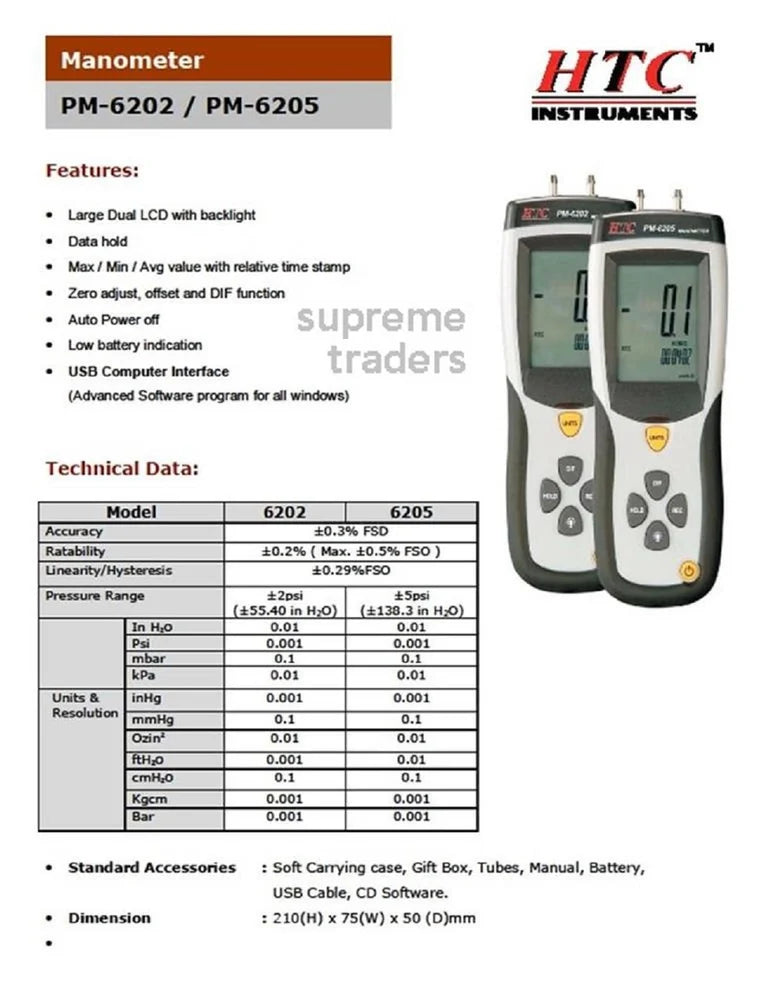

Key Specifications:
- Measurement Units: psi, in H₂O, mbar, kPa, inHg
-
Pressure Ranges:
- in H₂O: ±55.40
- psi: ±2.000
- mbar: ±137.8
- kPa: ±13.79
- inHg: ±4.072
-
Resolution:
- in H₂O: 0.01
- psi: 0.001
- mbar: 0.1
- kPa: 0.01
- inHg: 0.001
- Accuracy: ±0.3% of Full Scale (FS) at 25°C
- Linearity/Hysteresis: ±0.29% FS
- Repeatability: ±0.2%
- Pressure Connector: 1/8" (3.18mm) quick connector
- Over Range Indication: ERR1
- Under Range Indication: ERR2
- Operating Conditions: 0 to 50°C
- Storage Conditions: 10 to 60°C
- Power Supply: 9V (6F22) battery
- Dimensions: 140mm (H) x 20mm (W) x 50mm (D)
Features:
- Large dual LCD with backlight
- Data hold function
- Maximum/Minimum/Average value with relative time stamp
- Zero adjust, offset, and differential function
- Auto power off
- Low battery indication
- USB computer interface with advanced software for Windows
This manometer is suitable for applications requiring accurate pressure measurements in various units, such as HVAC systems, laboratory experiments, and industrial processes.
