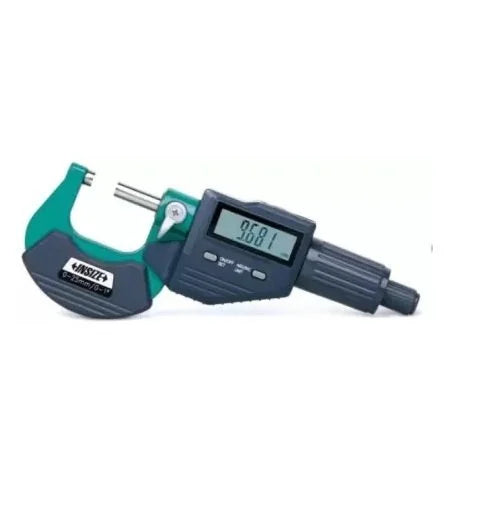

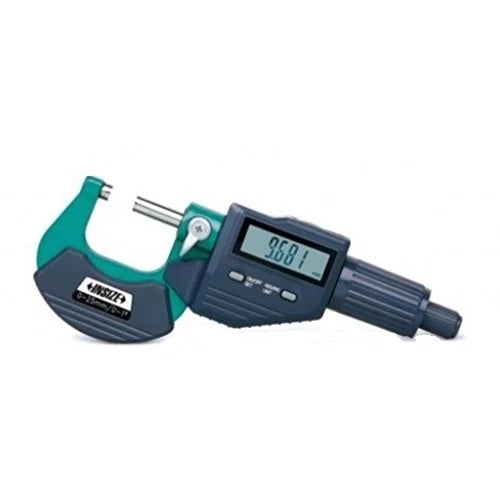

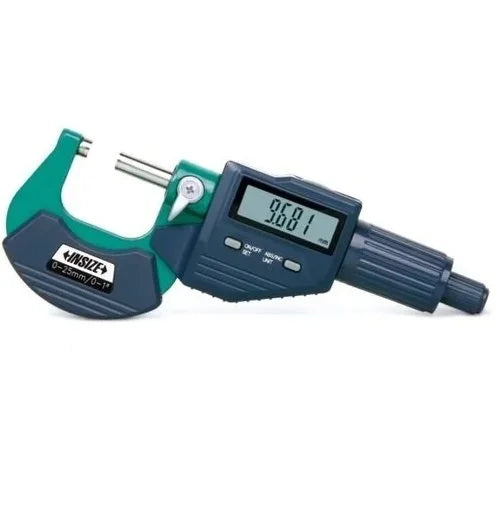

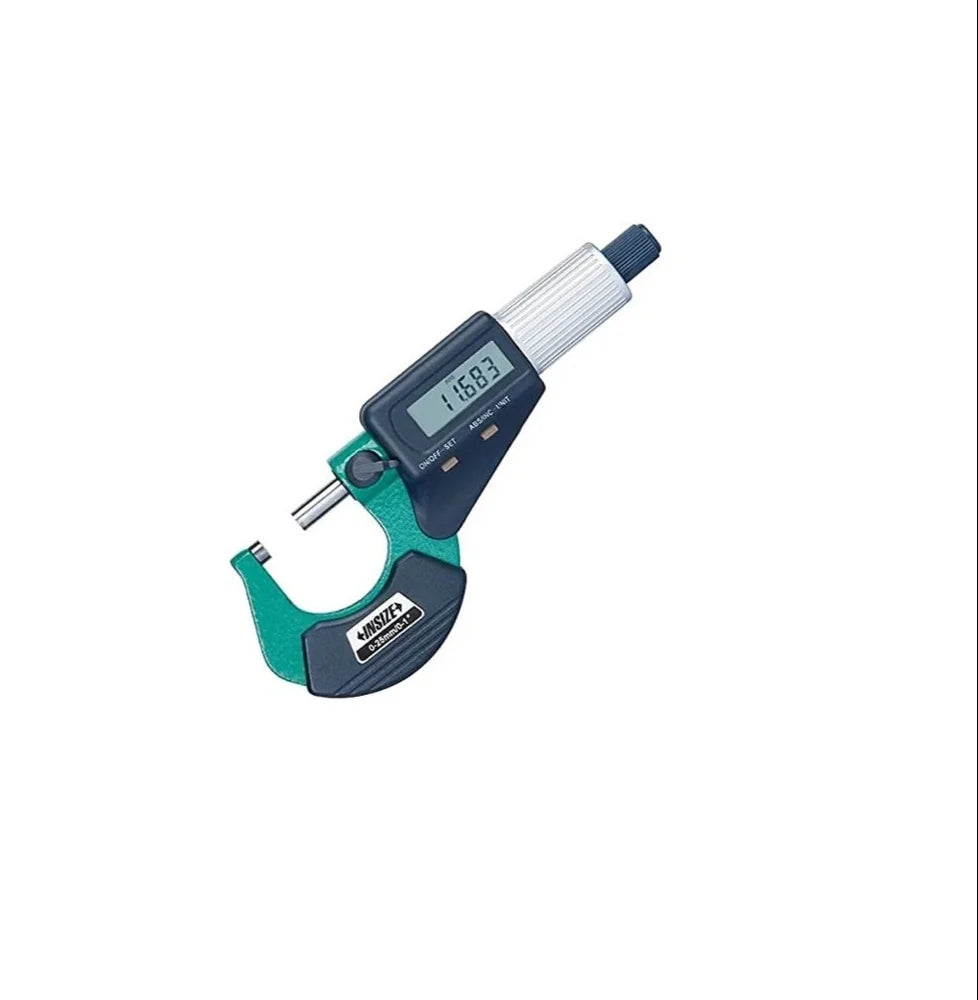

High-Precision Insize 0-25mm Digital Outside Micrometer 3109 with Large LCD Display Dual Unit Conversion Carbide-Tipped Measuring Faces Ratchet Stop Mechanism & Advanced Accuracy for Precision Engineering & Industrial Applications, MM-07

The Insize 0-25 mm Digital Outside Micrometer 3109 is a precision measuring tool designed for highly accurate and reliable measurement of external dimensions. Engineered with advanced digital technology, it provides clear readings on a large LCD display, making it ideal for professional use in workshops, laboratories, and industrial settings. The micrometer offers a measuring range of 0 to 25 mm with a resolution of 0.001 mm, ensuring exceptional accuracy for quality control and detailed inspections. Its durable construction, ergonomic design, and ease of use make it a versatile tool for machinists, engineers, and inspectors.

Specifications:

• Brand: Insize
• Model: 3109
• Measuring Range: 0 – 25 mm
• Resolution: 0.001 mm
• Accuracy: ±0.002 mm
• Display Type: Large LCD digital display
• Measurement Type: Metric and inch (convertible)
• Thimble Type: Ratchet stop for consistent measuring force
• Material: Hardened steel frame with a satin chrome finish
• Anvil and Spindle: Carbide-tipped for durability and precision
• Power Supply: Battery-powered (typically LR44 or equivalent)
• Auto Power-Off: Automatically powers off to conserve battery life
• Zero Setting: Allows easy resetting at any position
• Data Output: Optional USB or RS232 port for data transfer (if available)
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -10°C to 60°C
• Weight: Approx. 250-300 grams

Key Features:

• High Precision: Measures with an accuracy of ±0.002 mm, suitable for detailed inspections.
• Clear Digital Display: Easy-to-read LCD screen for quick and accurate readings.
• Dual Unit Conversion: Metric and inch measurement modes for versatility.
• Durable Build: Hardened steel frame and carbide-tipped measuring faces ensure long-term reliability.
• Ratchet Stop Mechanism: Ensures consistent measuring force for repeatable results.
• Ergonomic Design: Comfortable grip and lightweight construction for extended use.
• Energy Efficient: Auto power-off feature conserves battery life during periods of inactivity.
• Zero Setting: Convenient zero reset at any point for relative measurement.
• Optional Data Output: Allows connection to computers or data loggers for advanced analysis (if equipped).

Applications:

• Precision machining and manufacturing
• Quality control and inspection
• Automotive, aerospace, and engineering industries
• Laboratory measurements and research

Included Accessories:

• Protective storage case
• Calibration wrench
• User manual
• Spare battery

The Insize 0-25 mm Digital Outside Micrometer 3109 combines accuracy, durability, and convenience, making it an essential tool for precise measurement in a wide range of applications.
