Real Instruments Jupiter X Professional Digital Alcohol Breath Tester with Advanced Fuel Cell Sensor Technology, 4.3-Inch Touchscreen Display, Built-in Camera, Thermal Printer, GPS Tracking, 4G Wi-Fi Connectivity, BAC & Large Data Storage Capacity, AT-09

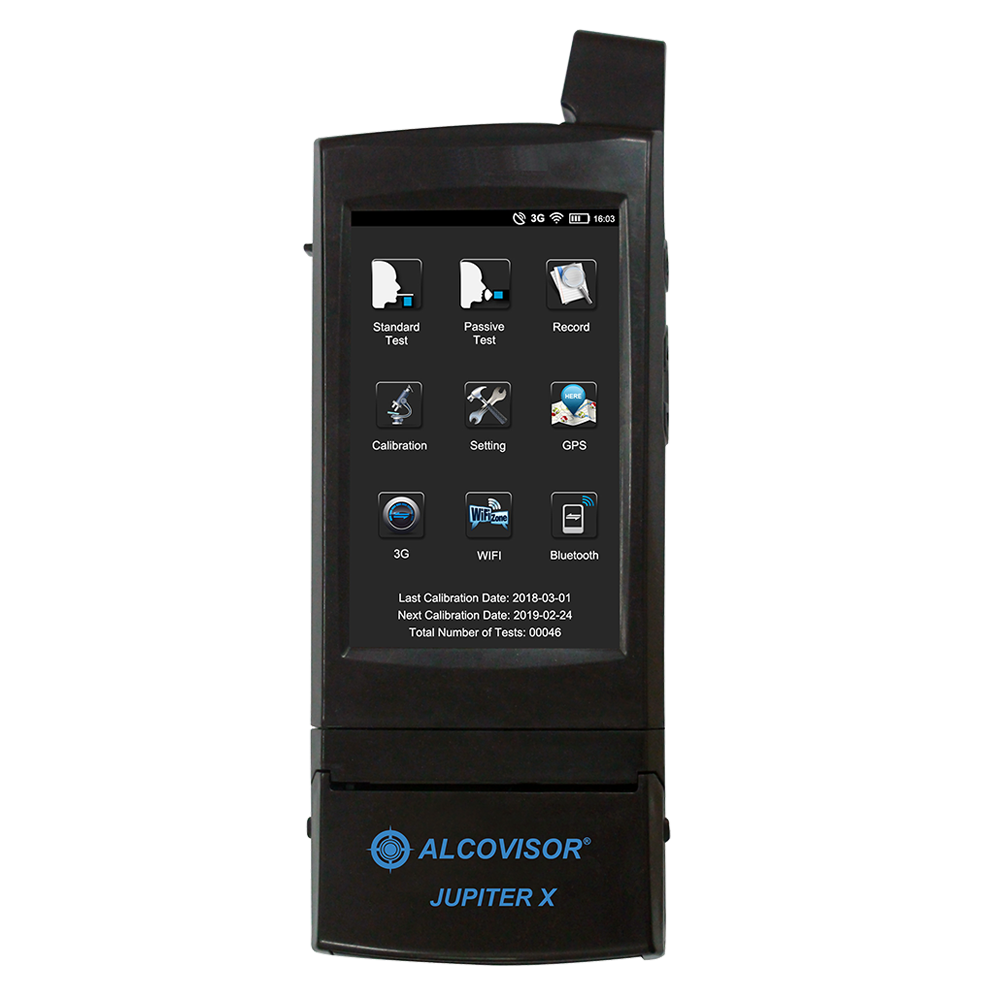

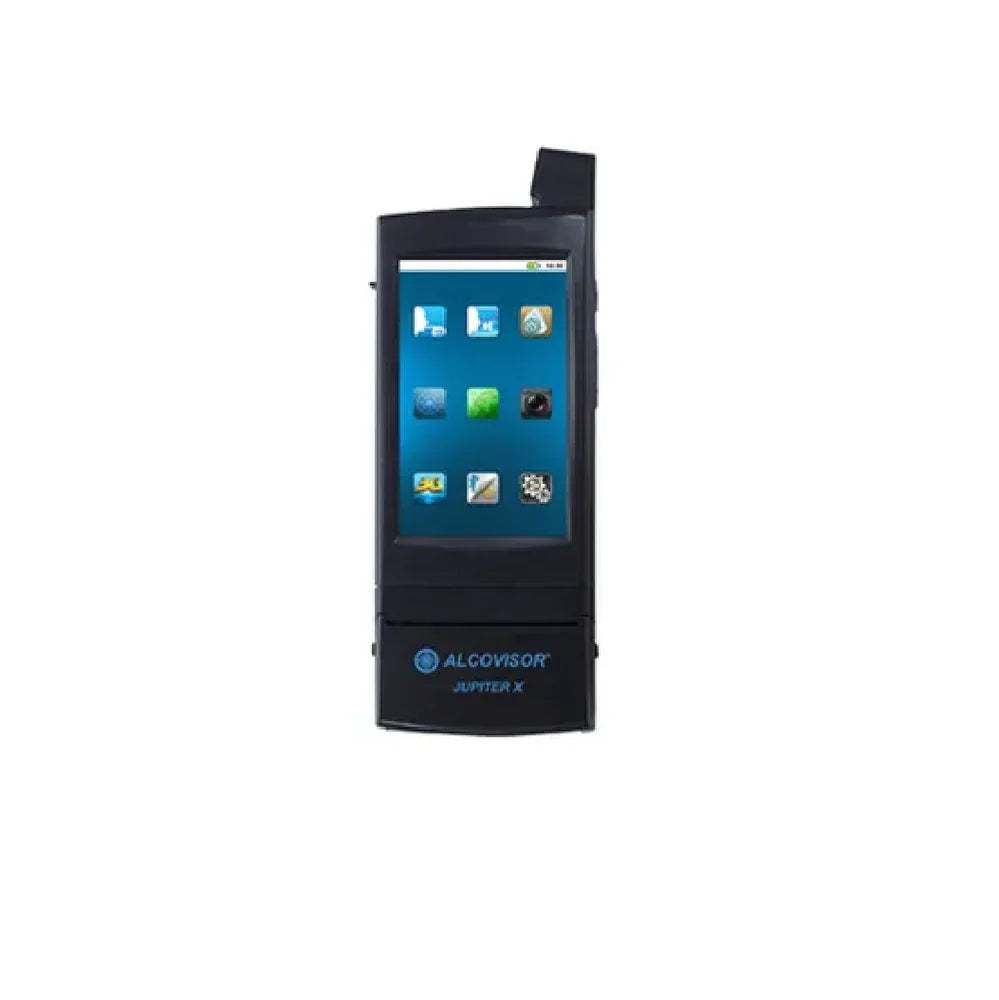

The Alcovisor Jupiter X is an advanced evidential breath alcohol tester designed for precise and efficient measurement of blood alcohol concentration (BAC). Incorporating modern technology, it is suitable for professional use in law enforcement, transportation, and workplace safety.

Key Features:

• Sensor Technology: Utilizes a fuel cell sensor for high accuracy and reliability in alcohol detection.

• Operating System: Runs on Android 5.1, providing a user-friendly interface and compatibility with various applications.

• Display: Equipped with a 4.3-inch TFT color touch screen for clear and intuitive operation.

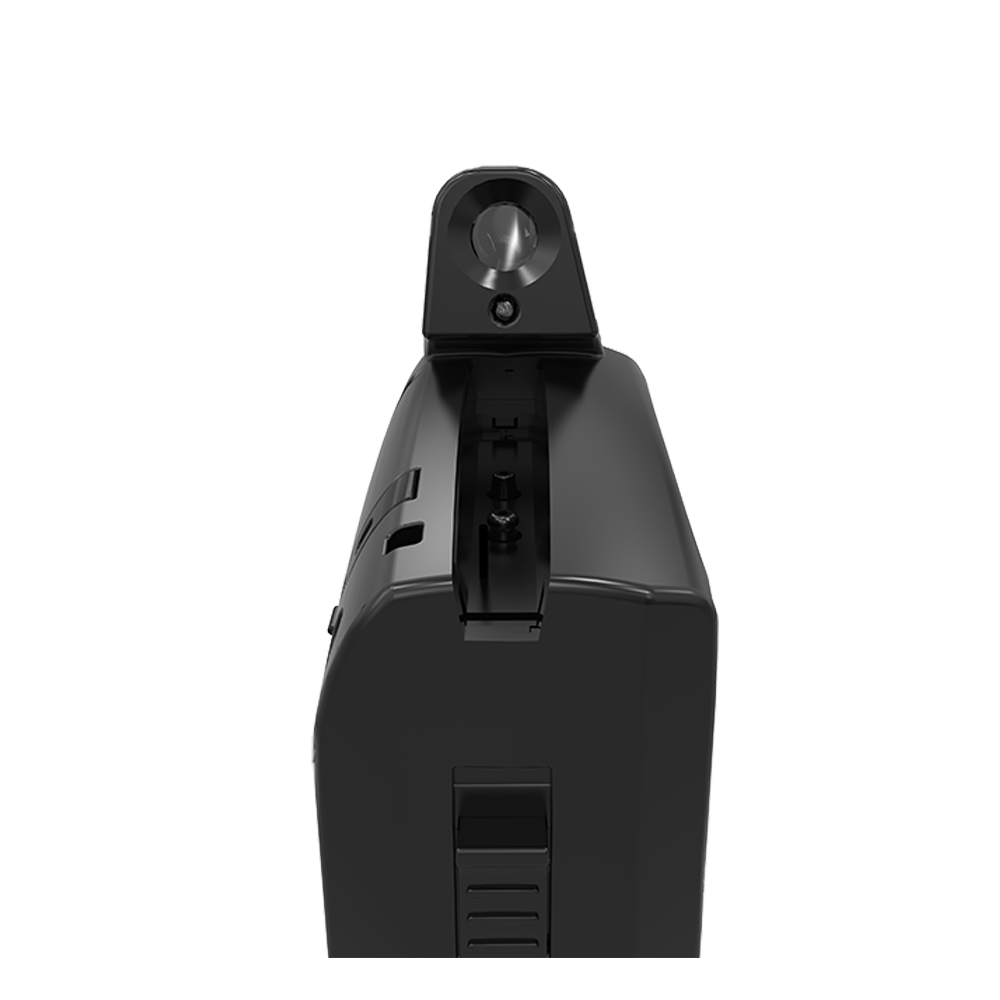

• Camera: Integrated 5-megapixel camera with a 120° wide-angle lens to capture images during testing, enhancing evidential documentation.

• Connectivity: Supports 4G and Wi-Fi for seamless data transmission and connectivity.

• GPS Functionality: Built-in GPS module provides location data, ensuring accurate record-keeping of test locations.

• Printer: Features a built-in thermal printer for immediate printing of test results, facilitating on-site documentation.

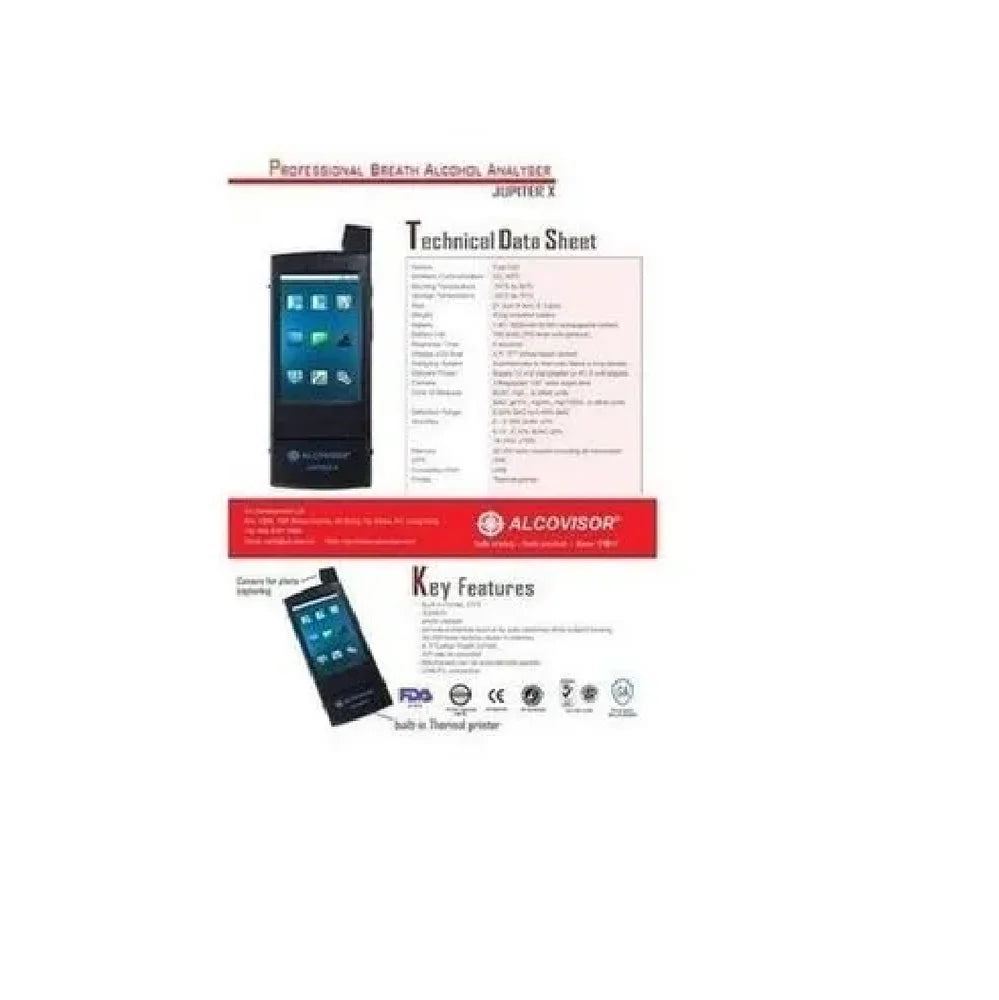

Technical Specifications:

• Measurement Range: 0.00% to 0.40% BAC.

• Accuracy:

  • 0 to 0.10% BAC: ±5%.
  • 0.10 to 0.15% BAC: ±8%.
  • Above 0.15% BAC: ±10%.

• Response Time: Approximately 5 seconds for quick and efficient testing.

• Memory Capacity: Capable of storing up to 100,000 test records, including all relevant information.

• Battery: Powered by a 7.4V, 2,000mAh Li-ion rechargeable battery, supporting up to 700 tests (or 250 tests with printouts) per charge.

• Dimensions: Measures 21.2 cm (length) x 8 cm (width) x 3.6 cm (height), with a weight of 433 grams including the battery, making it portable and easy to handle.

• Operating Temperature: Designed to operate effectively within a temperature range of -10°C to 50°C.

• Storage Temperature: Can be stored safely in temperatures ranging from -30°C to 70°C.

Additional Features:

• Sampling System: Offers both automatic and manual sampling options to accommodate various testing scenarios.

• Units of Measurement: Configurable to display results in various units, including BrAC (mg/L) and BAC (g%, mg/mL, mg/100mL), catering to different regional standards.

• Data Management: Test records can be downloaded to a PC using optional software, facilitating efficient data management and analysis.

The Alcovisor Jupiter X stands out as a comprehensive solution for alcohol testing, combining advanced features with user-friendly design to meet the demands of professional applications.
