Real Instruments Lutron DO-5510 High-Accuracy Dissolved Oxygen Meter, Automatic Calibration, Temperature Compensation, Polarographic Probe, IP65 Waterproof Design for Water Quality Monitoring, Aquaculture, Environmental Testing & Laboratory Research

Lutron DO-5510 Dissolved Oxygen Meter Specifications:

• Measurement Range:

  • Dissolved Oxygen (DO): 0.00 mg/L to 20.00 mg/L
  • Oxygen Saturation: 0.0% to 200.0%
  • Temperature: 0.0°C to 50.0°C (32.0°F to 122.0°F)

• Accuracy:

  • Dissolved Oxygen: ±0.3 mg/L
  • Oxygen Saturation: ±2% of the reading
  • Temperature: ±0.5°C (±0.9°F)

• Resolution:

  • Dissolved Oxygen: 0.01 mg/L
  • Oxygen Saturation: 0.1%
  • Temperature: 0.1°C (0.1°F)

• Probe Type:

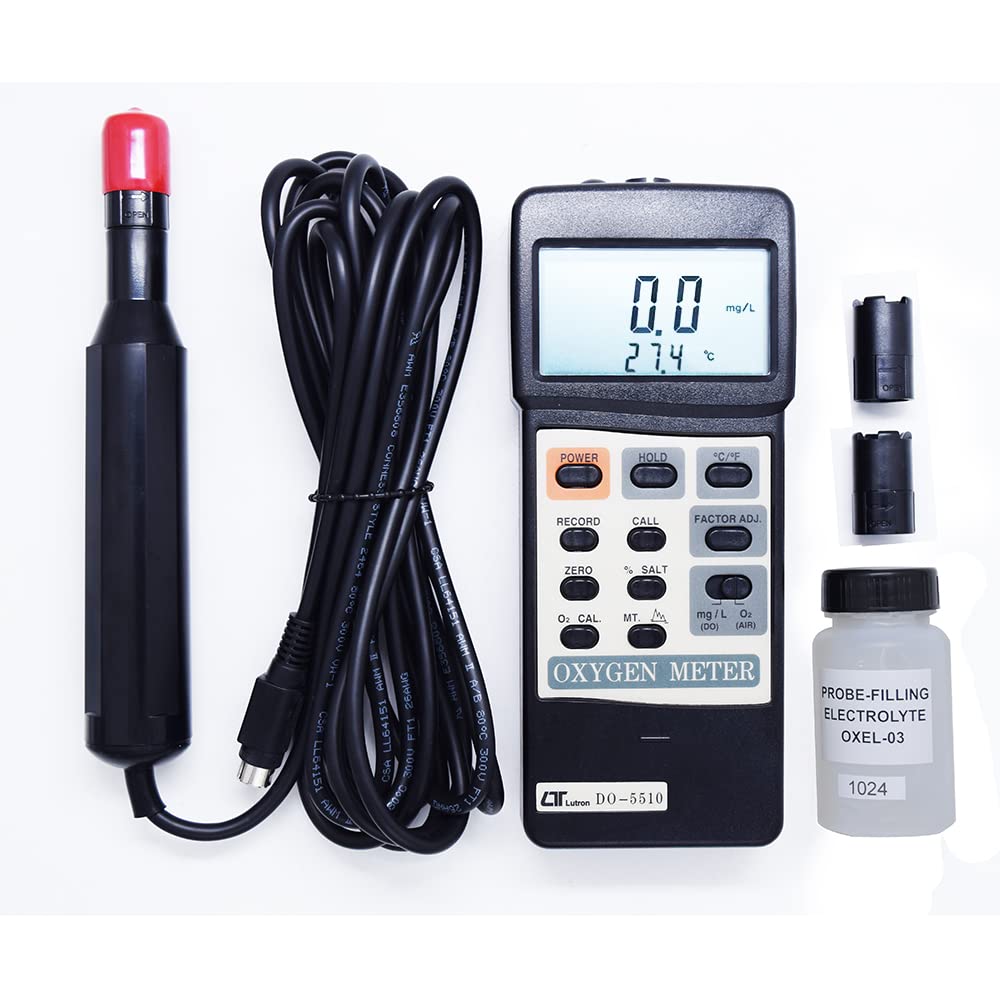

  • Polarographic dissolved oxygen probe with replaceable membrane caps.

• Response Time:

  • T90 (time to reach 90% of the final value): ≤30 seconds at 25°C

• Calibration:

  • Automatic air calibration and zero-point calibration for enhanced accuracy.

• Temperature Compensation:

  • Automatic temperature compensation from 0°C to 50°C.

• Display:

  • Large backlit LCD with dual-display for dissolved oxygen and temperature readings.

• Power Supply:

  • Powered by 4 x AAA batteries or AC adapter for continuous operation.

• Waterproof Rating:

  • IP65 splashproof design, ideal for use in field and lab environments.

• Dimensions:

  • Main Unit: 205mm x 92mm x 40mm (8.07 x 3.62 x 1.57 inches)
  • Probe Cable Length: 4 meters (13.1 feet)

• Weight:

  • Approximately 350 grams (0.77 lbs), including batteries.

Lutron DO-5510 Dissolved Oxygen Meter Description:

The Lutron DO-5510 Dissolved Oxygen Meter is a precise and versatile instrument designed to measure dissolved oxygen levels and temperature in water, making it ideal for a wide range of applications, including aquaculture, environmental monitoring, water treatment, and laboratory research.

With a measurement range of 0.00 to 20.00 mg/L for dissolved oxygen and 0.0% to 200.0% for oxygen saturation, the DO-5510 delivers highly accurate readings, ensuring reliable results. The polarographic probe provides fast and accurate measurements, with a T90 response time of less than 30 seconds, ideal for quick assessments.

The meter features automatic calibration for air and zero points, ensuring ease of use and maintaining accuracy over time. Automatic temperature compensation from 0°C to 50°C ensures that the meter delivers consistent readings despite changes in water temperature.

The large LCD display with backlight enables easy readability of both dissolved oxygen and temperature readings simultaneously. The IP65 splashproof design ensures that the meter can be used in harsh environments without compromising performance.

Powering the Lutron DO-5510 is as easy as using AAA batteries or an AC adapter, providing flexibility for both field and laboratory use. With its robust design, high accuracy, and ease of use, the DO-5510 is the perfect tool for monitoring water quality and managing aquatic systems, environmental research, and water treatment operations.
