Real Instruments Lutron A32 FG-20KG Digital Force Gauge with High Precision Push and Pull Measurement, Multiple Units (kg/lb/N), Peak Hold Function, Overload Protection, Adjustable Response Time & Ergonomic Design for Industrial & Laboratory Applications

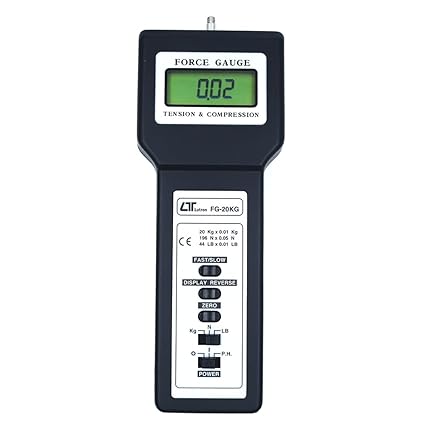

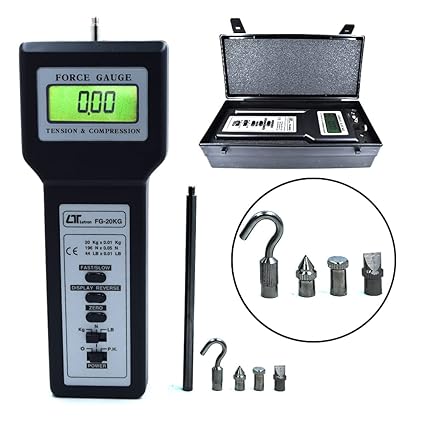

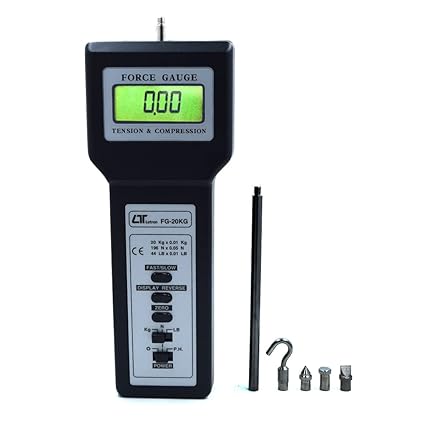

The Lutron FG-20KG Electronic Digital Force Gauge is a precision instrument designed for accurately measuring both tension and compression forces up to 20 kilograms. Its versatility and high accuracy make it suitable for various industrial applications, including quality control, research and development, and material testing.

Key Specifications:

• Measuring Range: 0 to 20 kg (44.10 lb / 196.10 Newton)
• Resolution: 0.01 kg / 0.01 lb / 0.05 Newton
• Accuracy: ±(0.5% + 2 digits) within 23°C ± 5°C
• Display: 5-digit LCD with 10 mm (0.4") digit size
• Measurement Units: Kilogram (kg), Pound (lb), Newton (N)
• Functions:
  • Tension and Compression (Push & Pull)
  • Peak Hold (captures maximum load)
  • Zero (Tare) Function for both normal and peak hold operations
• Response Time:
  • Fast Mode: 0.2 seconds
  • Slow Mode: 0.6 seconds
• Overload Capacity: Maximum 30 kg

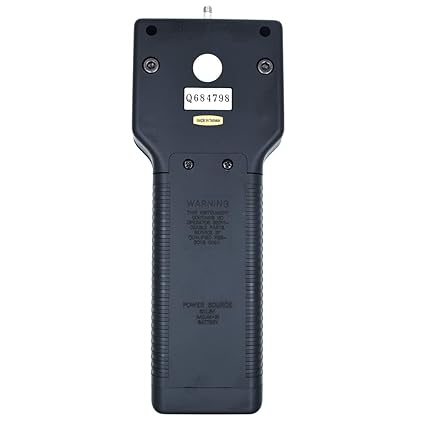

• Power Supply: 6 x 1.5V AA (UM-3) batteries
• Power Consumption: Approximately DC 24 mA
• Operating Temperature: 0 to 50°C (32 to 122°F)
• Operating Humidity: Less than 80% RH
• Dimensions: 227 mm (H) x 83 mm (W) x 39 mm (D)
• Weight: Approximately 550 grams

Features:

• Tension & Compression Measurement: Capable of measuring both push and pull forces, providing versatility for various applications.
• Multiple Measurement Units: Users can select between kilograms, pounds, and Newtons, facilitating ease of use across different measurement standards.
• Peak Hold Function: Allows capturing and displaying the maximum force applied during a test, essential for analyzing material strength and durability.
• Zero (Tare) Function: Enables resetting the display to zero before measurement, ensuring accurate readings by accounting for any pre-load or fixture weight.
• Adjustable Response Time: Offers fast and slow response settings to accommodate different testing requirements and improve measurement accuracy.
• Overload Protection: Designed to withstand forces up to 30 kg, protecting the device from potential damage due to excessive loads.

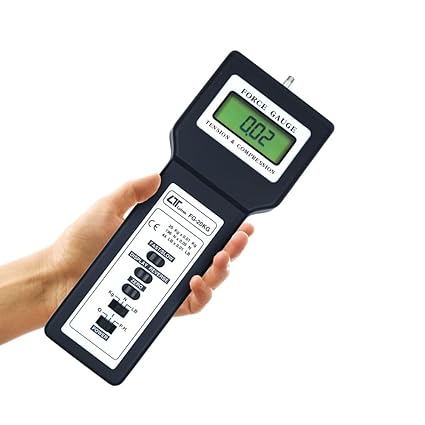

• Handheld & Stand Mounting: Ergonomically designed for handheld use and equipped with mounting holes for secure attachment to a test stand, enhancing measurement stability.
• Low Battery Indicator: Built-in indicator alerts users when the battery level is low, preventing unexpected downtime during critical measurements.

Applications:

• Quality Control: Essential for testing the strength and durability of materials, components, and finished products in manufacturing settings.
• Research & Development: Utilized in laboratories for developing and testing new materials and products, ensuring they meet required force specifications.
• Automotive Industry: Measures the force required for component assembly and disassembly, aiding in the design and testing of automotive parts.
• Medical Device Testing: Ensures medical devices can withstand specified forces, maintaining safety and compliance with industry standards.
• Packaging Industry: Assesses the strength of packaging materials to ensure they can endure forces encountered during shipping and handling.
