Real Instruments Lutron Digital Lux Meter Model LX-101A for Precise Illuminance Measurement with a Wide Range of 0 to 50,000 Lux, High Accuracy, Data Hold Function, Auto Power-Off for Use in Lighting Design, Quality Control & Environmental Monitoring

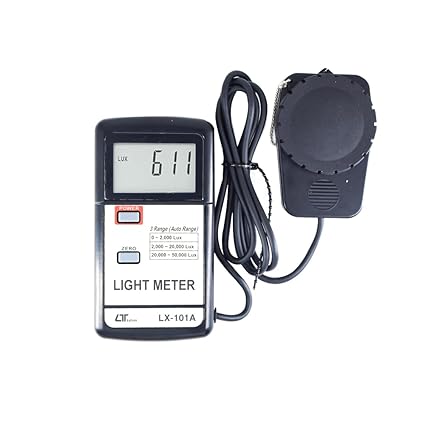

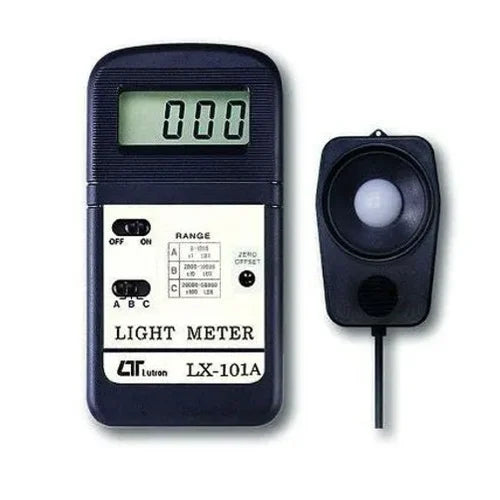

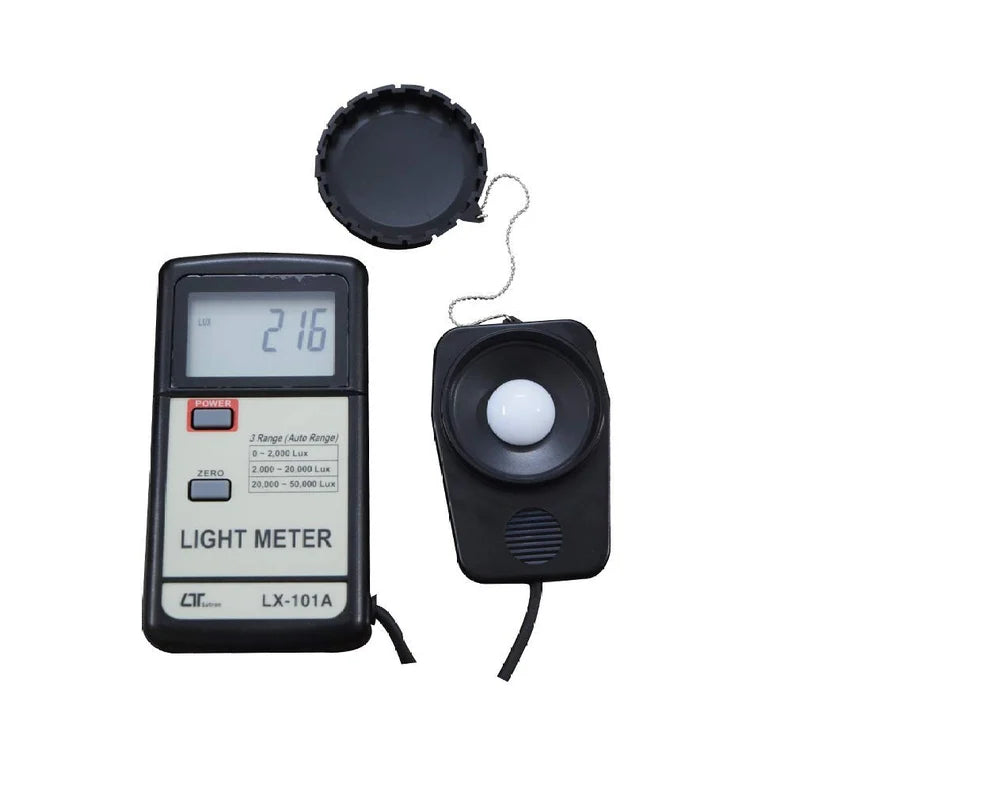

The Lutron LX-101A Digital Lux Meter is a precision instrument designed to measure illuminance levels across various applications, including industrial, commercial, and environmental settings.

Key Features:

• Measurement Range: 0 to 50,000 lux, divided into three ranges:

  • 0 to 2,000 lux
  • 2,000 to 20,000 lux
  • 20,000 to 50,000 lux

• Resolution: 1 lux for the 0 to 1,999 lux range, 10 lux for the 2,000 to 19,990 lux range, and 100 lux for the 20,000 to 50,000 lux range.

• Accuracy: ±(5% of reading + 2 digits)

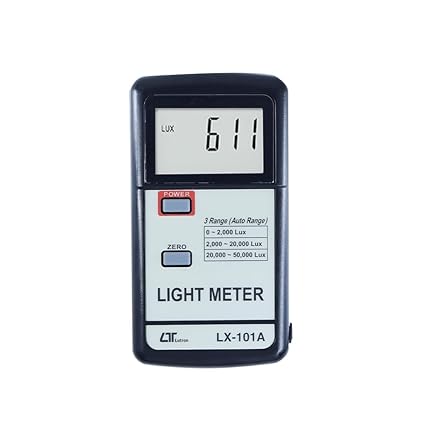

• Display: 13 mm (0.5") LCD with backlight for easy reading in low-light conditions.

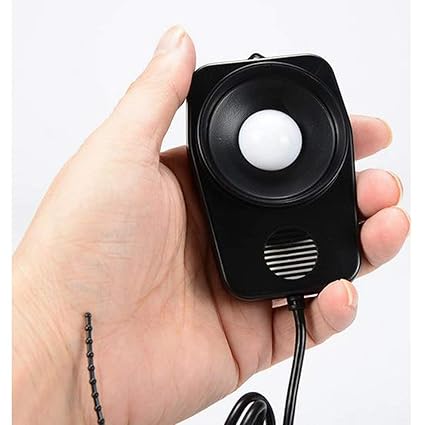

• Sensor: Exclusive photodiode with multi-color correction filters, meeting C.I.E. standards.

• Power Supply: 9V battery (006P, MN1604, or equivalent).

• Operating Temperature: 0°C to 50°C.

• Operating Humidity: Less than 80% RH.

• Dimensions: 108 x 73 x 23 mm.

• Weight: Approximately 160 grams.

Additional Features:

• Data Hold: Allows for freezing the current reading on the display.

• Auto Power Off (APO): Conserves battery life by automatically shutting down after a period of inactivity.

• Low Battery Indicator: Alerts when battery power is low.

Included Accessories:

• Instruction Manual

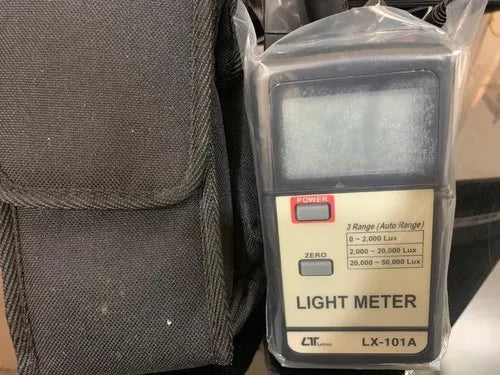

• Carrying Case

This lux meter is ideal for applications such as lighting design, quality control, and environmental monitoring, providing accurate and reliable measurements to ensure optimal lighting conditions.
