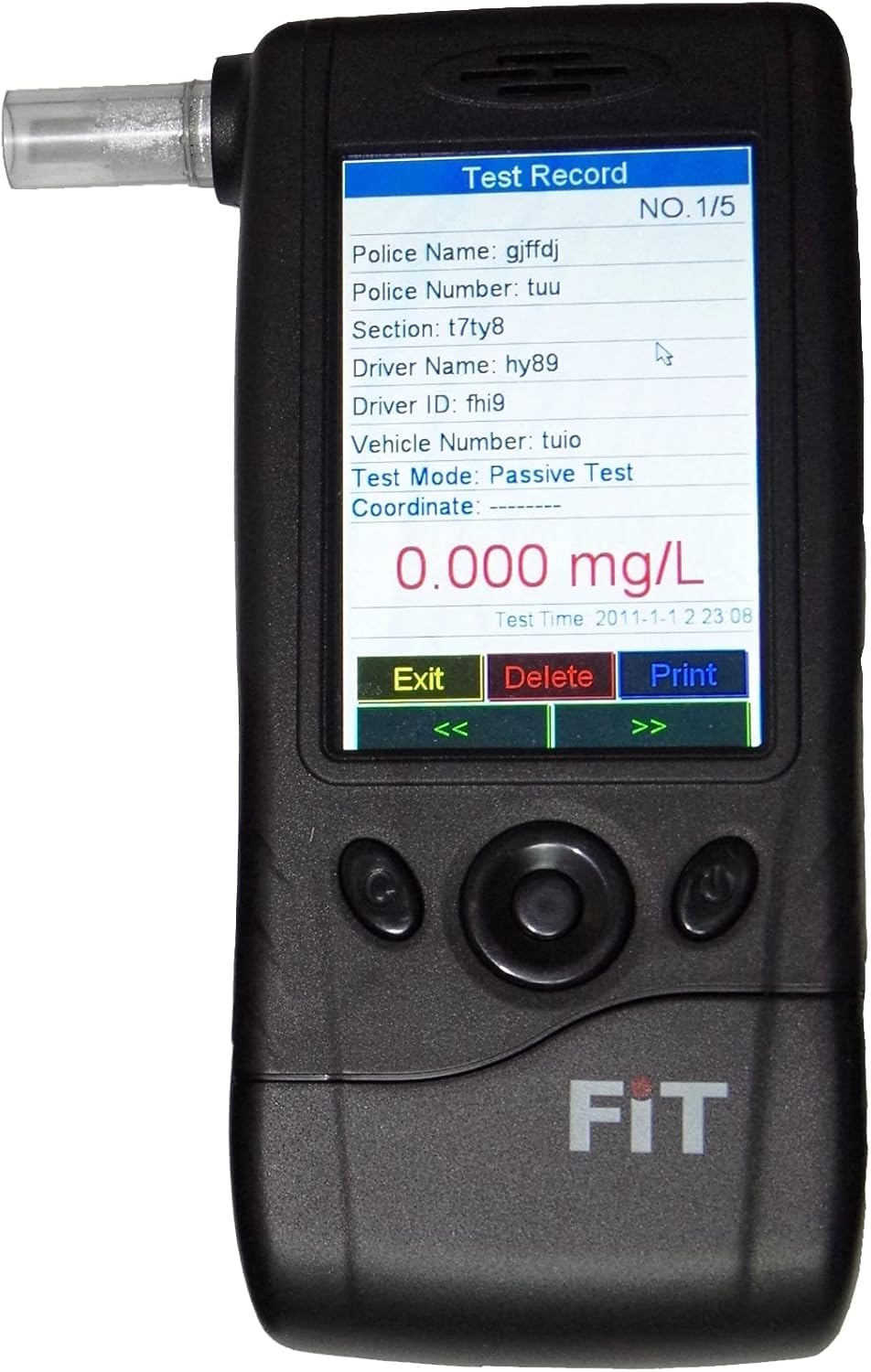

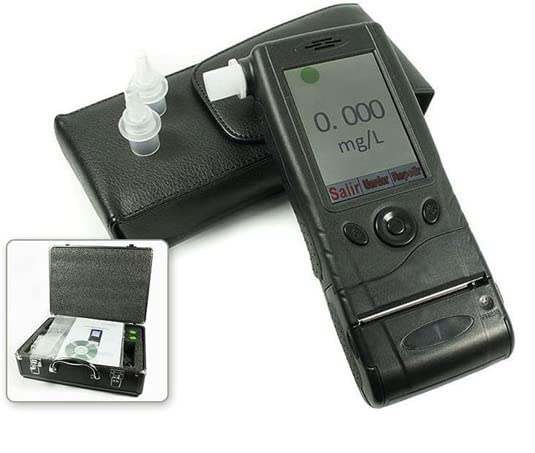

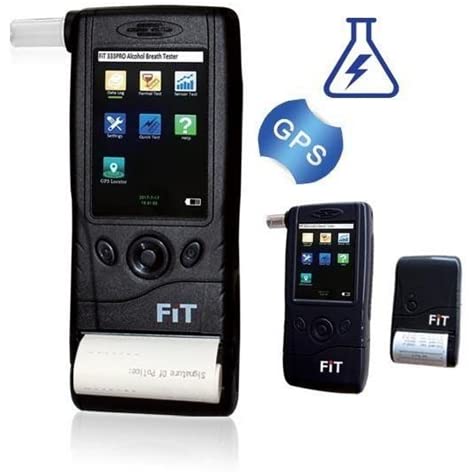

Real Instruments Professional Fuel Cell Alcohol Tester FiT333-LC Touch Panel With BT Printer, AT-17A

FiT333 series of products using high sensitive, high stability of advanced electrochemical sensor as alcohol detection components, and the use of advanced visualization of the independent research and development operation management system as the user interface, and the use of advanced large scale integrated circuit as a data processing unit, the use of advanced SMT process as the assembly process, peripherals configuration will remove the combination, wide range temperature operation, stable performance, and traffic police and other professional field is best choice.

• Electrochemical / Fuel Cell Sensor: The fuel cell is a porous disk with a thin layer of platinum black on both faces and any alcohol that comes in contact with the cell's surface is broken down chemically. For each molecule of alcohol that is broken down a given number of electrons are freed during the process. The numbers of electrons generated are in proportion to the amount of alcohol.
• Built-in Printer: Can be detached from alcohol analyzer and become a standalone wireless printer.
• Navigating key input: Navigating key input with Touch Panel
• Quick and precise analysis: Ensure a high sensitivity to alcohol and stable reliable working life.
• Easy to read: Waveform graphic display and make the analyzer more fancy and clear
• Data download: PC down via standard RS232
• Mouthpiece: Easy to replace a new mouthpiece by pressing a key
• Memories: Min50, 000 memories with full information: - Drive name, vehicle no., inspector name, test result with time stamp, date and time, location, instrument no., Calibration date, test no. etc.
• Measurement precision: Standard deviation +/–0.025 mg/L or +/–5 % of the measurement Drift: typically < 0.8 % of the measurement value/month
