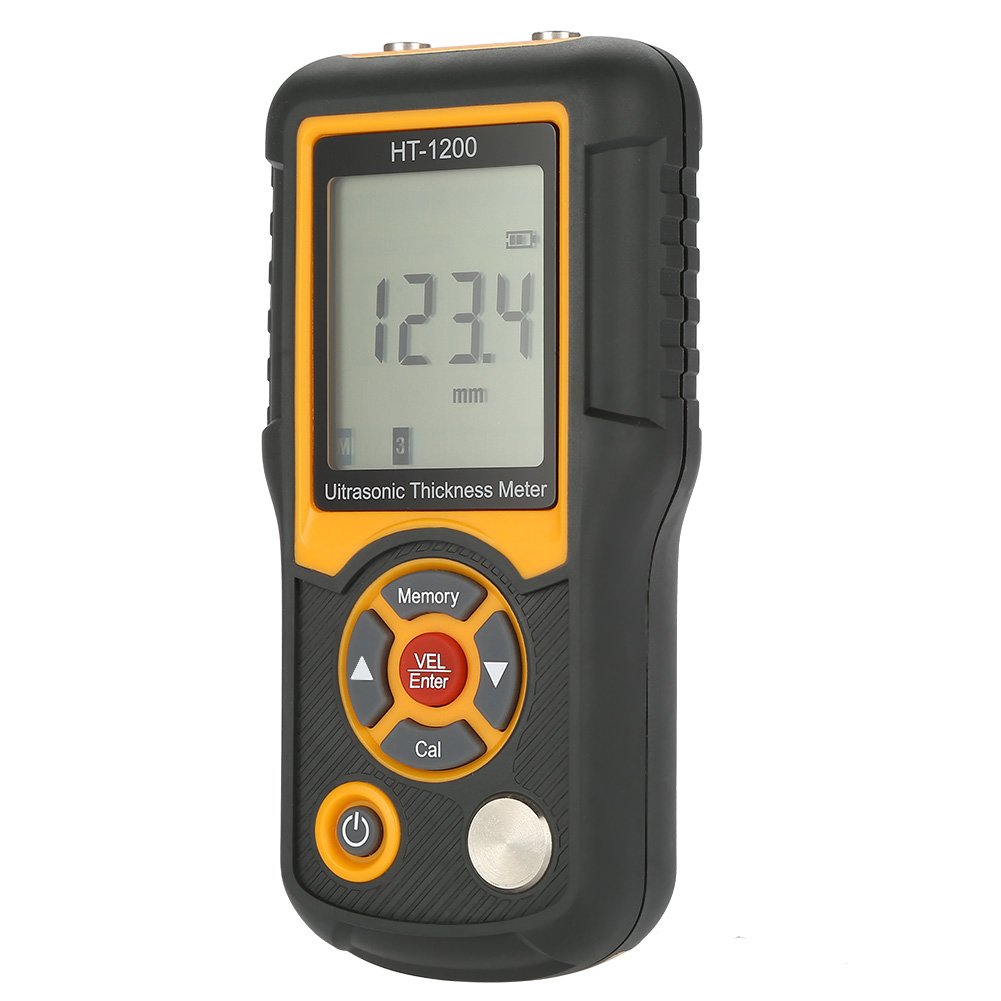

Real Instruments Ultrasonic Thickness Gauge Meter Steel Thickness Tester 1.2-225mm Range 0.1mm Resolution HT-1200

The Ultrasonic Thickness Gauge HT-1200 is a robust and advanced tool designed for non-destructive thickness measurement of a variety of materials. It is commonly used in industries such as manufacturing, shipbuilding, metallurgy, and maintenance for assessing material integrity and wear. Below are its specifications and description:

Specifications:

• Measuring Range: 1.2 mm to 300.0 mm (dependent on material and probe type)
• Measurement Accuracy: ±(0.5% thickness + 0.04 mm)
• Resolution: 0.1 mm
• Sound Velocity Range: 500 m/s to 9000 m/s (adjustable for material calibration)
• Probe Frequency: 5 MHz standard, with optional probes for specialized applications
• Display: Large LCD with adjustable backlight for clear visibility
• Material Compatibility: Metals, plastics, ceramics, composites, and glass
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Power Source: Rechargeable lithium-ion battery
• Battery Life: Up to 30 hours of continuous use
• Dimensions: 150mm x 80mm x 30mm
• Weight: Approx. 250 grams (with battery)
• Calibration: Automatic and manual calibration options
• Additional Features:
  • Coupling indicator to ensure proper contact
  • Data hold function for saving measurements
  • Min/Max thickness tracking
  • Memory storage for up to 100 readings
  • USB port for data transfer to PC
  • Low battery indicator
  • Auto power-off function

Description:

The Ultrasonic Thickness Gauge HT-1200 is an advanced device designed for precise thickness measurements in a variety of applications. With its wide measuring range of 1.2 mm to 300.0 mm, it is capable of inspecting materials like metals, plastics, ceramics, composites, and glass, making it suitable for industrial and field applications.

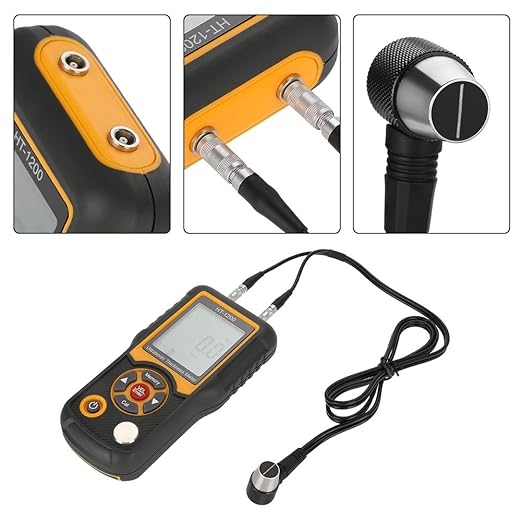

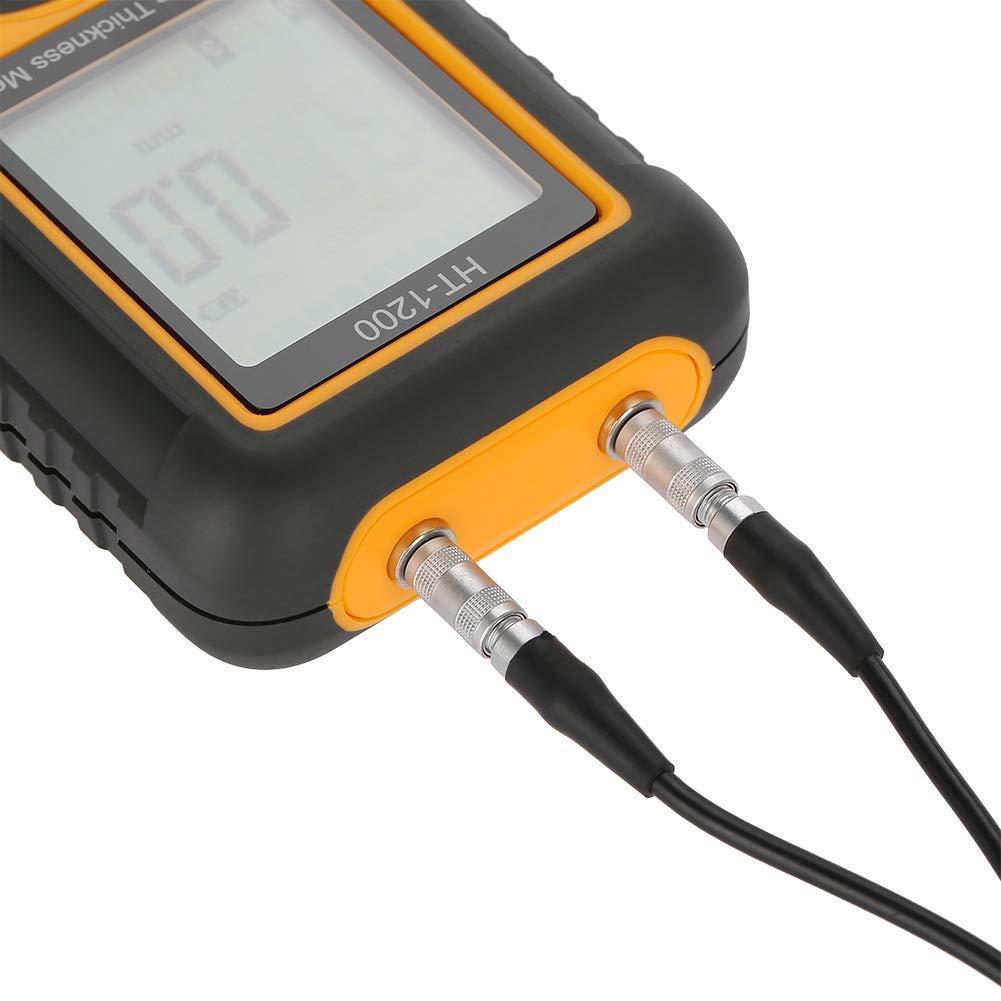

The adjustable sound velocity range allows the gauge to be calibrated for different material types, ensuring accuracy across various surfaces. Its 5 MHz probe is standard, but the device also supports optional probes for specialized tasks, such as curved surfaces or high-temperature materials.

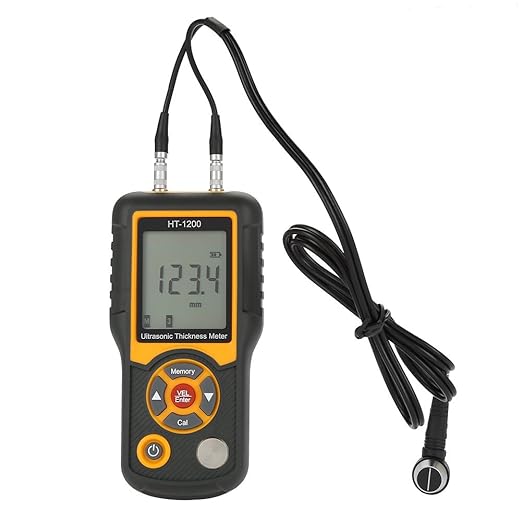

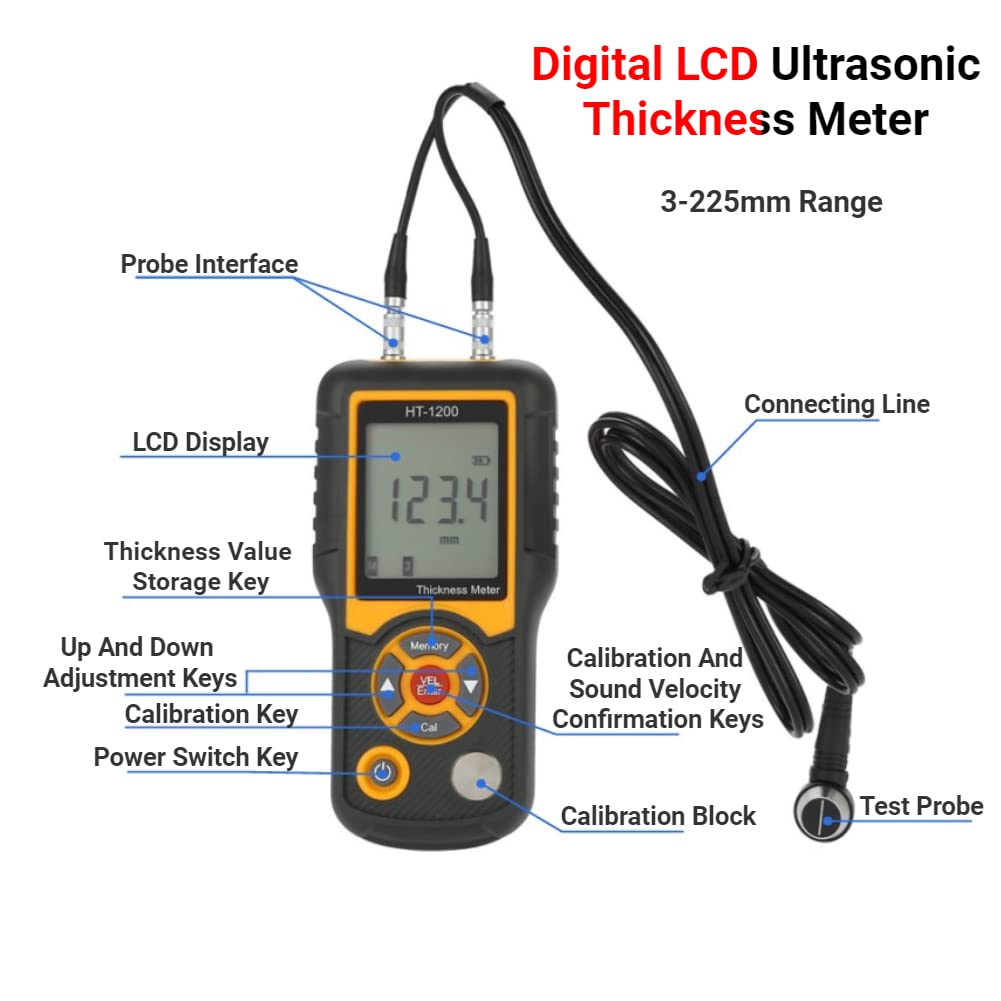

The HT-1200 features a large LCD display with backlighting, making it easy to read measurements in diverse lighting conditions. The device includes automatic and manual calibration modes for user convenience, while the coupling indicator ensures proper contact between the probe and the material for reliable readings.

A standout feature of the HT-1200 is its memory storage capacity, which allows users to save up to 100 readings for later analysis. The built-in USB port enables data transfer to a computer for detailed reporting and documentation. The gauge also offers a Min/Max thickness tracking feature to capture critical values during inspections.

With a rechargeable lithium-ion battery, the HT-1200 provides up to 30 hours of continuous operation, and the auto power-off function helps conserve battery life. Its lightweight and compact design make it portable and easy to use, even in tight spaces or challenging environments.

The HT-1200 Ultrasonic Thickness Gauge is an essential tool for professionals needing accurate and efficient material thickness measurements. Whether assessing corrosion in pipelines, measuring material wear, or performing quality control checks, this gauge delivers reliable performance in demanding conditions.
