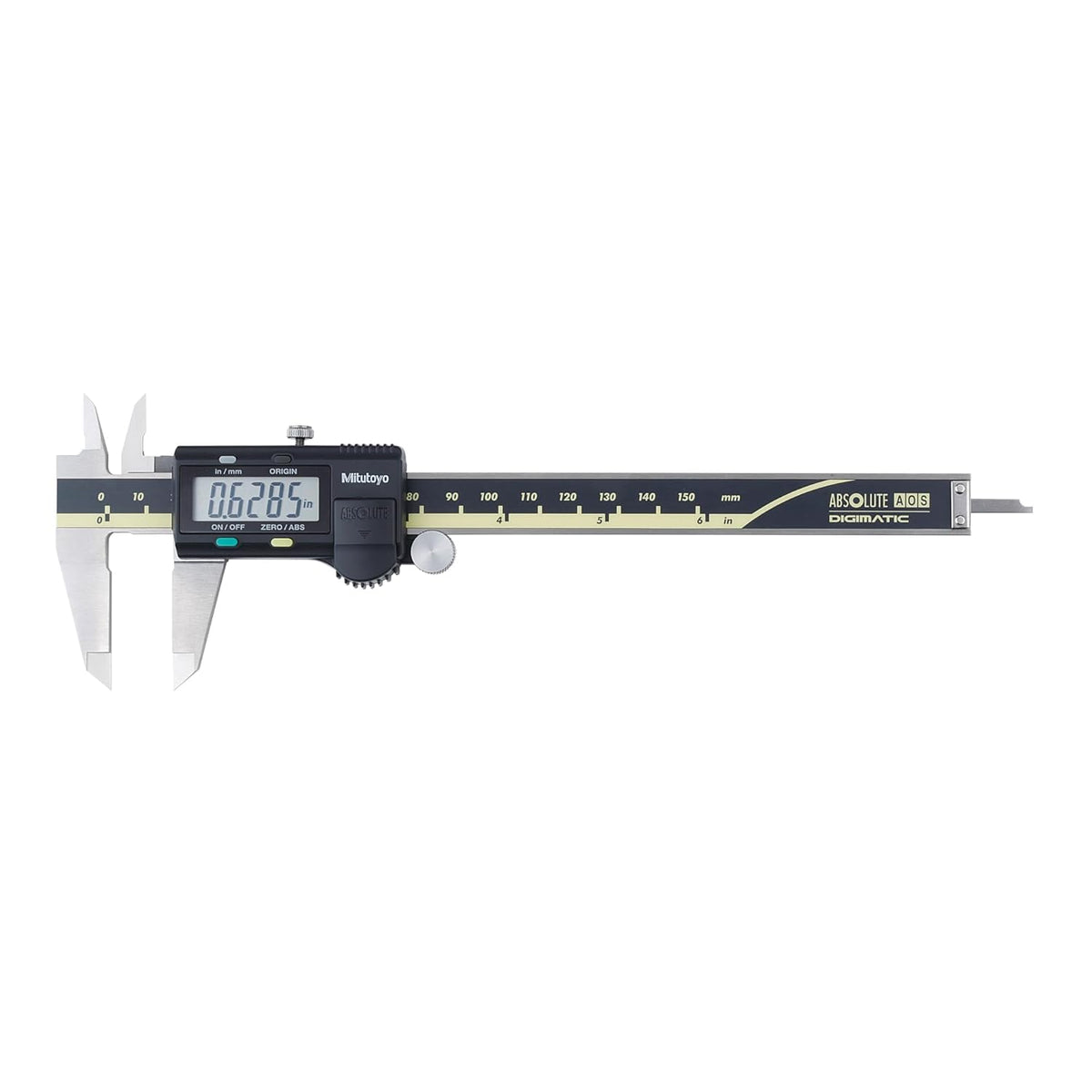

Real Intruments Mitutoyo 500-196-20 Digital Vernier Caliper 150mm/6 inch with LCD Display, Stainless Steel Construction, Dual Metric & Imperial Measurement System for Accurate Internal, External, Depth & Step Measurements, Advanced Absolute Scale, VC-09

The Mitutoyo 6-Inch Digital Vernier Caliper is a high-precision measuring tool designed for industrial, mechanical, and scientific applications. Featuring Mitutoyo’s Absolute Scale Technology, this caliper eliminates the need to reset zero after turning it on, ensuring reliable and consistent measurements. The large LCD display provides easy readability, while the stainless steel construction offers durability and corrosion resistance. With the ability to measure internal, external, depth, and step dimensions, this 6-inch (150 mm) digital caliper is perfect for professionals and hobbyists who require high accuracy and reliability.

Key Features:

✔ Brand: Mitutoyo – A globally trusted leader in precision measurement instruments.
✔ Measurement Range: 0 to 6 inches (0 to 150 mm).
✔ Display: Large LCD screen with high visibility.
✔ Resolution:

• Metric: 0.01 mm
• Imperial: 0.0005 inch (1/128 inch)
  ✔ Accuracy: ±0.02 mm (±0.001 inch).
  ✔ Absolute Scale Technology: No need to reset zero after turning on the caliper.
  ✔ Measuring Functions:
• External Measurements – Measures outside dimensions of objects.
• Internal Measurements – Measures inside diameters and gaps.
• Depth Measurements – Measures the depth of holes, slots, or recesses.
• Step Measurements – Measures step heights or distances between surfaces.
  ✔ Dual Measurement Modes: Switch between metric (mm) and imperial (inch) units.
  ✔ Zero Setting Function: Allows resetting of measurements at any position.
  ✔ Data Output Port: Compatible with Mitutoyo’s SPC (Statistical Process Control) system for digital data transfer.
  ✔ Power Source: SR44 battery with extended life and auto shut-off feature.
  ✔ Material: Hardened stainless steel for durability and corrosion resistance.
  ✔ Locking Screw: Secures the sliding scale for precise readings.
  ✔ Smooth Sliding Mechanism: Ensures easy and accurate operation.

Specifications:

🔹 Measurement Range: 0 – 6 inches (0 – 150 mm)
🔹 Resolution: 0.01 mm / 0.0005 inch
🔹 Accuracy: ±0.02 mm (±0.001 inch)
🔹 Power Supply: SR44 silver oxide battery (lasts approximately 3.5 years with normal use)
🔹 Data Output: SPC connectivity for digital data transfer (cable sold separately)
🔹 Display Type: LCD digital screen for easy readability
🔹 Material: Stainless steel with corrosion-resistant finish
🔹 Automatic Shut-Off: Extends battery life when idle
🔹 Operating Temperature: 5°C - 40°C (41°F - 104°F)
🔹 Weight: Approx. 150g – 200g

Applications:

✅ Industrial and Mechanical Engineering: Used in precision manufacturing and metalworking.
✅ Quality Control & Inspection: Ensures accurate measurements in laboratories and production environments.
✅ Aerospace & Engineering: Ideal for measuring high-precision components.
✅ Scientific Research: Suitable for laboratory measurements with extreme accuracy.
✅ DIY & Professional Use: Perfect for machinists, technicians, and hobbyists who need precise measurements.

Advantages of the Mitutoyo 6-Inch Digital Vernier Caliper:

✔ Superior Accuracy: Measures with precision up to 0.01 mm (0.0005 inch).
✔ Durable Stainless Steel Construction: Built for long-lasting performance and resistance to corrosion.
✔ Easy-to-Read LCD Display: Large, high-contrast screen for clear readings.
✔ Automatic Power Off: Extends battery life when not in use.
✔ Absolute Scale Technology: Retains zero point even when turned off.
✔ Data Output Compatibility: Connects to Mitutoyo SPC systems for digital data logging.

The Mitutoyo 6-Inch Digital Vernier Caliper is a top-tier measuring tool for professionals who demand accuracy, reliability, and ease of use.
